VETUS Fuel Tank Connection Kit Filler 51mm Supply/Return

#9118280
Warranty Badge - 12-Months
Ships Nov 28 - Jan 9

Seen a lower price? Ask us to beat it

Product Name Price Qty
VETUS Fuel Tank Connection Kit Filler 51mm Supply/Return 8mm

Ships Nov 28 - Jan 9

NOW $359.00
VETUS Fuel Tank Connection Kit Filler 51mm Supply/Return 10mm

Ships Nov 28 - Jan 9

NOW $369.00
VETUS Fuel Tank Connection Kit Filler 51mm Supply/Return 15mm

Ships Nov 28 - Jan 9

NOW $399.00
Add Items to Cart
No payments or interest for 12 months*

💬 Report incorrect product information

VETUS Fuel Tank Connection Kit Filler 51mm Supply/Return

Click on the image above to view full picture

More Views

Details

Details

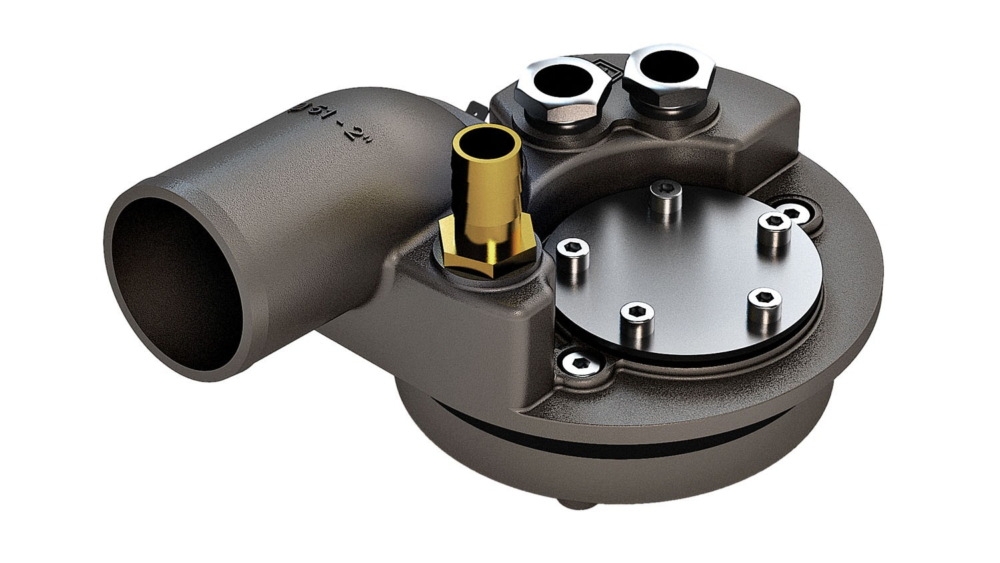

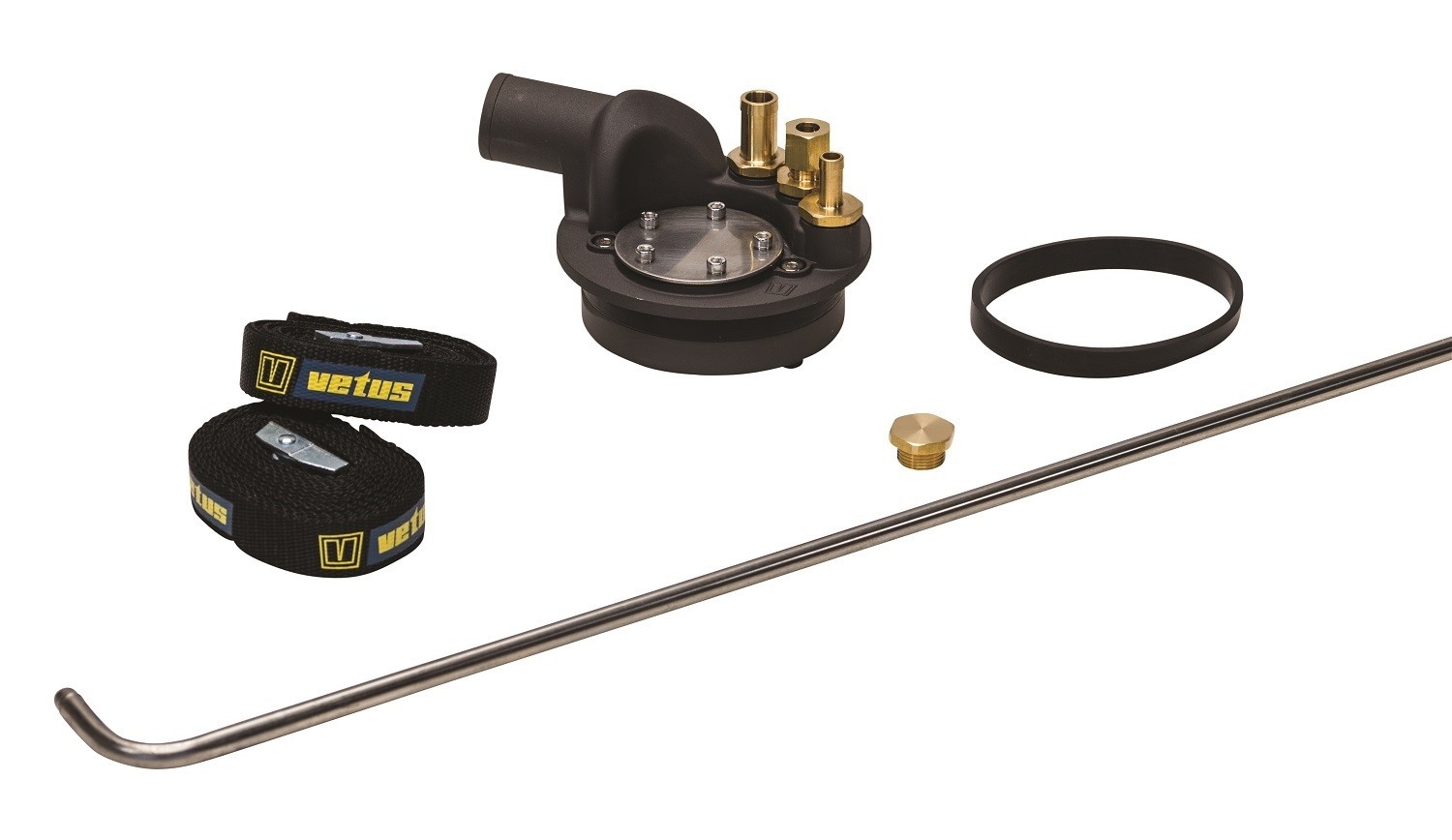

This connection kit has an anodized, salt water resistant aluminium lid with a counter flange and arubber seal which is tightened very easily with just3 bolts compressing the rubber seal to ensure a perfect seal. The set contains all the required connections, only 1 single hole with a diameter of 114 mm needs to be cut in the top of the fuel tank. This connection kit is suitable for plastic, metal or GRP diesel or petrol fuel tanks. The following connections are supplied
  • Hose connection for filling diameter 38 or 51 mm and a 16 mm tank ventilation connection
  • Fuel suction pipe according to model selected
  • diameter8 mm, max. tank depth 440 mm
  • diameter10 mm, max. tank depth 850 mm
  • diameter15mm, max. tank depth 970 mm
  • Fuel return for diameter8, 10, 15 mm hose
  • Mounting flange for tank level sensors (connection is suitable for sensors with a 5-hole SAE flange)
  • Terminal tag 6,3 mm for ground wire
  • 2 Mounting straps to secure tank
  • Specifications:
Fuel suction pipe (mm) 8
Fuel return (mm) 8
Suitable for Diesel
Terminal tag for earth wire (mm) 6,3
Fuel filling hose diameter (mm) 51
Hose connector for breather line (mm) 16
