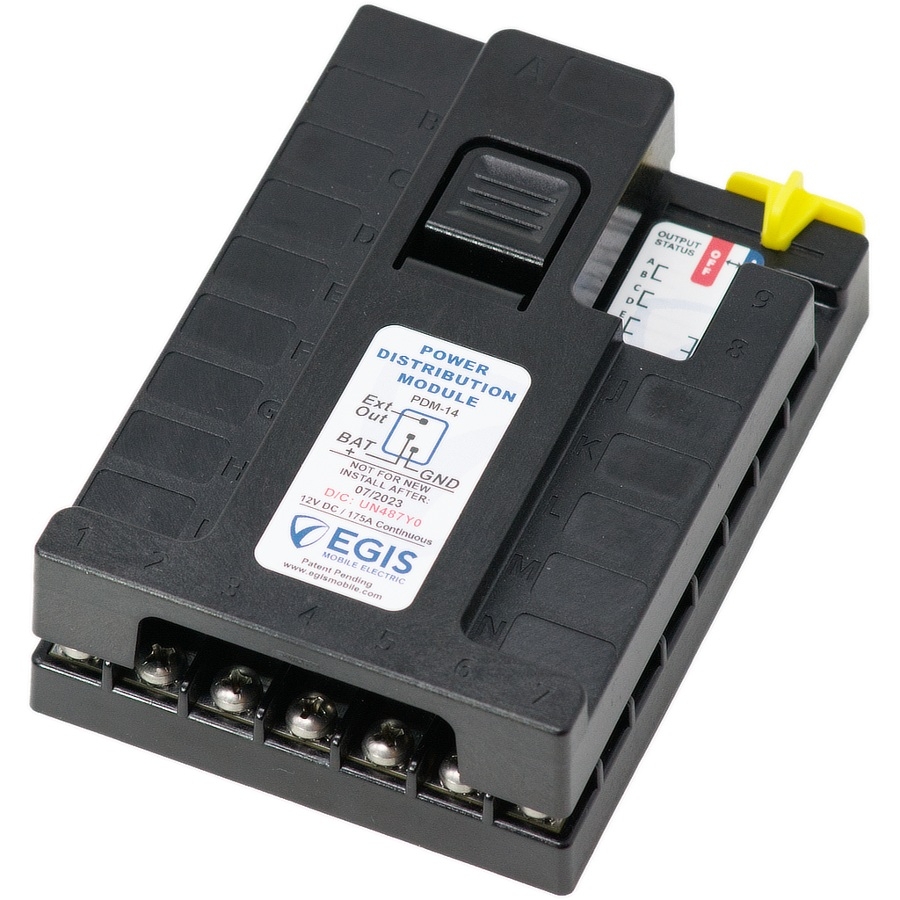

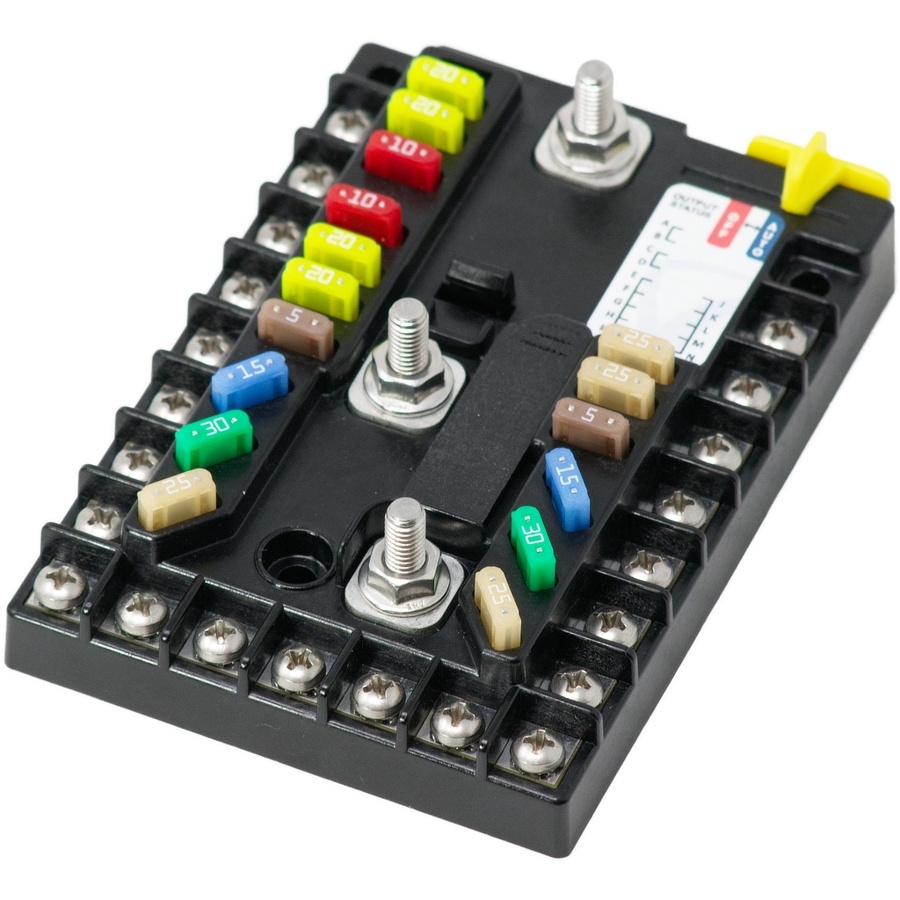

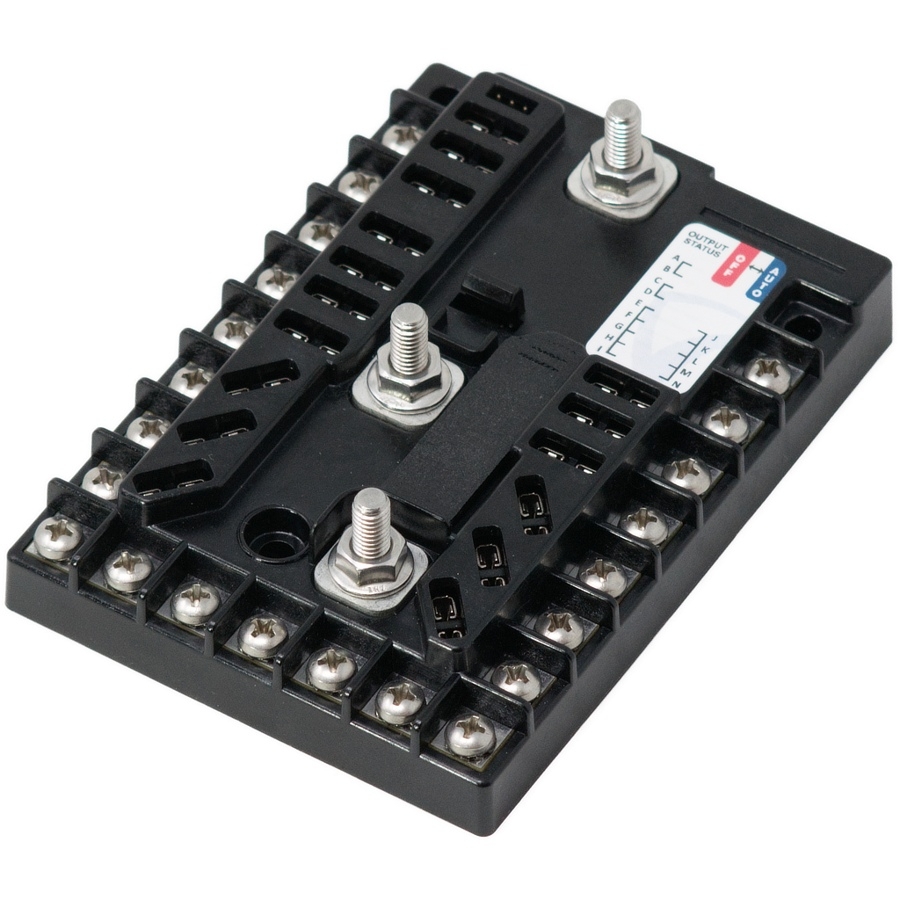

Egis Mobile Electric PDM 14 Circuit and Ground with Kill Switch

Click on the image above to view full picture

More Views

Details

Details

Compact solution combines intelligent battery protection, power switching, circuit protection, ground return buss and optional manual override switch. Reduce install space and total installed cost with four (4) Separate Functions in One Product. The three (3) High-Amp (1-45A) outputs allow protection of all circuits with one solution. Three Output Groups Independently Set to 24/7, Ignition Switched or Time Delay. Expandable up to 31 fused outputs with RT or CT series fuse blocks.
Specifications:
  • Brand: Egis Mobile Electric
  • Country of Origin: USA
  • RoHS Compliant: Yes
  • Voltage: 12 VDC
  • Waterproof Rating: IP20
  • Max Current: 175 A
  • REACH Compliant: Yes
  • Number Of Circuits: 14
  • Connection Type: Screw Terminals
  • Ignition Protected: No
  • LED Indicators: Yes
  • Ground Return: Yes
  • Operating Temperature: Up to 85 degreesC / 185 degrees F

Product Data Sheet
