IP65 Sealed ABS Enclosures

#9032380
Warranty Badge - 12-Months
Ships Dec 11 - Dec 21

Seen a lower price? Ask us to beat it

Product Name Price Qty
Sealed ABS Enclosure - 115 x 65 x 40mm

Ships Dec 11 - Dec 21

NOW $17.50

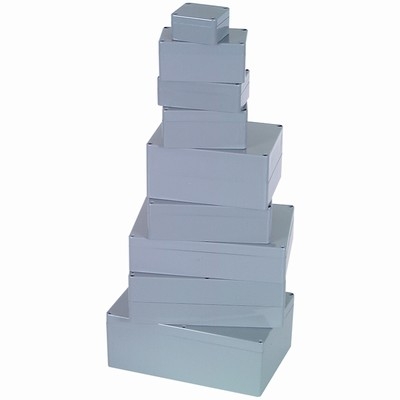

Sealed ABS Enclosure - 64 x 58 x 35mm

Ships Dec 11 - Dec 21

NOW $9.99
Sealed ABS Enclosure - 115 x 65 x 55mm

Ships Dec 11 - Dec 21

NOW $19.50
Sealed ABS Enclosure - 115 x 90 x 55mm

Ships Dec 11 - Dec 21

NOW $22.99
Sealed ABS Enclosure - 171 x 121 x 55mm

Ships Dec 11 - Dec 21

NOW $31.99
Sealed ABS Enclosure - 171 x 121 x 80mm

Ships Dec 11 - Dec 21

NOW $32.99
Sealed ABS Enclosure - 222 x 146 x 55mm

Ships Dec 11 - Dec 21

NOW $37.99
Sealed ABS Enclosure - 222 x 146 x 75mm

Ships Dec 11 - Dec 21

NOW $42.99
Sealed ABS Enclosure - 240 x 160 x 90mm

Ships Dec 11 - Dec 21

NOW $57.99
Add Items to Cart
No payments or interest for 12 months*

💬 Report incorrect product information

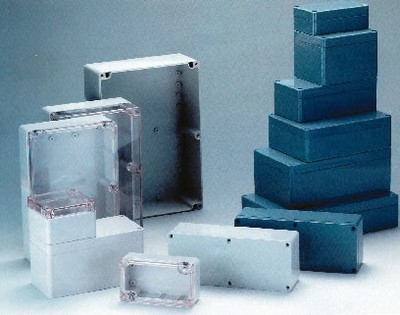

IP65 Sealed ABS Enclosures

Click on the image above to view full picture

Details

Details

IP65 Sealed ABS Enclosures Specifications:
  • Made with ABS Material
  • Moulded in dark grey
  • Operating temperature: minus 20oC to 100oC
  • Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
  • The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
  • Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
  • Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
  • Designed to IP65 of IEC529 and NEMS 4 (dust and hoseproof)
  • Internal guide slots for mounting PCB assemblies vertically
Some of our product deals are strictly limited - once they're gone, they're gone! Secure yourself this amazing deal while stocks last...by clicking the Add to Order button above.
