Smarter, brighter and tougher than ever!
The new generation

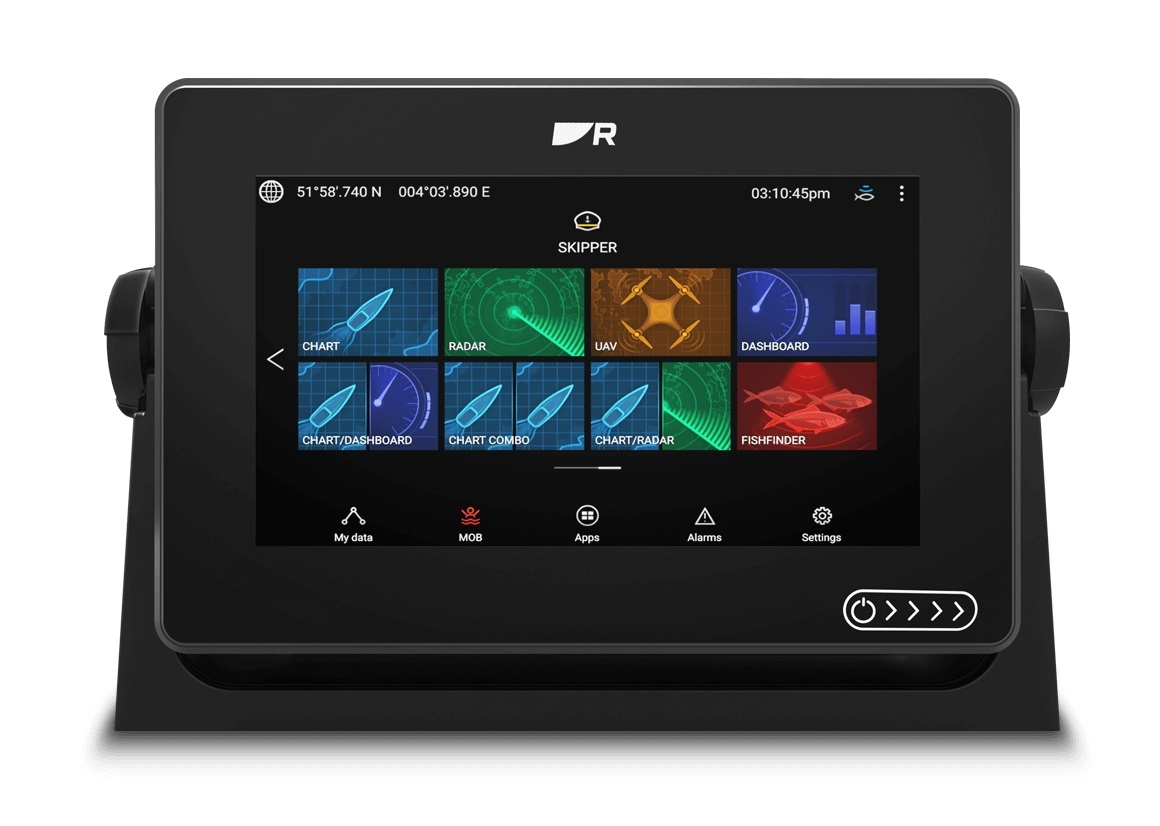

Raymarine Axiom Plus 7RV Multifunction Display is performance-tuned with enhanced capabilities and features to deliver excellent quality images of the ocean depths. Optimised for speed, the Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision 3D sonar. Designed for speed, performance and future expansion, the Raymarine Axiom Plus is now smarter, brighter and tougher than ever.
Package Includes:

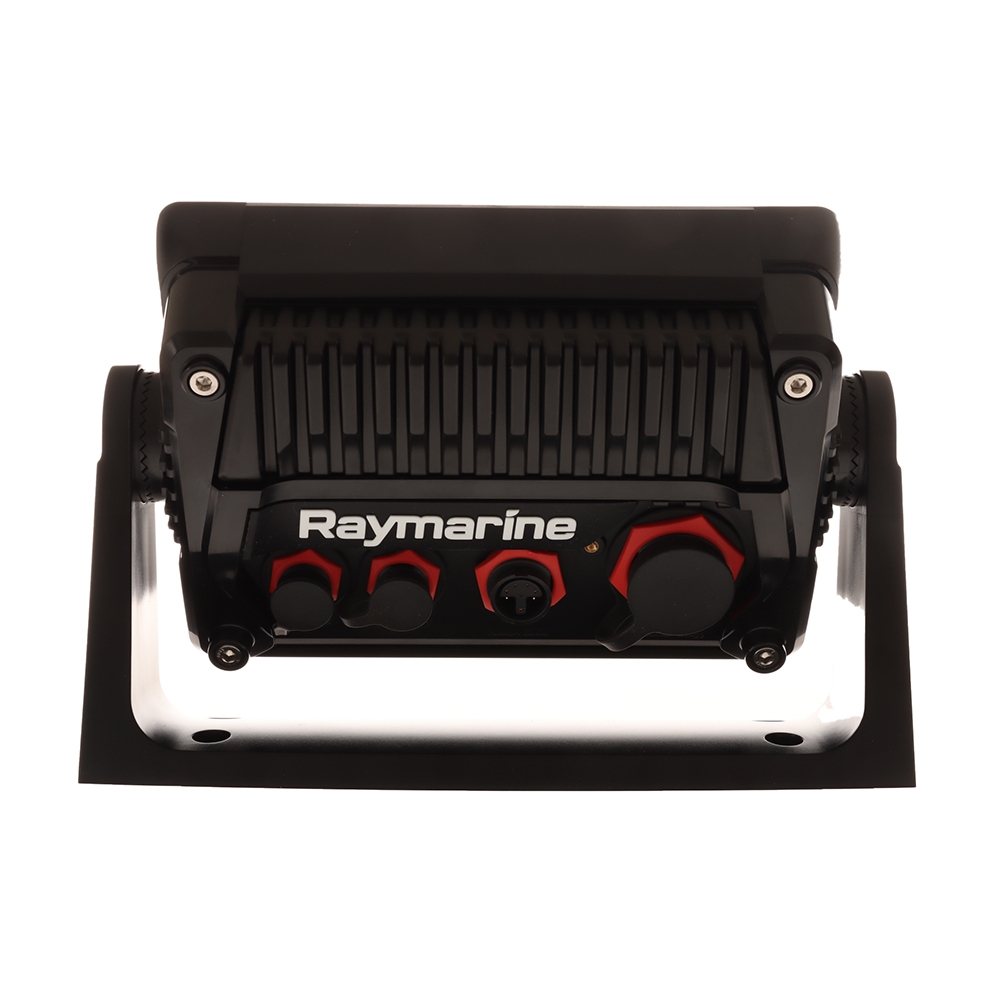

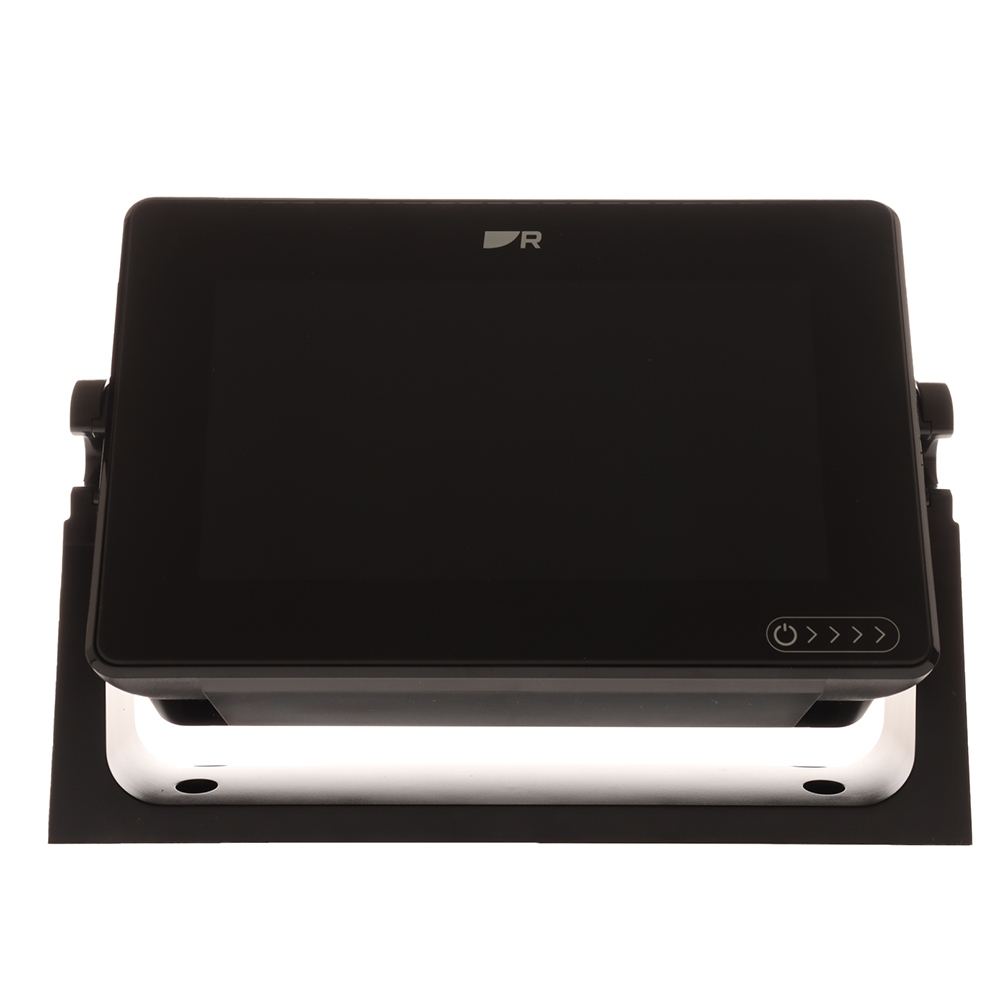

- Multifunction display (supplied with adaptor fitted)

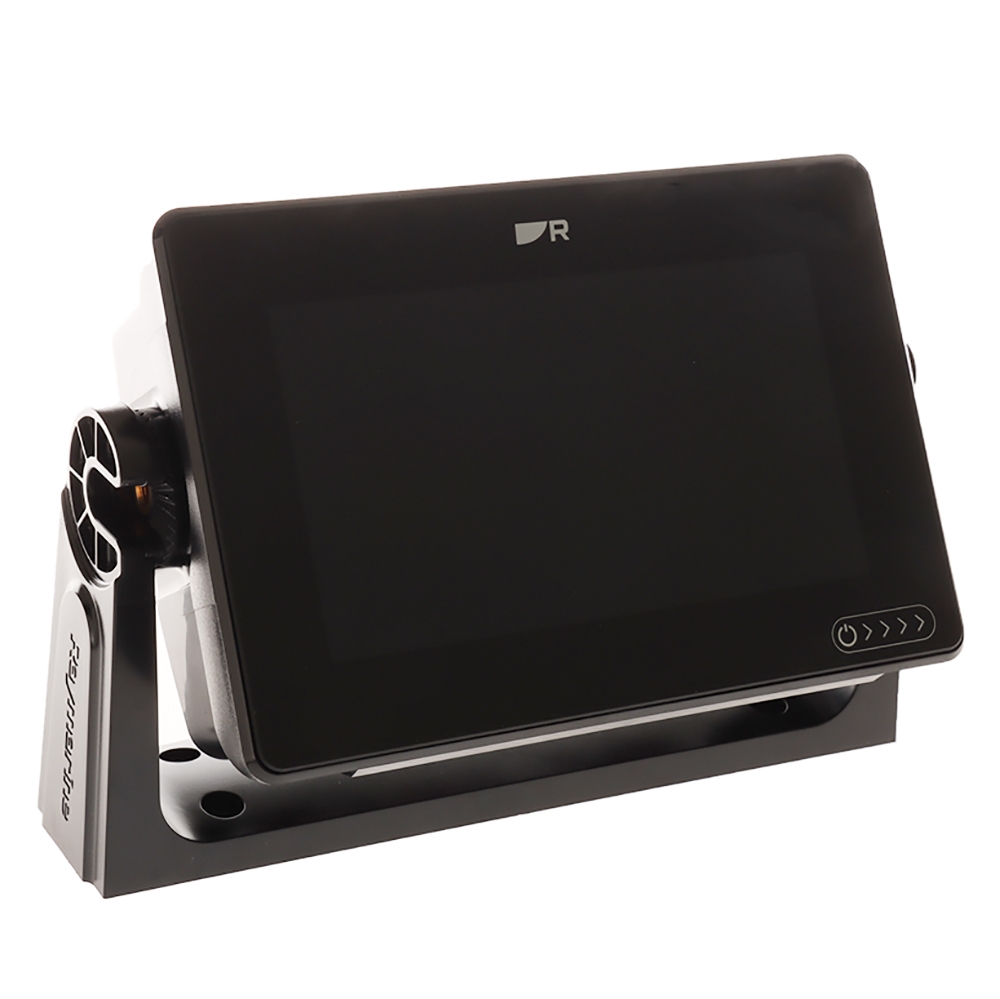

- Trunnion bracket
- Trunnion knobs x 2
- Suncover - trunnion mount
- Panel mount gasket for surface / flush mounting
- M5x58 threaded studs x 4
- M5 thumb nuts x 4
- Documentation pack
- DeviceNet to SeaTalkng adaptor cable 120mm (4.7in)
- Power/NMEA 2000 cable (with 1.5m (4.92ft) power lead and 0.5m (1.64ft) NMEA2000 lead)
- Raymarine RealVision 3D RV-100 Transom Mount Transducer with associated fittings, Part number A80464

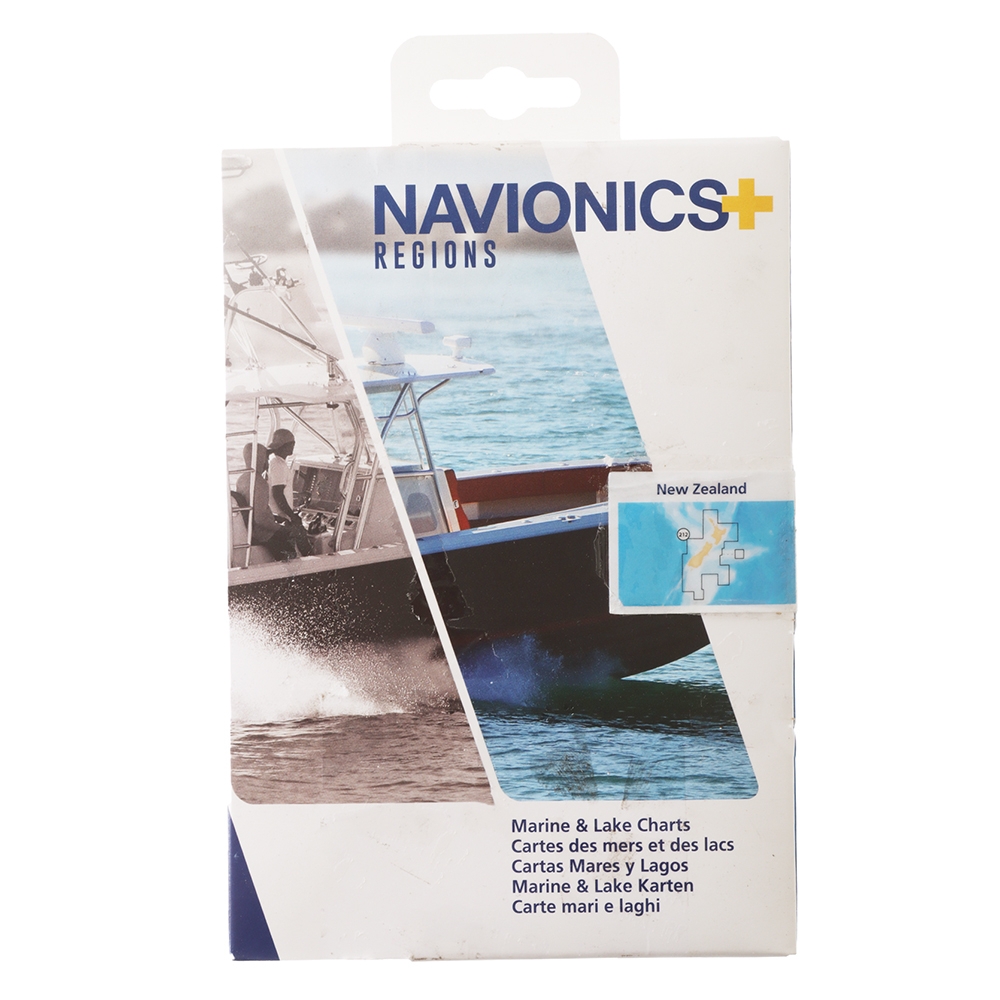

- Navionics Plus NZ Chart Card
The
Raymarine Axiom Plus 7RV comes standard with RealVision 3D Sonar which not only offers High CHIRP Sonar, DownVision and SideVision but it offers RealVision 3D sonar with GPS Track feature which uses precision GPS to construct the most accurate 3D model of the underwater world in real-time.
The Axiom Plus is also expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.
This incredible package comes complete with a 7 inch all-weather, multifunction display, a RealVision 3D RV-100 transducer and a Navionics Plus NZ chart card. Sweet as!
Raymarine Axiom Plus 7RV Multifunction Display Features:
- Powerful quad-core processor
- Seamlessly redraw charts
- Navigate with augmented reality
- RealVision 3D sonar with GPS track feature uses GPS to construct the most accurate 3D model of the ocean depths in real time
- High CHIRP, DownVision, SideVision
- 7 inch all weather Hydrotough display
- Nano-coated, impact-resistant glass screen
- Repels water, oil and smudges
- Up to 25 percent brighter
- IPS display technology for wider viewing angles
- Sharp contrast
- Twice the resolution of traditional displays
- Expandable - supports full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot
- Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones
- Comes complete with RealVision 3D RV-100 transducer and Navionics Plus NZ chart card
Raymarine Axiom Plus 7RV Multifunction Display Specifications:
General
- Display size: 7 inch high density IPS
- Display resolution: 1024 x 600 (WSVGA)
- Display type: Multitouch with HydroTough rugged hydrophobic coating
- Brightness: 1,500 nits
- Viewing angle: 85deg Top, Bottom, Left, Right
- Dimensions (W x H x D): 210 x 142 x 77mm / 7.92 x 5.24 x 3.0in (excluding trunnion and cables)
- Weight: 3lbs / 1.36kg
- Mounting options: Surface, flush, trunnion, (front installation bracket available)
- Waterproof rating: IPX6 / IPX7
- Operating temperature range: -25deg C to +50deg C (-13deg F to +131deg F)
- Storage temperature range: -30deg C to +70deg C (-22deg F to +158deg F)
Power
- Voltage: 12V DC (8V to 16V DC)
- Power consumption: 7.34 W, RV sonar 9.84 W
Sensors
- GNSS/GPS: Built-in GNSS receiver, GPS/GLONASS/Galileo/Beidou - 10Hz 28 channel, *future software required
- Sonar type (Built-in): RV version equipped with high CHIRP, DownVision, SideVision and RealVision 3D
- Sonar connections: 25pin RealVision type connector
- Sonar depth: High CHIRP sonar = 900 feet (274m), DownVision = 600 feet (183m), SideVision = 300 feet (91m), RealVision 3D = 300 feet (91m)
- External sonar option: Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet
- Radar: Yes - Quantum, Digital, HD colour / Super HD colour and Magnum radars
- AIS: Yes - NMEA2000 compatible
- Autopilot control: Yes - Evolution autopilot
- Thermal night vision: Yes - FLIR AX8, M232, M300 series, M400, M500
- Video/Camera: Compatible with CAM210IP, CAM220IP (Up to 10IP network cameras)
- Weather: GRIB view - free GRIB viewer and Theyr Ltd subscription / SiriusXM - N. America only
- Audio: NMEA2000 / bluetooth speaker controls / optional SiriusXM audio
- Digital switching: Yes - Empirbus and C-Zone compatible
- Remote control: Yes optional RMK-10 (A80438)
Networking
- Ethernet: 1 x 10/100 Mbit/s network (RayNet)
- NMEA0183: No
- NMEA2000: NMEA2000 via DeviceNet port, SeaTalkng compatible using an optional adapter
- SeaTalkNG: Requires DeviceNet female (F) adaptor cable (A06079 120mm adaptor included in box)
- USB: 1 x USB microAB
- Wi-Fi: WiFi - 802.11 a/b/g/n
- Bluetooth: Bluetooth v4.0
Navigation
- Cartography: Lighthouse charts, Navionics, and C-MAP compatible
- Waypoint/routes/tracks: 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
Memory
- Internal memory: 16 GB solid state
- External memory: 1x MicroSD card slot
- Languages: 24
- Conformances: NMEA 2000 certification / Europe: 1999/5/EC / Australia and New Zealand: C-Tick, compliance level 2 / FCC 47CFR part 15 / Industry Canada RSS210
