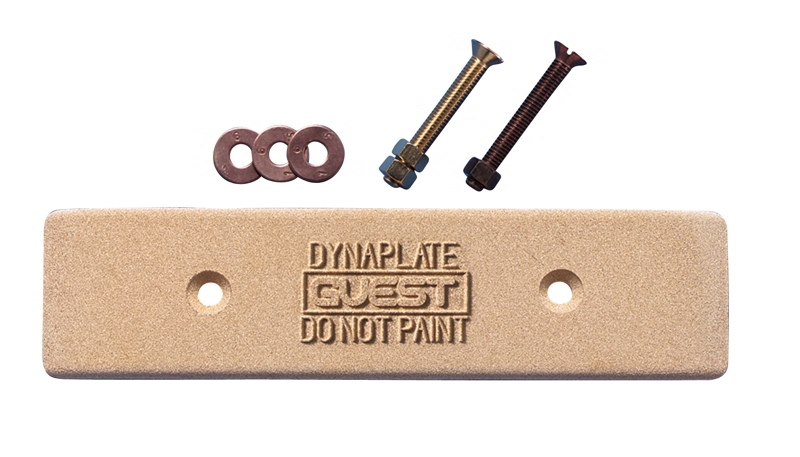

Giant Dynaplate 12 x 3 x 1/2inch

Create a proper bonding and grounding system using the Giant Dynaplate 12 x 3 x 1/2inch grounding shoes to reduce the risk of serious hull damage and electrical shock associated with boat lightning strikes by providing a direct, controlled high-capacity path for lightning dissipation. SSB and AM radio transmitters rely upon a proper size ground to operate to their designed capacity. A Dynaplate grounding shoe helps provide a large solid surface (the water surrounding the boat) to "push off" from. This is technically known as "counterpoise" and is the other necessary half of the antenna system. The bronze Dynaplate material also serves as the next sacrificial metal on the galvanic scale after the zincs, providing another buffer against corrosion of stainless steel parts.

Giant Dynaplate 12 x 3 x 1/2inch Features:

• Easy to clean design (using wire brush)

• Conforms to ABYC standards

• Mounting hardware included

• Gold plated mounting bolt

• Bronze mounting nuts

• Copper washers
