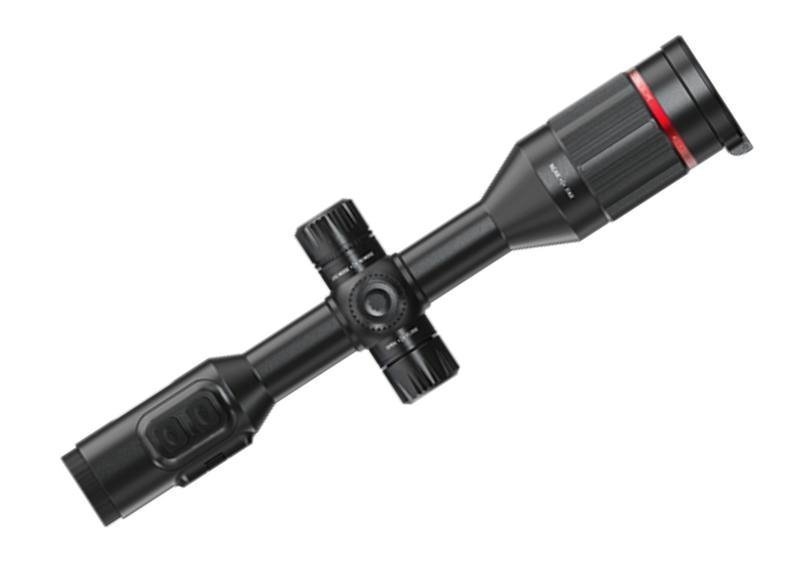

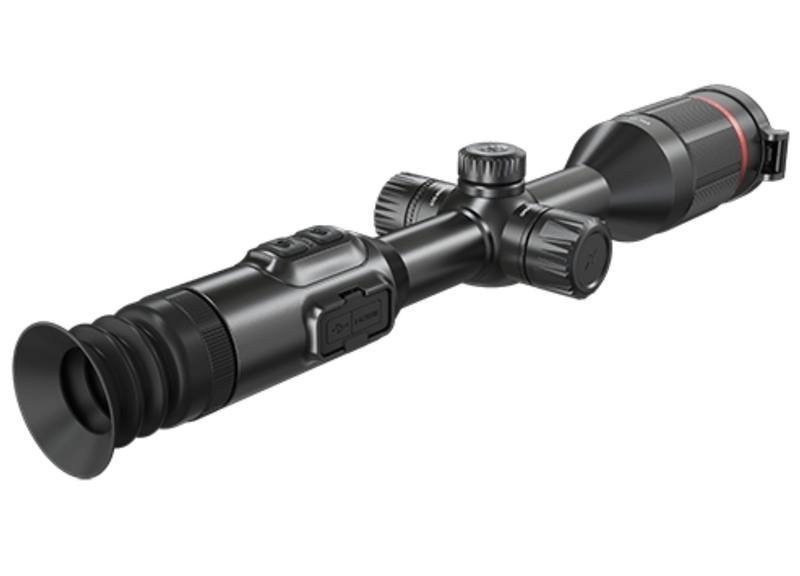

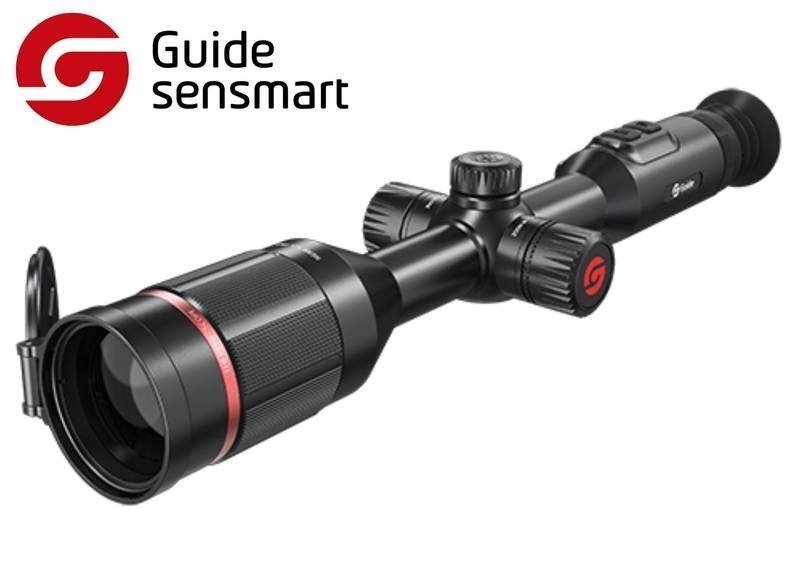

Guide Infrared TU431 Gen2 Thermal Scope 35mm

The TU Gen2 Series is equipped with a high-sensitivity thermal sensor of 12m and a 14401080 HD AMOLED display. Paired with the robust PureIR image algorithm, it provides users with a more vivid and detailed visual experience. The TU Gen2 Series has undergone meticulous optimization in its detailed design, elevating user-friendly operation. Furthermore, the battery life has seen a substantial extension, resulting in a 20% increase in duration.

High Definition Thermal Sensor
High-quality thermal imaging with 400300@12m resolution with clear distinctions allows for improved recognition of animals, their body parts, and even minute elements such as branches, leaves, grass, and the landscape.

14401080 AMOLED Display
The heat signature captured by the thermal image can be shown on the display using the picture-in-picture (PIP) feature, significantly enhancing the comfort of observation.

PureIR Adaptive Dynamic Filtering Algorithm (PureIR)
The PureIR combining 3DNR and PureIR adaptive filtering algorithms delivers high-sensitivity thermal images, reducing image distortion and enriching detail even for distant targets.

Infrared detector
 Detector type: Uncooled VOx Infrared
 Detector resolution and pitch: 400 300, 12 m
 Spectral range: 8 to 14 m
 NETD: 30 mk
 Frame rate: 50 Hz

Lens
Focal length: 35 mm; F1.0
Focus: Manual
Field of View: 7.8 5.9
Optical zoom: 2.65x
Digital zoom: 1x approx. 4x

Display
Display type: 0.39' AMOLED
Resolution: 1440 x 1080
Eyepiece: Exit pupil distance 48mm; Diopter: +/- 4 to; Zoom: 14x
Video output: Digital video

Power
Battery type: Single Replaceable 18650 battery
Battery life: 12 hours

Interface
USB: Type C
Video Interface: Micro HDMI
Tube Diameter: 30mm
Memory Capacity: 128 gb
Language Settings: English / Russian / German / French / Italian / Spanish / Japanese / Korean / Polish

Range Performance
Detection range: 1000 m

Functions
Scene modes: Enhanced, Highlight and Natural
Color palettes: Black Hot, White Hot, Red Hot, Iron Hot, Blue Hot
PIP: Available
Hot spot tracking: Available
WIFI: 2.4 G
Supported Application: TargetIR
Firmware OTA: Upgrade device firmware via app connection

Environmental
Operating temperature range: -30C to 50C
Storage temperature range: -40C to 70C
Humidity: 10 % to 95 % non-condensing
Shock: 800 G at 1 ms half-sine pulse
Encapsulation: IP67
Certification: FCC, CE, RoHS, EAC, un38.3

Physical:
Weight:  990 g
Dimensions: 377 107 99 mm

Included in box...
Device
Lens cap
Eye masks
5V2A adapter (US, Britain, Australia and Europe)
Desktop charger
Customized battery 2
Extended clip 2
USB Type-C cable
Micro HDMI cable
Quick start guide
