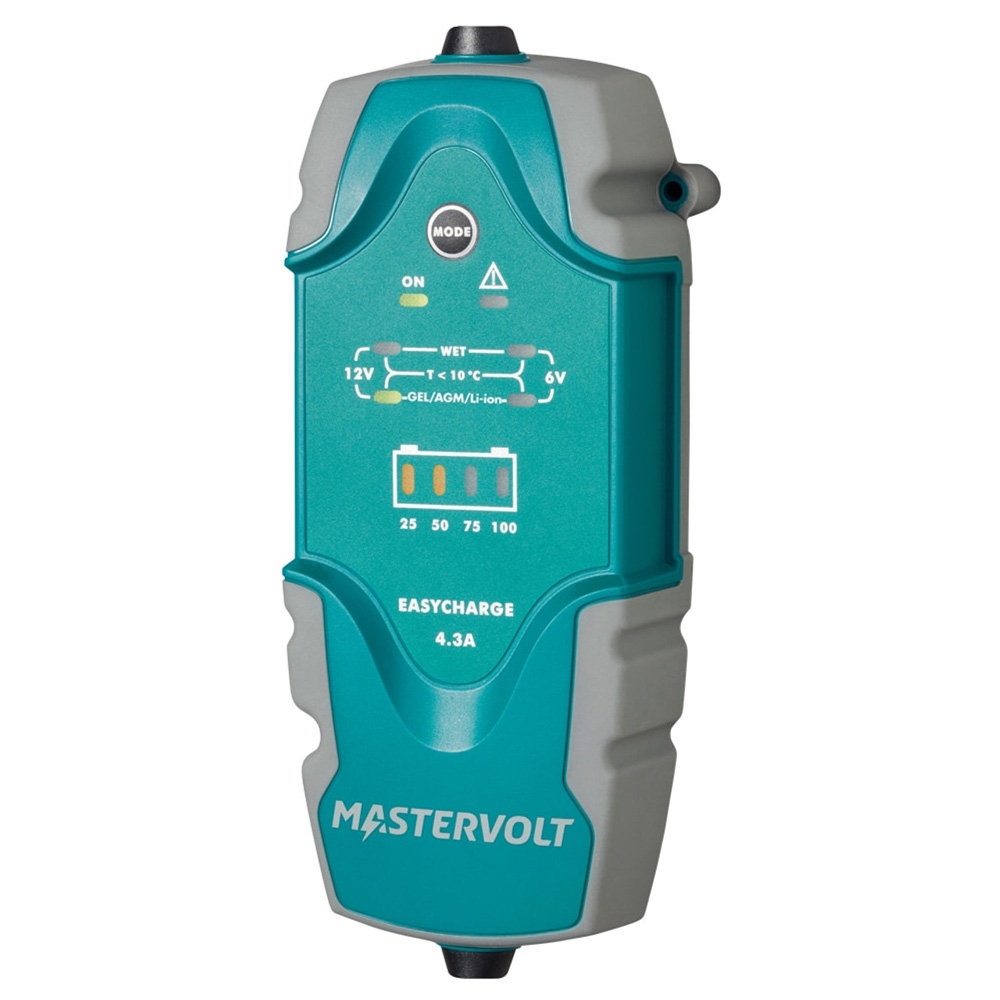

Mastervolt Easycharge Portable Smart Battery Charger 12V/6V and Lithium 4.3A

Recharge on the move with ease

Purpose-built for people on the move, the Mastervolt Easycharge Portable Smart Battery Charger offers a ruggedly convenient charging solution for boats, cars, motorcycles and camper vans. With a robust, ergonomic construction and waterproof to IP65 standard, along with the intuitive control panel and universal input (120-230V), this portable charger gives you total worldwide freedom.

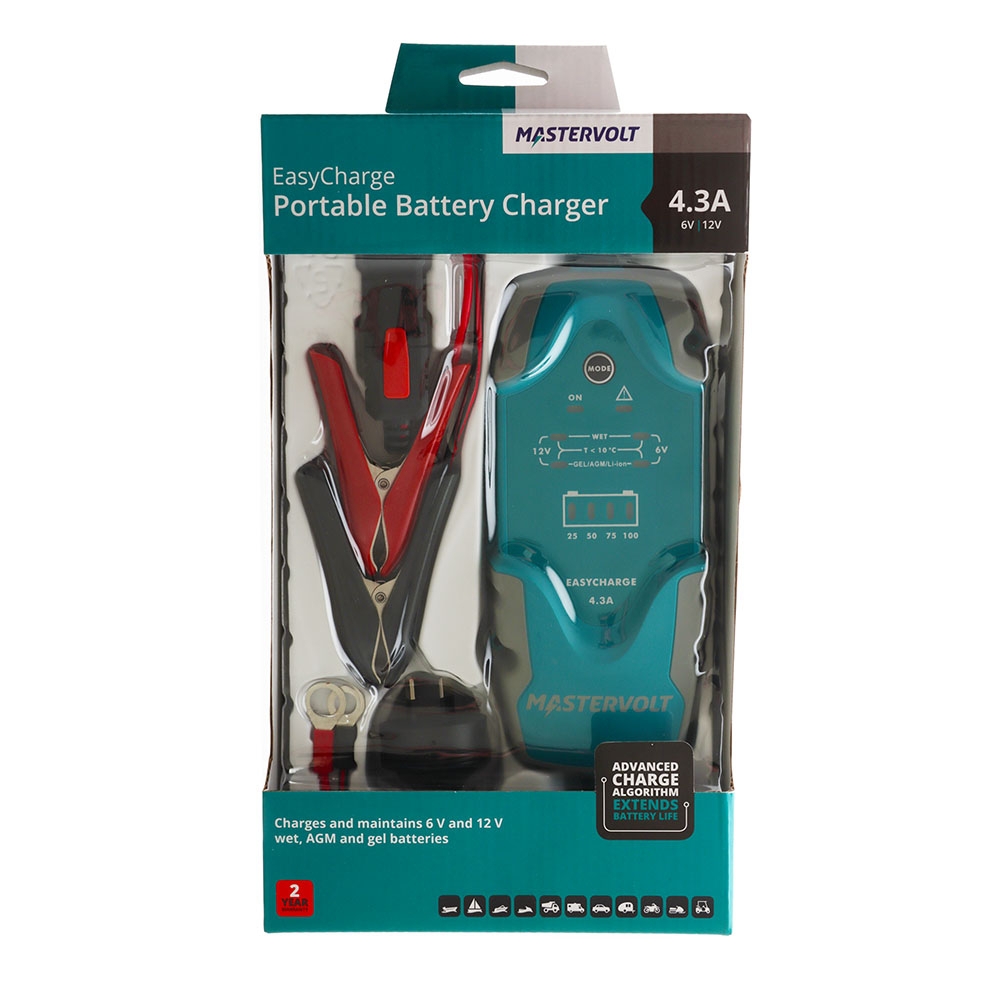

You can quickly select between 6V (ideal for toys, classic cars and motorcycles) and 12V operation. The unit also includes 1.8m of DC cable that connects to either a 61cm lead with ring terminals or a 61cm lead with alligator clips. For easy installation and a wide range of applications, both leads are included in this portable battery charger. The Mastervolt Easycharge Portable Smart Battery Charger will power you up wherever your adventures take you.

Mastervolt Easycharge Portable Smart Battery Charger Features:

• Portable and waterproof
• Mastervolt 3-Step+ charge
• Suitable for any type of battery including Lithium Ion
• Full power up to 40 °C
• Includes cable and AU/NZ plug
• Simple switching between 6V and 12V
• Easy to connect through ring terminals, or alligator clips (included)

Mastervolt Easycharge Portable Smart Battery Charger Specifications:

General:

• Model: 43510402-ANZ
• Total charge current: 4.3 A
• Recommended battery capacity (maintain): 14 to 120 Ah
• Recommended battery capacity (charge): 14 to 90 Ah
• Nominal input voltage: 120/230 V (90-265 V), 50/60 Hz
• AC connection: 1.8 m (6 ft) cable + AU/NZ plug
• DC connection: Ring and alligator clip connections, with integrated fuse
• Galvanic isolation: Yes
• Dimensions (H x W x D): 161 x 72 x 43.7mm
• Weight: 0.9kg
• Compliance: CE, ABYC

Technical:

• Change characteristic: IUoUo, automatic 3-step+ for Gel/AGM/flooded/Lithium Ion
• Temperature range (ambient temp.): -20 °C to 40 °C (-4 °F to 104 °F)
• Protection rating: IP65
• Electrical protections: Short circuit, reverse polarity, over voltage, current limited, over temperature
• MasterBus compatible: No

Mastervolt Easycharge Portable Smart Battery Charger Product Manual
