Shimano Trinidad 16 A and Grappler Type J B538 Jigging Combo 5ft 3in PE8 2pc

Your jigging specialist

If you love being hooked up to freight train like Kingfish and enjoy doing by the means of jigging then Shimano Trinidad 16 A and Grappler Type J B538 Jigging Combo is your ideal weapon of choice.

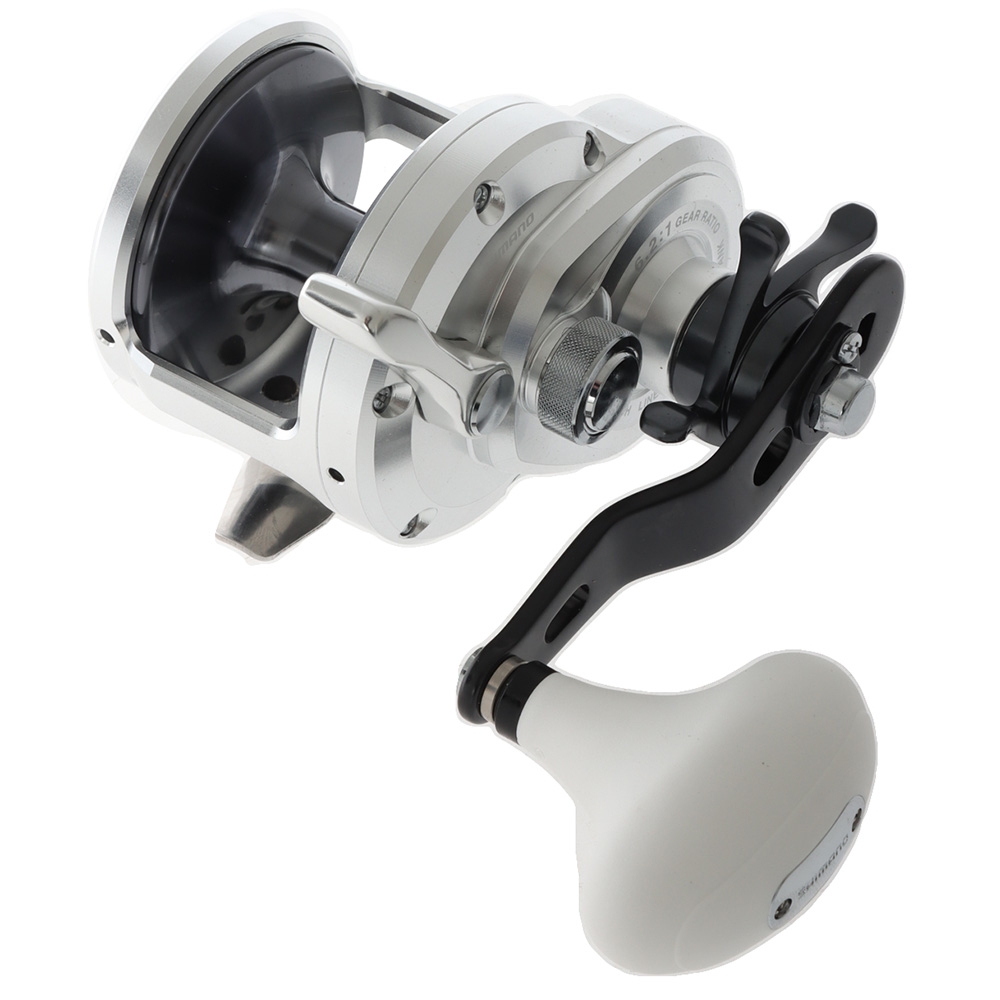

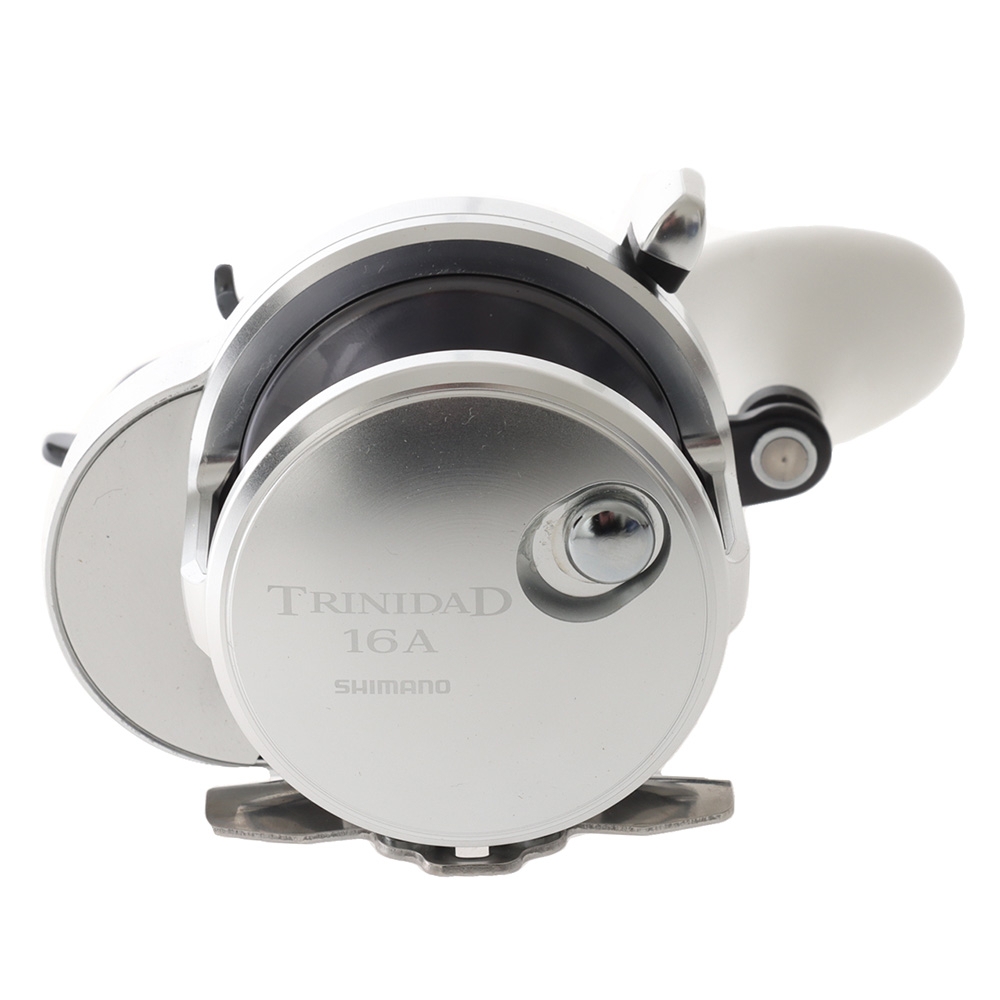

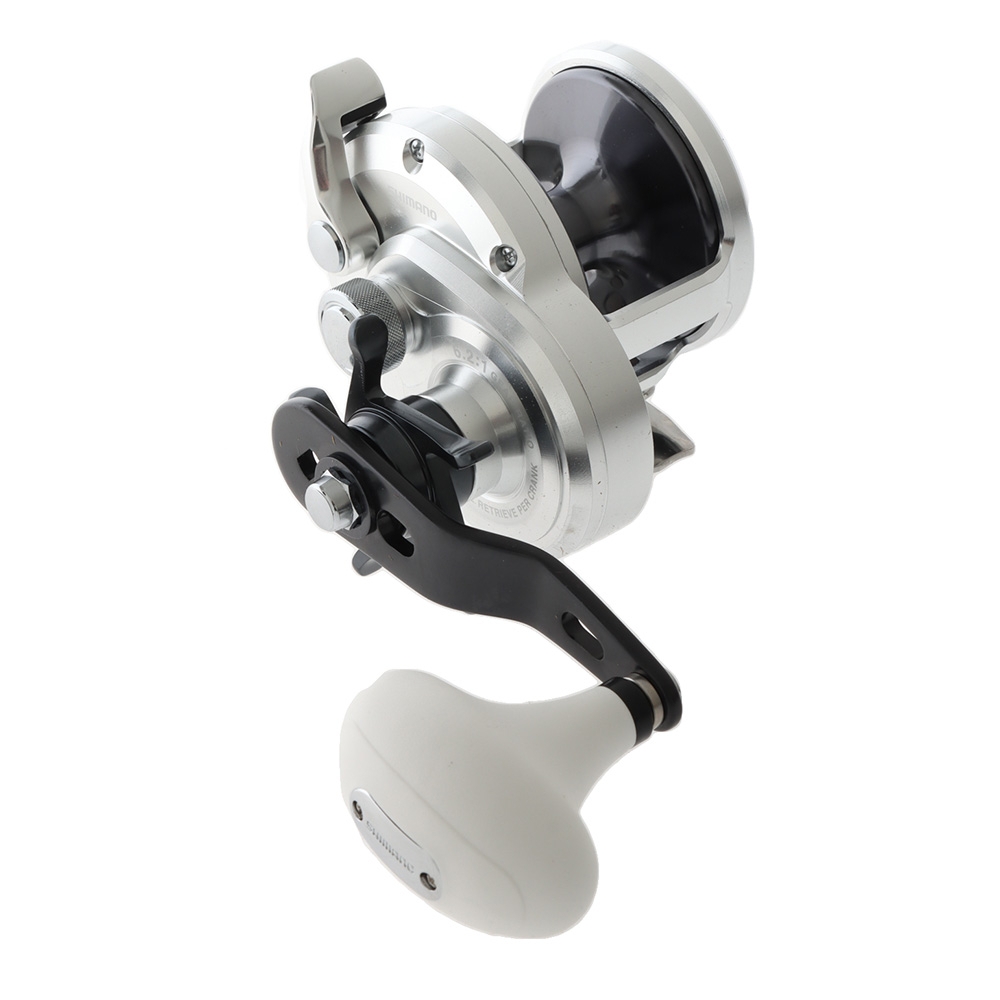

The Reel
Designed to excel at inshore and bluewater applications alike - the Shimano Trinidad 16 A Jigging Reel is unbelievably compact but has all the latest Shimano technologies included. The ultra light weight cold-forged aluminium Magnumlite spool and one-piece side plate and frame feature Electronic Ionisation (EI) surface treatment plus chrome-plated screws for the kind of extreme corrosion protection you need in the saltwater environment. The Trinidad A is rated for mono, fluoro and braided lines.

Aluminium Cold Forged Spool
These spools provide strength and durability over diecast aluminium or graphite spools.

E.I. Anti-Corrosion Surface Treatment
After the adonisation process is finished, a second layer of surface treatment is added. This treatment is forced into the remaining surface impurities. This gives salt no hideout and also results in an extremely smooth-to-the-touch finish. A reel with E.I. treatment has more than double the corrosion resistance of a standard anodised reel.

Super Stopper
Super Stopper uses a one-way bearing that eliminates backplay. This provides the angler with instant hooksetting power.

X-Ship
By supporting the pinion gear on both ends with the S-ARB bearings and integrating bigger drive gear, Shimano increased the gearing efficiency and power. This results in a fishing reel with ultra-light handle rotation; less effort and power giving a perfect rotation even under heavy loads.

The Rod
The Shimano Grappler Type J B538 Overhead Jigging Rod features awesome newly designed blanks packed with high-end features like Spiral X and Hi-Power X, both of which are very rare for this price range. In addition to being light, strong and unwavering during fish fights, the Shimano Grappler Type J B538 Overhead Rod is equipped with double-footed MN guides and metal gimbals. This makes it an excellent rod for targeting big game fish.

Spiral X
Spiral X Construction consists of 3 layers - a blank made of vertical fibres, an inner layer, and an outer layer, both comprised of carbon tape that tightly winds the blank diagonally in opposite directions. By using this carbon tape in place of a conventional horizontal fibre sheet, Spiral X achieves enhanced torsional rigidity without adding extra weight. This, in turn, facilitates instant power transmission for precise casting and fighting fish. Through its exclusive lightweight structure, Shimano's Spiral X construction will definitely enhance your catching power!

Hi-Power X
In Hi-Power X construction, the blank's outermost layer is diagonally wrapped with carbon tape which forms an array of "X" shapes. The width of the tape, its winding angle, and the part of the rod being wrapped are fine-tuned according to the target fish species. The flexibility allows Shimano to adjust these wraps during construction for precise actions, enhanced overall strength and added twist resistance. In short, Hi-Power X construction delivers sharp and crisp rod control.

Shimano Trinidad 16 A Jigging Reel Features:

• Cold-forged aluminium Magnumlite spool

• Electronic Ionisation surface treatment

• Chrome-plated screws

• Manual metal clutch lever

• Corrosion prevention pad

• Adjustable handle shank

• Lightweight ergonomic handle knob

• Durable metal rod clamp


Shimano Trinidad 16 A Jigging Reel Specifications:

• Retrieve Per Crank: 117cm

• Bearings: 8+1

• Max Drag: 11kg

• Mono Cap: 7kg/411m

• Drag Type: Star

• Weight: 560g

• Powerpro Capacity: 50lbs/484yds

• Gear Ratio: 6.2:1


Shimano Grappler Type J B538 Overhead Rod Features:

• Newly designed blank

• High-end features

• Spiral X

• Hi-Power X

• Double footed MN guides

• Metal gimbal for PE rated rods

Shimano Grappler Type J B538 Overhead Rod Specifications:

• Rod Product Code: B538

• Length: 5'3'' (1.6m)

• Sections: 2

• Lure Rating: 400g

• PE Rating: PE 8


Shimano Trinidad 1 6A Jigging Reel Schematic Diagram
