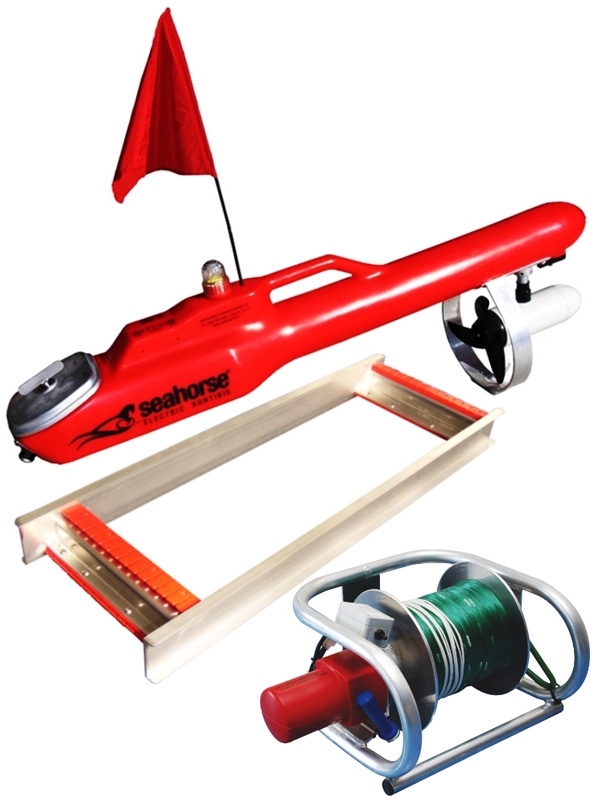

Seahorse STD 46 Electric Kontiki Full Pack with Electric Winch and Clip n Go Traceboard

Details

Details

Bringing a new level of ease and simplicity to kontiki fishing

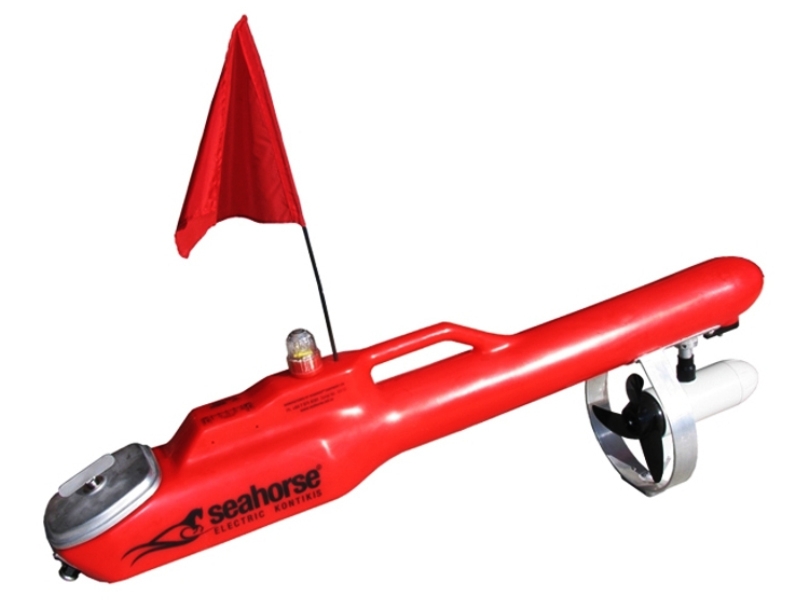

This package includes the best standard Kontiki unit you can buy. Just get some bait and you're away fishing! Designed and engineered in Tauranga and tested in the harshest beach conditions, the Seahorse STD 46 Electric Kontiki Full Pack has been the most successful STD beach longline fishing system in the market. It can be operated either single-handedly or with family and friends. Able to power through all conditions so you can fish where and when you want! The STD Seahorse Electric Kontiki System has taken beach longline fishing to a whole new level. With the Seahorse STD 46 Electric Kontiki, you're getting the results of over 10 years of development and improvements. Its world-class electronic control unit brings a new level of technology to Kontiki fishing with unique stall protection and recovery features.

For ultimate performance and flexibility, the powerful and versatile two-speed Seahorse STD 46 Electric Kontiki is New Zealand's most popular kontiki unit. It's New Zealand's only proven 46lb thrust kontiki! The high performance 46lb thrust motor will attack massive West Coast surf and rips, allowing you to fish when others can't. And what's more, the two speed control unit gives you full power for serious surf and rips, or half speed for calmer conditions, ease of use, and maximum distance.

Note: The Standard Seahorse Kontiki does not have the Seahorse-developed GPS guided autopilot system. It relies on its unique body shape and the user launching it in the correct direction to ensure a good set.

How does the STD Seahorse steer so well?
The Seahorse STD 46 Electric Kontiki has an incredible ability to self-steer through varying side currents and waves. This is a unique ability unmatched by others on the market. Its long body allows for unrivalled longitudinal steering stability. Seahorse engineered the STD kontiki with an offset tow point and forward mounted motor to ensure maximum resistance from waves and rough conditions. The long, low body acts like a rudder, removing the need for drag inducing keels. This low buoyancy design also gives the Seahorse the ability to dive under the breaking surf and avoid being washed off course. And what's more, the line towing behind the Seahorse Kontiki works like the tail of a kite, which keeps the unit straight. The low drag, front mounted rudder gives additional control for tackling offshore tidal currents or wind-induced surface drift. By launching slightly into the current, the Seahorse's ability to steer a straight course will ensure your line is set where you want it.

Reliable, smart electrics
The Seahorse Electronic Control Unit is completely sealed in resin. This resin block is fitted into the polyethylene body, and is held in place with moulded anchor points. The electronics remove a mass of wiring allowing a clean and simple battery compartment. There are two connecting leads showing to attach the two batteries.

A row of 10 super bright LEDs, which shine through the body, indicates your battery status and will indicate if the batteries need charging. The LED lights show the pre-selected running time of your Seahorse. The amount of time is indicated by the number of LED lights which illuminate in a bar display. Once the time is set simply start the Seahorse motor by putting the magnet near the START switch. You can run the Seahorse until the low battery cut-out switches it off, or you can set the timer to 25, 20, 15, 10 or 5 minutes run time.

The LED light flashes fast to show the motor is running, and on the Seahorse 46 the lights will flash slow to show when slow speed is selected.

The Seahorse Kontikis are the only Kontikis with built-in automatic stall protection system. If the motor is stalled, the control unit will automatically stop and start the motor up to 3 times trying to dislodge the offending item. - an essential feature for shingle beaches.

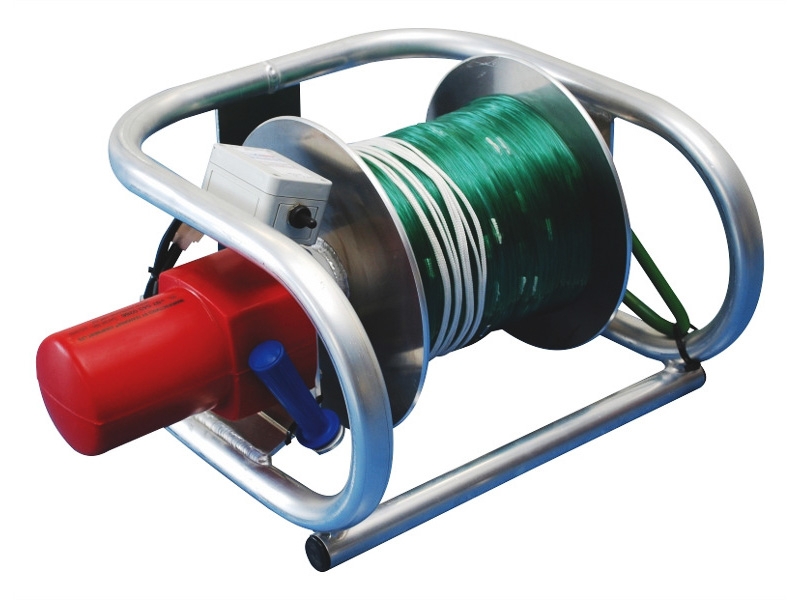

The Electric Winch
The Seahorse Electric Winch is built tough to do the hard work in harsh beach environments. It makes launching and retrieval of your Seahorse kontiki a one-person job, no matter what the conditions are or how many fish you have on the line. The three-speed control unit and pulse function gives you full control, allowing you to fish when you want. The Seahorse Electric Winch can be used with any electric kontiki and is perfect for kite fishing.

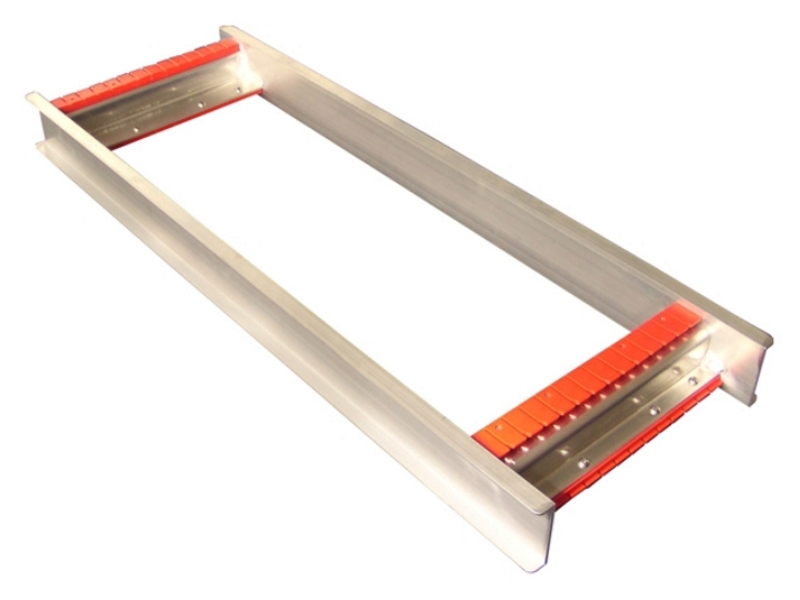

The Traceboard
The Seahorse Clip & Go Traceboard is lighter, stronger and cleaner than old-fashioned wooden boards, with a straightforward design, and can be used with a wide range of baits. Its highly effective two-sided design and long traces enable easy, fast, and safe attachment of the traces. Plus it's safer too, as it allows you to stay away from the pre-baited hooks that are automatically dispensed from the far end of the board. The traces are attached between every second or third stopper on the stoppered section of line. The stoppers are 2 metres apart and with a hundresd and twenty stoppers on the mainline, you have plenty of extras. The stoppers are nylon cord tied and glued and do not affect line strength and are much better to handle than the cheaper aluminium crimps. The 25 traces can be deployed in under a minute.

As the Seahorse Kontiki performs and travels at high speed, the traceboard makes it easy to attach traces safely and easily, and a winch that controls the line during the launch stage. Simply clip on the traces, and go!

Used by Graeme Sinclair and Bill Hohepa, Derek the Chef, and thousands of New Zealanders - from Invercargill to Cape Reinga, - the Seahorse is the best kontiki unit you can buy!

Seahorse STD 46 Electric Kontiki Full Pack Features:

• Ultimate performance and flexibility

• Proudly made in Tauranga, New Zealand - the home of Kontiki fishing.

• New Zealand's most popular STD non-guided kontiki unit

• High performance 46lb thrust motor

• Two-speed control unit

• Full power for serious surf and rips or half speed for calmer conditions

• Mercury 46lb thrust motor swings a 3 blade prop that provides a massive amount of torque or pull

• The slower speed delivers 27lbs of thrust

• Designed to handle harsh beach conditions of New Zealand

• Internal components, including the batteries, are fully sealed and waterproofed for maximum protection

• Electronic Control Unit is encased in resin and completely waterproof

• Stall protection and recovery protects the motor and batteries from the extensive damage

• Simple one-touch control

• Long, low buoyancy, slab-sided body design

• Slice through waves with minimal resistance, maximising distance

• Aluminium hatch provides a total seal - the tighter the hatch is closed, the stronger the seal becomes

• Offset aluminium tow point counters the torque of the powerful Mercury motor

• High-visibility flag

• Automatic strobe light self-activates in the dark

• Unique serial number to ensure positive identification of each unit

• Well-balanced handle

• Small forward-mounted rudder,provides positive direction control

• Strong aluminium motor guard frame

Seahorse Electric Winch Features:

• Makes launching and retrieving your Seahorse as simple as possible

• Most advanced beach longline fishing winch available

• Simple to operate, simple to clean

• Simple and effective drag rubber

• Additional drag can be manually applied if required

• Line: 300lb, or 140kg, breaking strain, commercial grade monofilament fishing line

• Line is easy to handle, yet strong enough to withstand a high level of abuse

• Line includes 3m shock cord, followed by 150m of leader line (used to guide the Seahorse through the surfline. The following 250m of stoppered line has 120 resin coated stoppers where the weights and 25 traces are attached. The stoppered line is then followed by 1600m of mainline to allow set-up of the Seahorse up to 1.9kms offshore. This gives you plenty of time to get your traces attacehd tot he main line.)

• Marine grade wiring and external switches

• The unit has three speeds so you can select the correct speed for whatever the situation

• Sealed ON/OFF/PULSE switch (slow speed for trolling the baits back to the beach, Medium speed has an overload thermal auto cut-out to protect the motor, High speed uses all the power of the 150 watt motor to retrieve the line in the fastest possible time)

• Electronically controlled to ensure no battery power is wasted

• Aluminium frame design and low drum placement enables the winch to lock itself into the sand

• Self-lubricating bushes eliminate the need for grease

• Powerful 150 watt motor will provide up to 50kg of pull

• Large 14ah battery capacity allows for up to 4,000m of hauling

• Cased aluminium drum is heat treated to guarantee greatest durability

Seahorse Clip & Go Traceboard Features:

• The strong aluminium frame is light weight and does not hold the smell of the fish or baits

• Convenient frame design that makes cleanups easy and keeps the traces and the board in top condition

• 2 sided design reduces the size of the traceboard while maximising the spacing between hooks increasing baiting options

• Handles long trace, which has been proven more successful

• Trace and hook holders with minimum tension ensuring easy and safe operation

• Seaharvester clips and longline hooks - the quickest, easiest, and safest method of attaching traces

• 10 spare pre-tied traces included (in addition to the 26 on the board)

Seahorse STD 46 Electric Kontiki Full Pack Specifications:
Seahorse STD 46 Electric Kontiki

• Length: 1.3m

• Width: 25cm

• Depth: 43cm

• Weight: 17.8kg

Seahorse Electric Winch

• Length: 47cm

• Width: 47cm

• Depth: 33cm

• Weight: 21.7kg

Seahorse Clip & Go Traceboard

• Length: 90cm

• Width: 33cm

• Depth: 8cm

• Weight: 2.4kg

What's Included:

• 1 x Standard Seahorse Electric Kontiki with the powerful 2-speed 46lb thrust motor

• 1 x 22 amp hour SLA battery pack

• 1 x Seahorse ABT Automatic Multi Stage Charge

• Night activated strobe light and flag

• Seahorse Electric Winch with: 1900 meters of 140kg breaking strain line, including 1600m of mainline, 250m of 120 stoppers, 150m of leader, and shock cord

• 14 amp hour SLA Battery

• Seahorse Clip & Go Traceboard with 26 traces

• 10 spare traces

• 5 clip on weights

• Operator's manual and DVD

Seahorse Electric Kontikis Product Manual
