See more, catch more

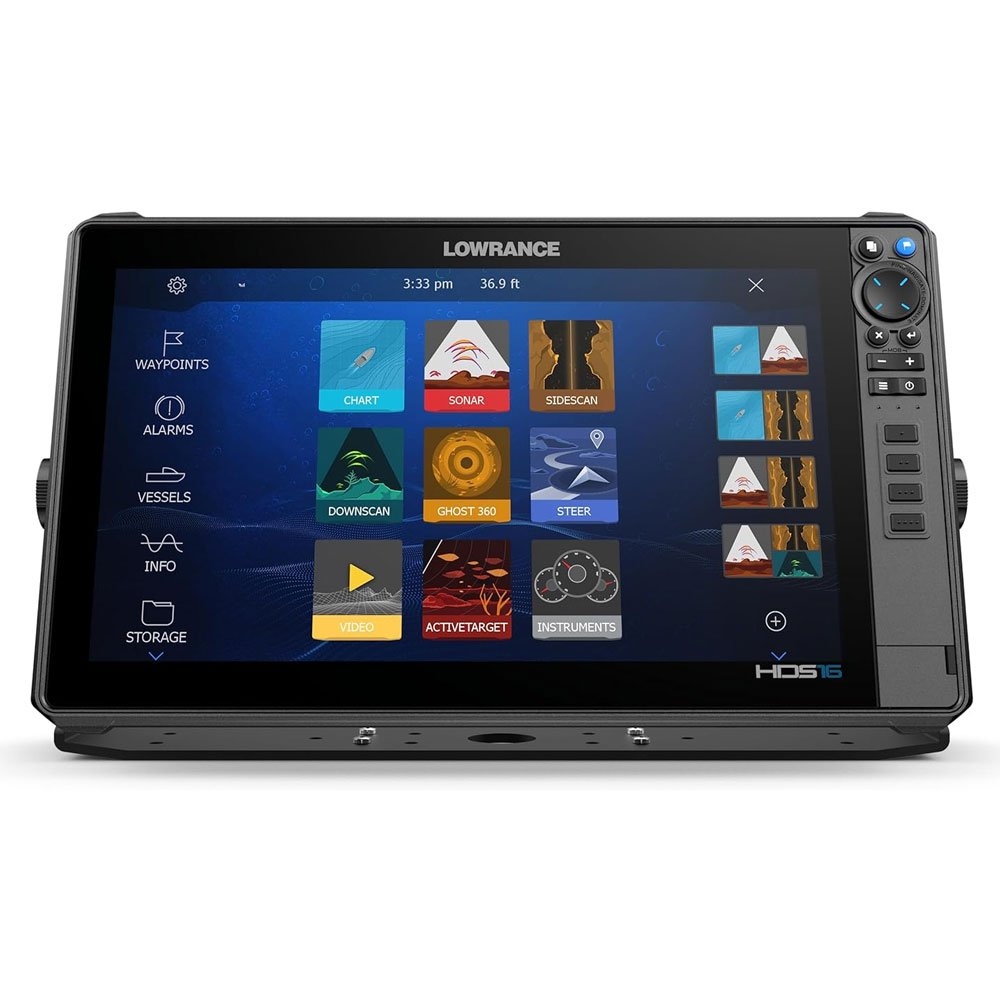

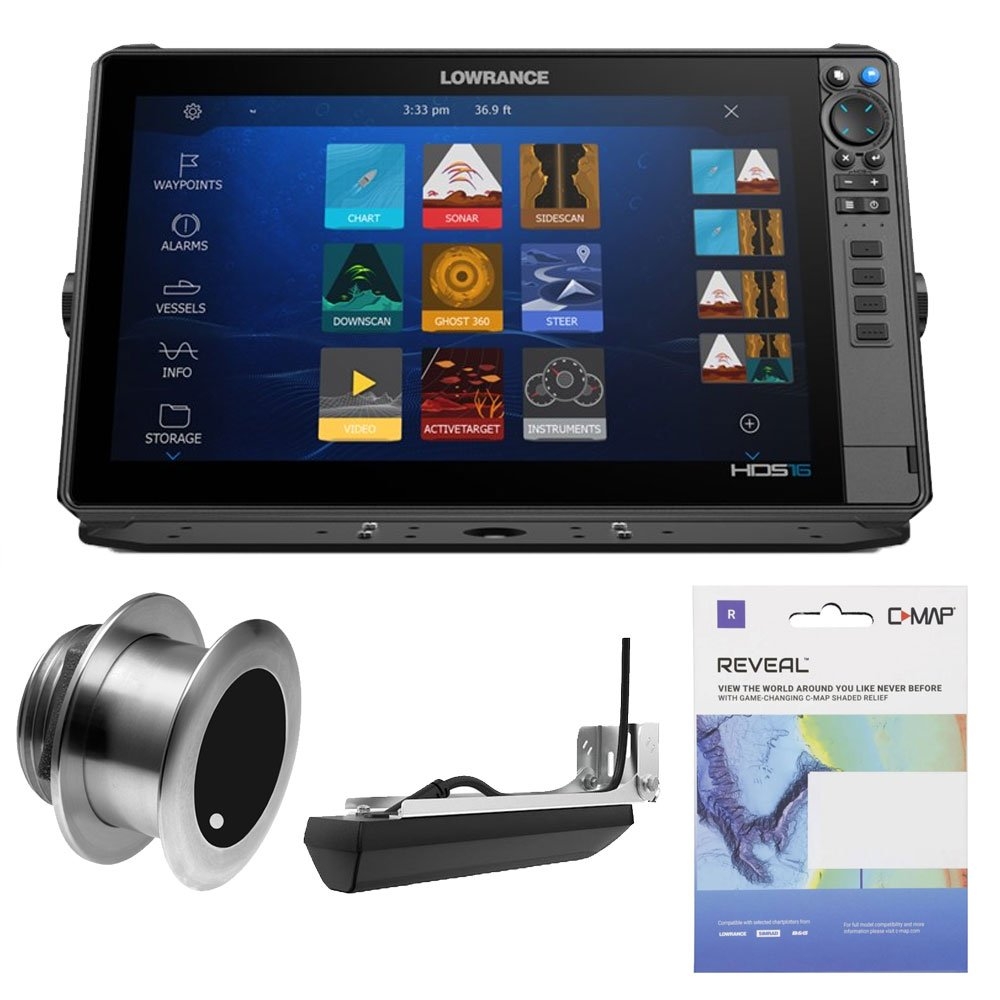

See more clearly and find more fish than ever before. The new
Lowrance HDS-16 PRO GPS Chartplotter/Fishfinder provides the complete package of the latest fishfinding technology. Watch fish react to your lure live with new, high-resolution ActiveTarget 2 Live Sonar, and find fish and holding structure with new, ultra high-definition Active Imaging HD. Quickly find fishing areas with the latest and most detailed charts and get full fishing system networking with expanded boat control from bow to stern.
HDS PRO offers complete bow to stern control on a SolarMAX HD touchscreen, which provides stunning sonar images of fish and structure from the Active Imaging HD and ActiveTarget 2 Live Sonar technologies, along with incredible detailed chart information that is easy to see from any angle, in direct sunlight and through polarised lenses – a real difference on the water.
Active Imaging HD

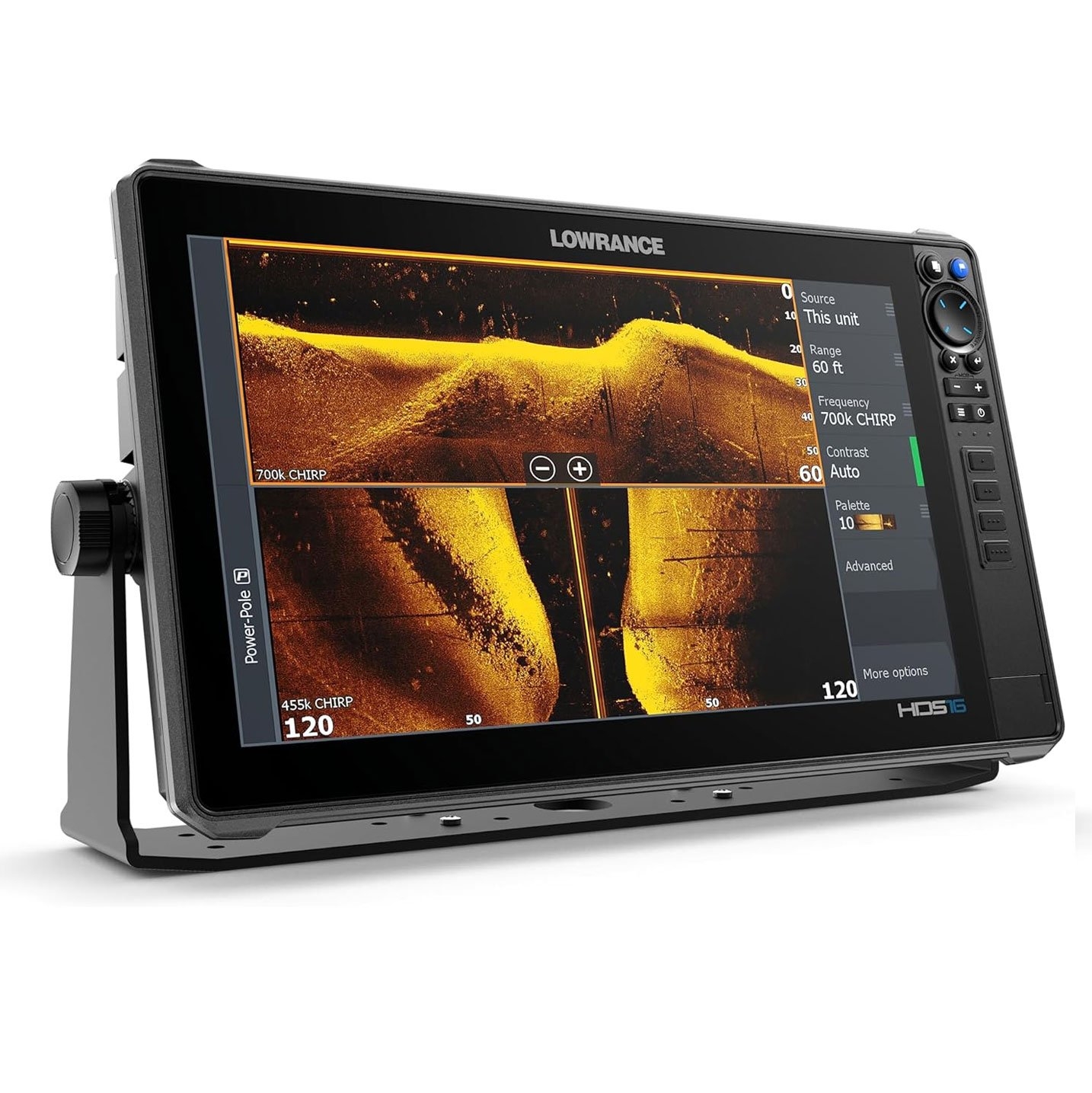

Level up to the ultimate fishfinding clarity with ultra high-definition Active Imaging HD sonar. Get the clearest images of fish and structure with Lowrance CHIRP sonar. And experience new FishReveal SideScan (requires S3100 module and compatible transducer) and DownScan views, to easily identify fish targets to the sides and beneath the boat.
ActiveTarget 2 Live Sonar
Catching fish is easier when you can see them moving in real time with high-resolution ActiveTarget 2 Live Sonar. Quickly recognise if your technique is working or if you need to make an adjustment to get the fish to strike. You also have the option to add a second system for more simultaneous views – only on HDS PRO. Delivering a smoother and more consistent image across the entire range, ActiveTarget 2 gives you the full live-action picture in forward, down and scout views. Add a second system and get multiple views on a single display. Combine Forward + Scout, 180, or Scout Wide (requires additional bracket) to get eyes on a bigger picture.
Take Control with the Ultimate Fishing System
HDS PRO forms the heart of the Ultimate Fishing System, offering full networking and bow-to-stern boat control spanning trolling motors, autopilots, engines, radar, communications, and connectivity and control of PowerPole shallow water anchors.
The Transducer
Step up to the ultimate fishing clarity with the new, high-definition
Lowrance Active Imaging HD 3-in-1 Transom Mount Transducer. Get the clearest images of fish and structure from Lowrance CHIRP sonar, high-frequency (up to 1.2MHz) SideScan/DownScan Imaging, plus FishReveal DownScan and a new FishReveal SideScan view, making fish identification easy. The Active Imaging HD transducer not only delivers three key sonar technologies in one convenient package, but also features a new transducer design that boosts signal clarity.
Active Imaging HD 3-in-1
Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weedbeds, ditches, drop-offs and more.
FishReveal SideScan
First introduced with DownScan Imaging, FishReveal is now available on SideScan, making it quicker and easier to recognize fish targets – along with picture-like images of structure on both sides of your boat.

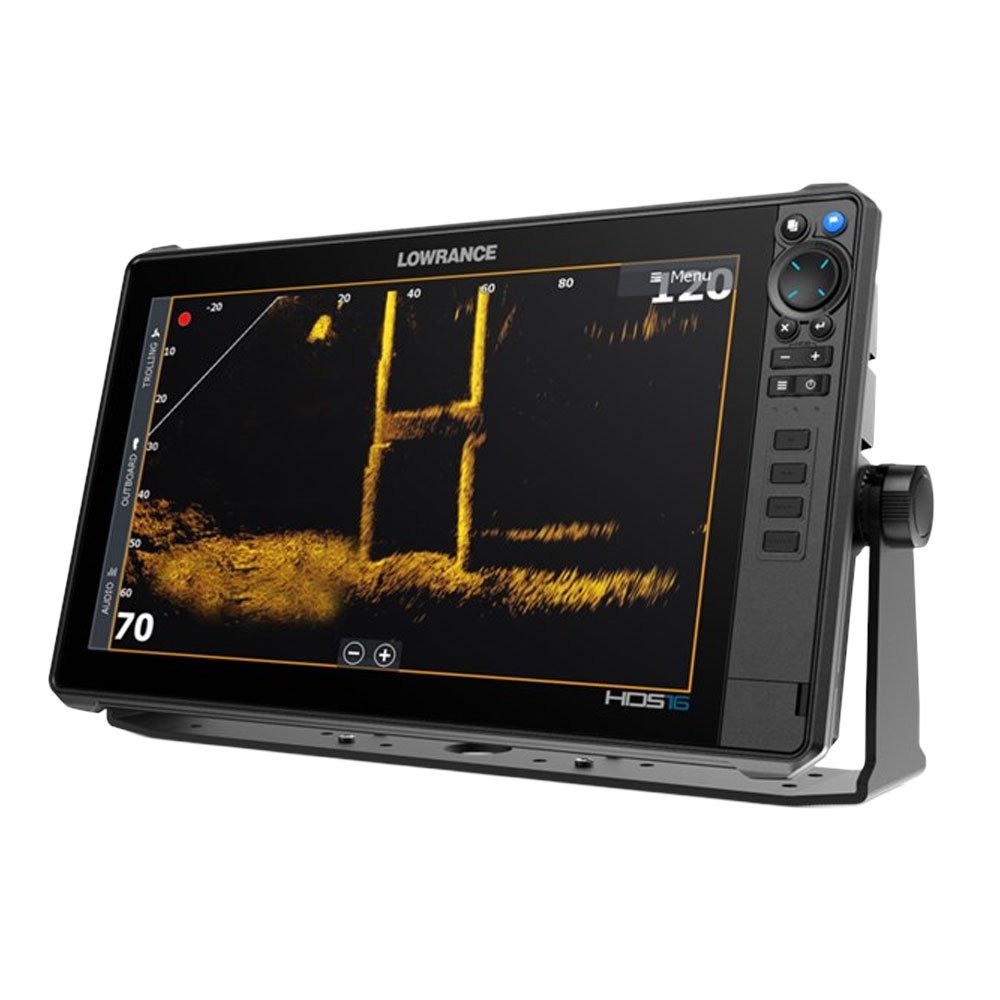

Lowrance HDS-16 PRO GPS Chartplotter/Fishfinder Features:
- High-definition up to 1.2MHz Active Imaging HD ready (Lowrance CHIRP/SideScan/DownScan Imaging)
- High-resolution ActiveTarget 2 Live Sonar-ready
- Supports two ActiveTarget Systems for multiple views simultaneously
- Supports new FishReveal SideScan view with a new S3100 Sonar Module (sold separately)
- Support for new ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views
- Expanded controls for the Trolling Motors, including Orbit Waypoints, Depth Routing and Anchor at a distance
- Touchscreen control of Lowrance and MotorGuide Trolling Motors, Autopilot, Lowrance Outboard Pilot and Power-Pole shallow water anchors
- NMEA 2000, Wireless and Bluetooth, connectivity – plus smartphone notifications
- Real-time mapping available with C-MAP Genesis Live
- Preloaded C-MAP DISCOVER OnBoard charts with worldwide basemap
- Wide range of optional chart upgrades including C-MAP REVEAL, Navionics and more
- Large programmable keys
Lowrance HDS-16 PRO GPS Chartplotter/Fishfinder Specifications:
Display
- Backlight colour: Pure White LED
- Display resolution: 1920 x 1080
- Screen brightness: >1200 Nits
- Viewing angles: 80° top/bottom, 80° left/right
- Display size: 16in
Connectivity
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Ethernet ports: 2 x 100 Mbit, 6 max MFD's on a network
- Connectivity WiFi: Internal 802.11b/g/n and Compatible with WiFi-1 Module
- NMEA 2000 connectivity: 1x Micro-C
- PC connectivity: None
- SD card storage: 2 micro SD cards up to 32GB
- Video: Output: No Input: Composite video RCA – single channel via optional adaptor
Cartography
- Charts supported: C-MAP Reveal, C-MAP Discover, C-MAP Reveal X, C-MAP Discover X, C-MAP (MAX N, MAX N+), C-MAP Genesis, Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD), Lowrance Regional Mapping Partners
Autopilot
- Manoeuvres turn patterns: Course Heading Waypoint Power Steer U-Turn C-Turn Spiral Zigzag Square Lazy-S
- Steering modes: Course Heading Waypoint Power Steer
Approvals
- Approvals compliance: FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
Electrical
- Power consumption max: 4.1A @ 13VDC with Full Backlight, Sonar on
- Power consumption min: 3.00A @ 13VDC with Full Backlight, Sonar on
- Power consumption typical: 3.00A @ 13VDC with Full Backlight, Sonar on
- Recommended fuse rating: 5A
- Supply voltage: 12 v DC (10.8-17VDC)
Environment
- Humidity: IEC 60945 Damp Heat 150°F (66°C) at 95% Relative Humidity (48 hrs)
- Operating temperature range: 5°F to 131°F (-15°C to 55°C)
- Shock vibration: 100,000 cycles of 20 G
- Storage temperature range: 4°F to 140°F (-20°C to 60°C)
- Waterproof rating: IPX7 with card door closed
GPS
- Correction: DGPS, WAAS
- GPS receiver channels: 16
- Position accuracy: 20m RMS
- Time to first fix: 30s
- Update rate: 10 Hz
MFD
- AIS: AIS Chart and Radar overlay. Target vessel details
- Autopilot: Outboard Pilot NAC-1 NAC-2 Ghost Trolling Motor Motor Guide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
- Cartography included: C-MAP Discover OnBoard (AMER models) C-MAP World Background (ROW models) Navionics basemap (AMER and ROW models)
- Digital switching: CzoneNaviop
- GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
- Internal storage: 8.0 GB Internal
- Multimedia: SonicHub SonicHub2 FusionLink products any NMEA 2000 compliant Marine Audio products
- Sonar compatibility: Integrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Active Imaging HD DownScan Active Imaging HD SideScan Compatible with: ActiveTarget ActiveTarget 2 S3100 SonarHub StructureScan StructureScanHD StructureScan3D LiveSight (requires PSI-1 module)
- Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails with up to 10,000 points per trail

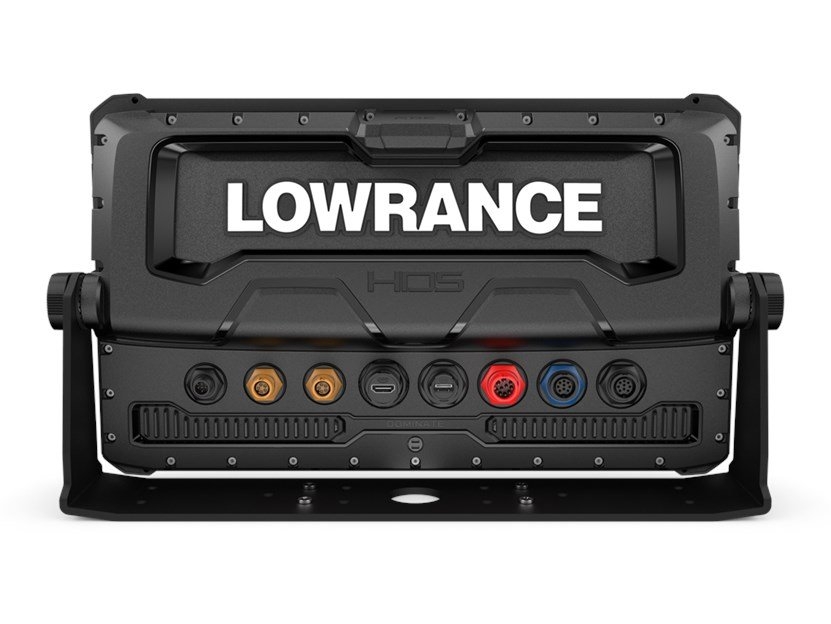

Physical
- Compass safe: 12" (300mm)
- Dimensions (W x H x D): 430.5 x 259.2 x 87.8 mm
- Weight: 3.60kg
Lowrance Active Imaging HD 3-in-1 Transom Mount Transducer Features:
- High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structure
- Lowrance CHIRP with superb clarity and target separation
- FishReveal with new SideScan view as well DownScan
- Supports Medium and High CHIRP (83/200kHz) and 455/700/1000/1200 KHz frequencies
- Smart transducer design boosts signal clarity
- Compatible directly with Lowrance HDS PRO or with a S3100 module with HDS LIVE, HDS Carbon and Elite FS
Lowrance Active Imaging HD 3-in-1 Transom Mount Transducer Specifications:
- Humidity: 60°C, 95% relative humidity (RH) for 18 hours
- Operating temperature range: 5°F to 131°F (-15°C to 55°C)
- Shock vibration: 100,000 cycles of 20 G
- Storage temperature range: -22°F to 158°F (-30°C to 70°C)
- Waterproof rating: IP67
- Mounting type: Transducer: Bracket Mount
- Weight: 1.21kg
- Interface: Direct connect to: HDS Pro S3100 Ethernet to: *HDS Live* Elite FS* Requires S3100 Module
Note: S3100 sonar module for FishReveal with new SideScan sold separately.
