You've never fished like this before
With the new

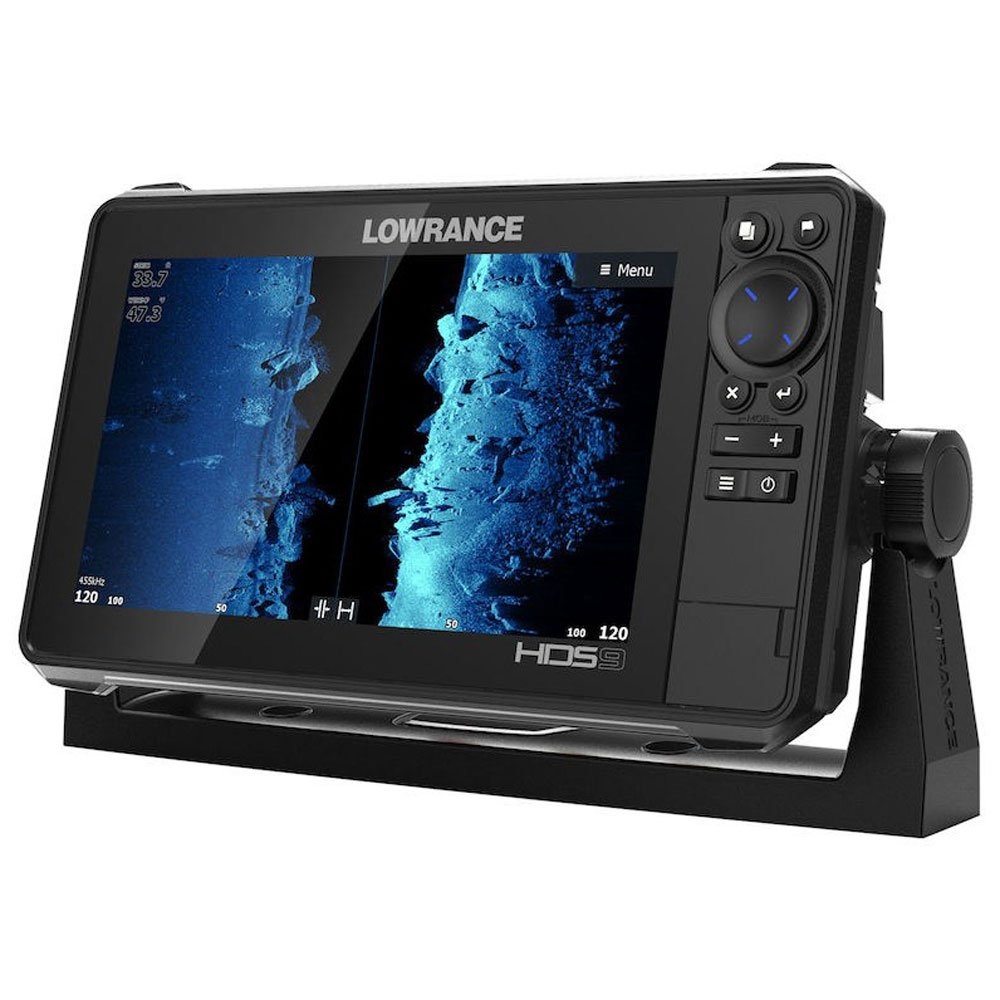

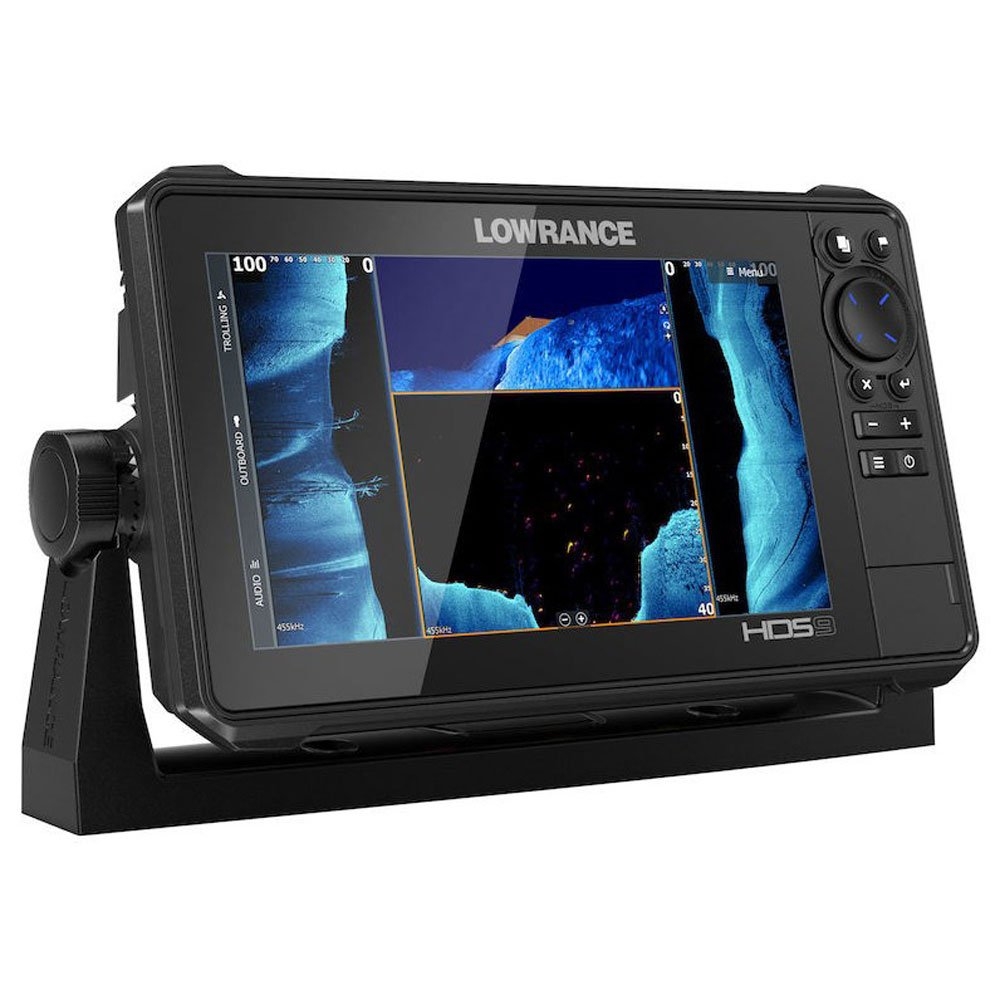

Lowrance HDS-9 LIVE GPS/Fishfinder, Lowrance took the most popular fishfinder series on the professional fishing circuit and made it even better for all anglers with a sleek, new design, faster processor, best-ever built-in suite of HDS navigation tools and support for a wide array of new fishfinding technology, unmatched by any other fishfinder.
Prepare yourself for a new level of fishfinding performance with HDS LIVE, which includes built-in Lowrance CHIRP sonar, support for Active Imaging, StructureScan 3D with Active Imaging and revolutionary LiveSight Real-Time Sonar. Equipped with the best set of navigation tools ever built into a fishfinder/chartplotter display, HDS LIVE features preloaded C-MAP Enhanced Inland and Coastal mapping, automatic routing support and new Genesis Live onscreen mapping offering precision real-time mapping, down to ½-foot contours. The HDS-9 LIVE is the perfect solution for anglers who want the best sonar and navigation technology in a mid-sized display.
Active Imaging
Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging sonar delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure-imaging technology.
FishReveal
Makes fish easier to see on DownScan Imaging by combining CHIRP sonar fish targets with superior, high-resolution views of bottom detail, structure and bait fish. FishReveal removes the need to display CHIRP sonar and DownScan Imaging in a two-panel split-screen.
Mapping in Real-Time
Update the mapping of your favourite fishing spot or map unmapped areas with ½ foot contours – in real time – on the screen of your fishfinder/chartplotter with C-MAP Genesis Live. Genesis Live uses digital depth to create high-definition maps featuring 1/2-foot contours. Target key fishing areas with Genesis Live maps, which makes it easy to find areas where fish like to hide, like drop-offs, points, ditches and more. A truly customisable mapping experience, Genesis Live gives you control over contour transparency, contour density, depth and safety shading colour palettes and more. Create your Genesis Live maps in real-time, saving them as you go to a microSD card.
Smartphone Notifications
Keep your eyes on the fish and never miss an important text or call with smartphone notifications built into HDS LIVE. Turn off phone notifications for uninterrupted fishing, or leave them on to receive popup notifications on the screen of your HDS LIVE display.

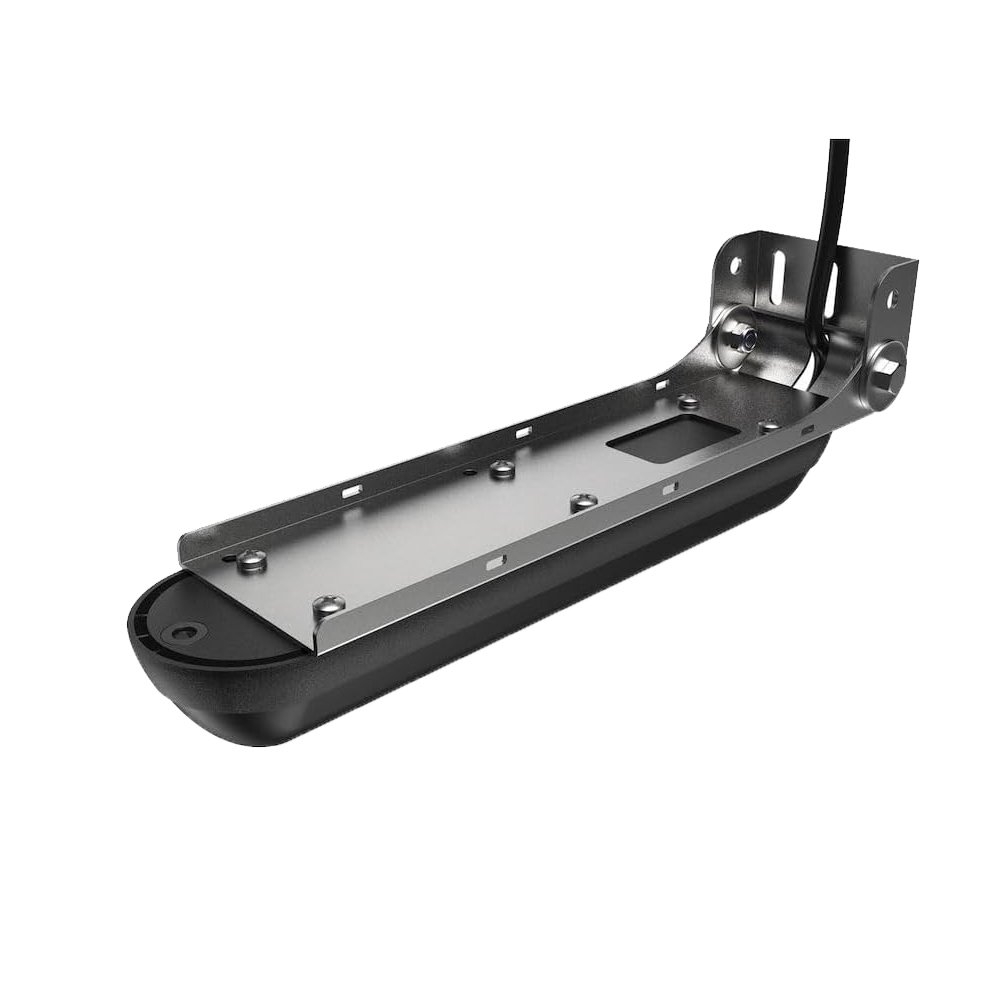

Active Imaging 3-in-1 Transducer
Active Imaging 3-in-1 Transducer: Active Imaging 3-in-1 combines the new Active Imaging scanning sonar with a traditional Medium/High CHIRP sonar element for easy single transducer installation.7.6 m (25 ft) cable with 9 pin connector.
Lowrance HDS-9 LIVE GPS/Fishfinder Features:
- Active Imaging 3-in-1 (CHIRP/Side/Down) sonar ready
- Active Imaging 2-in-1 (Side/Down) sonar ready
- StructureScan 3D with Active Imaging enhancements
- LiveSight real-time sonar compatible
- Smartphone notifications
- High-performance dual-core processor
- C-MAP Genesis Live onscreen mapping
- FishReveal Smart Target View
- High-resolution SolarMAX HD multi-touch screen
- Preloaded high-detail C-MAP US Enhanced charts with 1-foot contours on 4,000 lakes
- C-MAP Easy Routing, Navionics Autorouting capability
- Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
- Live Network Sonar
- SiriusXM Marine Weather and Audio compatible
- Wireless and Bluetooth connectivity
- Heat Map Chart Overlay
- Enhanced Surface Clarity
- Quick Access Control Bar
- Touchscreen control of MotorGuide Xi5 Trolling Motor, Outboard Pilot and Power Pole anchors
- Radar and SonicHub2 audio server connectivity
- NMEA 2000 engine support
- Optional mapping upgrades include C-MAP, Navionics and more
Lowrance HDS-9 LIVE GPS/Fishfinder Specifications:
- Screen Brightness: 1200 Nits
- Update rate: 10 Hz
- GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
- Shock Vibration: 100,000 cycles of 20 G
- Supply Voltage: 12 v DC (10.8-17VDC)
- Compass Safe: 12" (300mm)
- Display Resolution: 1280 x 720
- GPS Receiver Channels: 16
- NMEA 2000 Connectivity: 1x Micro-C
- SD Card Storage: 2 micro SD cards up to 32GB
- Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network
- Warranty Period: 2 Year + 3 additional years of upgrade options totalling 5 years
- Power Consumption typical: 2.0A @ 13VDC with Full Backlight, Sonar on
- Power Consumption min: 2.0A @ 13VDC with Full Backlight, Sonar on
- Power Consumption max: 2.9A @ 13VDC with Full Backlight, Sonar on
- Position Accuracy: 20m RMS
- Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails with up to 10,000 points per trail
- Time to First Fix: 30s
- Weight: 4.14lb (2.00kg)
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C)
- Radar compatibility: 4G (Broadband) 3G (Broadband) Halo24 (Pulse Compression Dome Radar) Halo 3'/4'/6' (Open Array Pulse Compression Radar)
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
- Recommended Fuse Rating: 5A
- Dimensions H x W x D: 6.56in (166.7mm) x 11.02in (280.0mm) x 3.05in (77.7mm)
- Humidity: 60°C, 95% relative humidity (RH) for 18 hours
- Internal Storage: 8.0 GB Internal
- Viewing Angles: 80° top/bottom, 80° left/right
- AIS: AIS Chart and Radar overlay. Target vessel details
- Charts supported: C-MAP (MAX N, MAX N+) C-MAP Genesis C-MAP Precision Contour HD (AMER ONLY) Navionics (Gold, NAV+ Platinum+)
Insight (Pro and HD) Lowrance Regional Mapping Partners
- Catography included: C-MAP US Enhanced Basemap (AMER models) C-MAP World Background (ROW models) Navionics basemap (AMER and ROW models)
- Steering Modes: Course Heading Waypoint Power Steer
- Manouevres Turn Patterns: Course Heading Waypoint Power Steer U-Turn C-Turn Spiral Zigzag Square Lazy-S
- Digital Switching: Czone, Naviop
- Correction: DGPS, WAAS
- Approvals Compliance: FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
- Mounting Type: Gimbal Bracket Front Dash Flush Mount Rear Dash Flush Mount
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Sonar Compatibility: Integrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Compatible with: SonarHub
StructureScan StructureScan3D
- Item Connectivity WiFi: Internal 802.11b/g/n and Compatible with WiFi-1 Module
- Waterproof rating: IPX7 with card door closed
- PC Connectivity: None
- Autopilot: Outboard PilotMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
- Video: Output: No Input: Composite video RCA - single channel via optional adaptor
- Backlight Colour: Pure White LED
- Multimedia: SonicHub SonicHub2 FusionLink products any NMEA 2000 compliant Marine Audio products
- Interface: Touchscreen: Full Multi-touch touchscreen Keypad: 8-way directional keypad Zoom +/- Exit Enter Menu Waypoint
Power/Light
What's in the box:
- HDS-9 LIVE Unit
- Active Imaging 3-in-1 Transducer
- PC-30-RS422 Power Cable for HDS Series
- HDS-9 LIVE Bracket
- HDS-9 LIVE Sun Cover
- HDS-9 Bezel and SD Door
