Maretron A3802-2 CKM12 12-Button Customisable Keypad

This CKM12 12 Button Customizable Keypad is part of the MPower Series by Maretron. It replaces standard mechanical circuit and switches with state-of-the-art digital power distribution. Customers looking to achieve the power and convenience of advanced home automation for their boats will appreciate MPower's seamless, reliable operation as well as simple and cost-effective installation. The CKM12 is a customizable keypad featuring laser-etched legends and dimmable LED function lights for each button. The LEDs also provide diagnostics when fault conditions are detected.

With the rugged mechanical packaging (IP69), the CKM12 can be installed inside or outside the cabin. The low-profile design offers a seamless dash-board look and it can be mounted either vertically or horizontally.

The CKM12 offers significant advantages over traditional electromechanical switches such as longer actuation cycle (1,000,000), reduced wiring harness and reduced installation time.

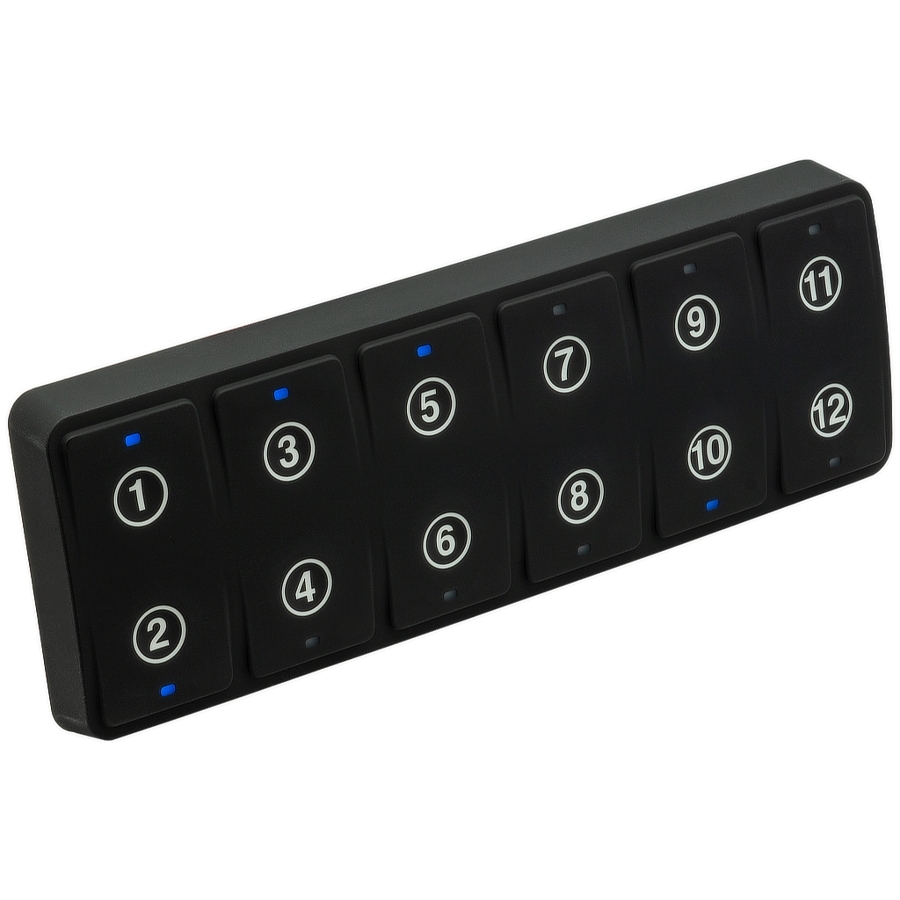

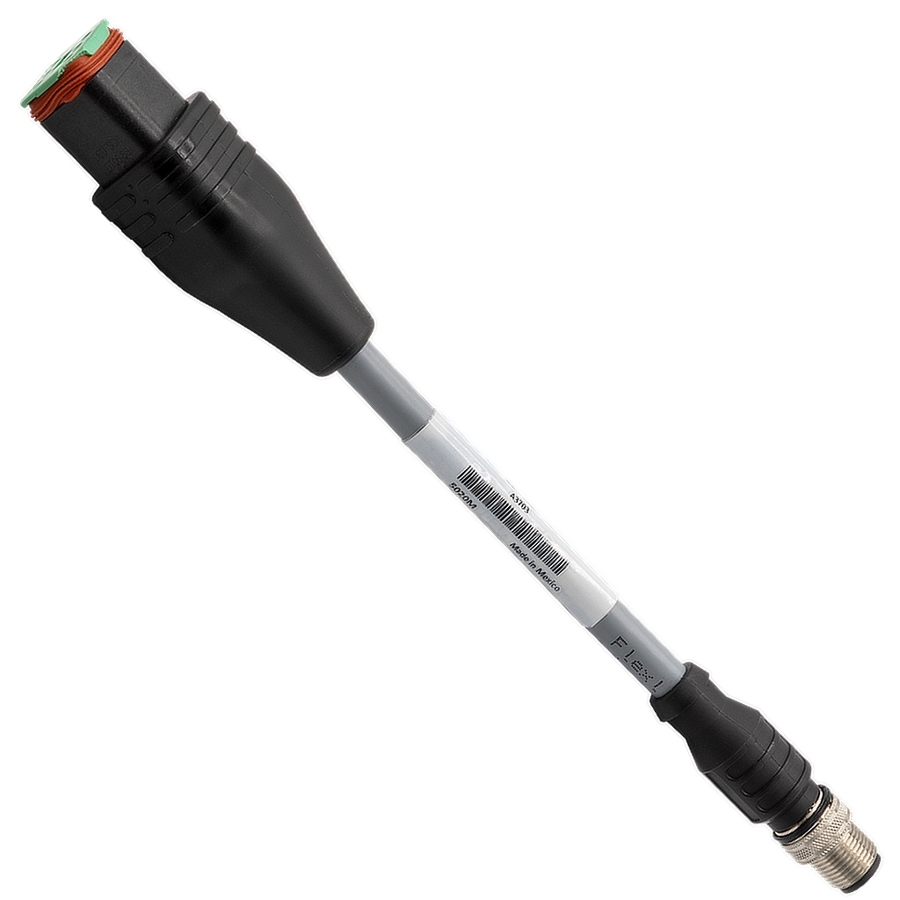

The CKM12 is sold off the shelf in two configurations of legends. Other legends are available on request. Each configuration includes a 0.2m NMEA 2000 pigtail adapter cable.

CKM12 requires configuration using Maretron USB100 or IPG100 plus PC running N2KAnalyzer V3.

• Brand: Maretron
• Connector: NMEA2000 Micro
• Exterior Color: Black
• Exterior Color: Black
• Cable-Length: 0.2 m (0.65')
• Comm Method: NMEA 2000
