Fusion AP-DA214 Zone Marine Amplifier 2-Channel

#9182570
Warranty Badge - 3-Years
Ships Dec 18 - Jan 5
ONLY $359.00

Seen a lower price? Ask us to beat it

Add Items to Cart
No payments or interest for 12 months*

💬 Report incorrect product information

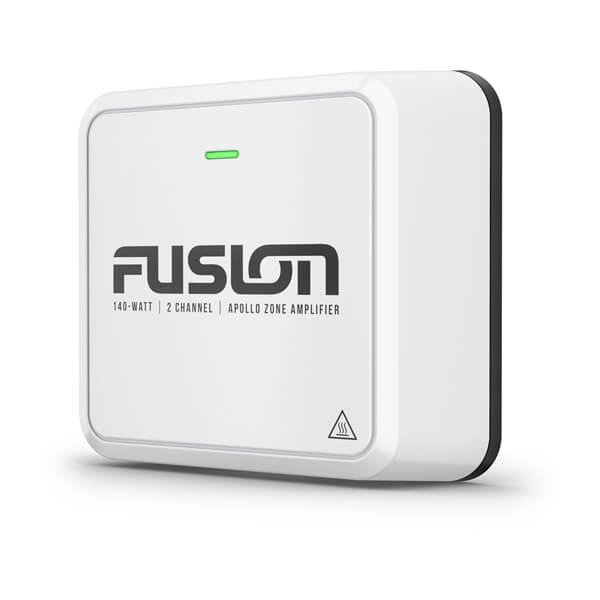

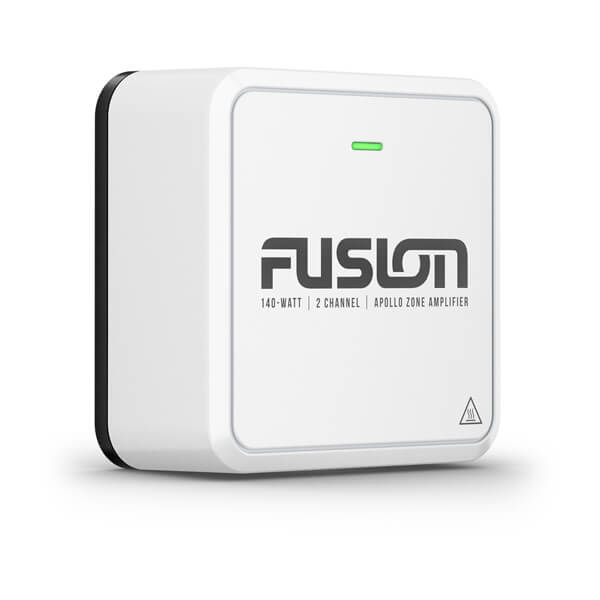

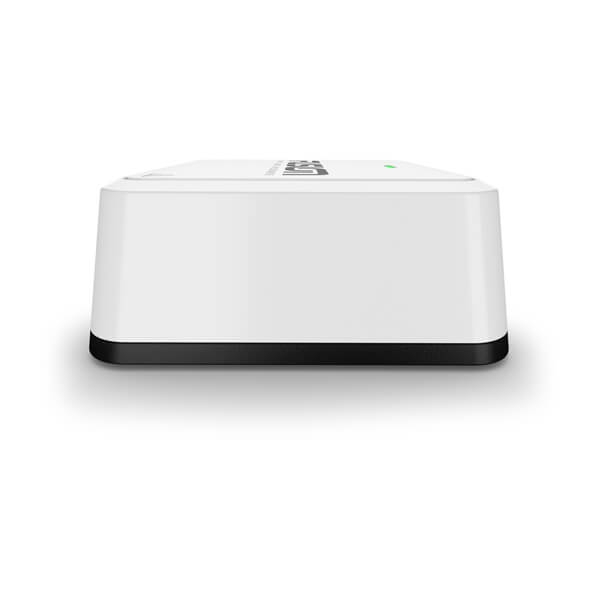

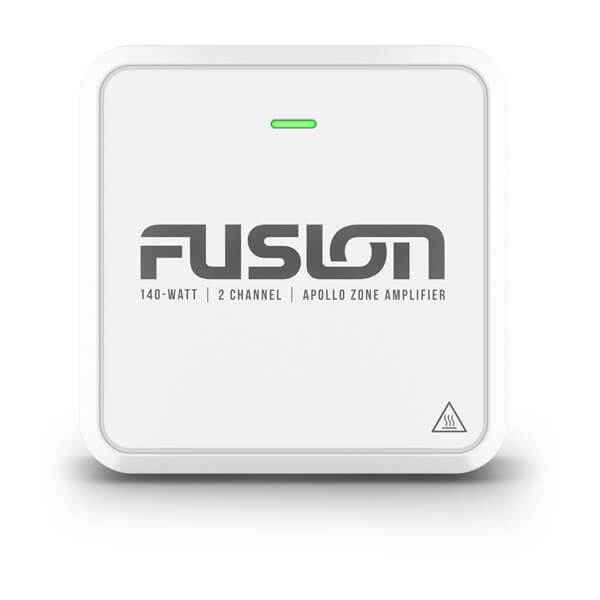

Fusion AP-DA214 Zone Marine Amplifier 2-Channel

Click on the image above to view full picture

More Views

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Fusion Signature 6-Channel Marine Amplifier 24V

Fusion Signature 6-Channel Marine Amplifier 24V
Why pay $1,099.00
ONLY $999.00
SAVE $100.00!
Details

Details

These efficient, easy-to-install amplifiers work with your compatible Fusion stereo system1 and let you choose from monoblock, multichannel and zone amplifier options.

POWER AND EFFICIENCY

The Apollo amplifiers are designed to produce impressive power with less drain on your battery. The monoblock produces 650-watt RMS and the 4/6/8 channel amplifiers produce 150-watt RMS per channel.

EASY TUNE FEATURE

These amplifiers use the Easy Tune feature2, which automatically regulates audio settings. So, you can get the best quality sound without making manual adjustments.

LESS DISTORTION

Some amplifiers distort audio when they add power. Ours are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes.

LED INDICATORS

Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts as well as temperature.

MOUNTING BRACKETS

Easily install the amplifiers on board with the included mounting brackets.

IGNITION PROTECTED

The ignition protected design helps prevent potential damage from overheating.

CONFORMAL-COATED PCBS

The amplifier's circuit board has been specially coated to provide extra protection from the marine elements.

2 OHM STABLE

You can connect up to two speakers per channel, increasing setup options.

FUSION TRUE-MARINE DESIGN

The amplifiers are designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration and UV.

Features:
  • Keep the music going for longer without draining your battery as quickly.
  • No more manual adjustments to your audio settings. The Easy Tune feature does it for you2.
  • A glance at the LED indicators lets you identify if the amplifiers have a short or if they're overheating.
  • These amps have less distortion and noise, so you enjoy quality audio.
  • Mounting brackets are included for simple installation.
  • Don't worry about potential overheating damage with Fusion's ignition protection design.

What's In the Box
    Apollo Monoblock Amplifier
    • One Apollo monoblock amplifier
    • One mounting bracket
    • One power connector
    • One speaker connector
    • Four 8-gauge, flat head self-tapping screws
    • Four 8-gauge, pan head self-tapping screws (for mounting bracket)
    • Four screw covers
    • Mounting template
    • Installation instructions
    • Important safety and product information (ISPI)
    Apollo 4 Channel Amplifier
    • One Apollo 4 channel amplifier
    • One mounting bracket
    • One power connector
    • Two speaker connectors with high power mode adaptors
    • Four 8-gauge, flat head self-tapping screws
    • Four 8-gauge, pan head self-tapping screws (for mounting bracket)
    • Four screw covers
    • Mounting template
    • Installation instructions
    • Important safety and product information (ISPI)
    Apollo 6 Channel Amplifier
    • One Apollo 6 channel amplifier
    • One mounting bracket
    • One power connector
    • Three speaker connectors with high power mode adaptors
    • Four 8-gauge, flat head self-tapping screws
    • Four 8-gauge, pan head self-tapping screws (for mounting bracket)
    • Four screw covers
    • Mounting template
    • Installation instructions
    • Important safety and product information (ISPI)
    Apollo 8 Channel Amplifier
    • One Apollo 8 channel amplifier
    • One mounting bracket
    • One power connector
    • Four speaker connectors with high power mode adaptors
    • Four 8-gauge, flat head self-tapping screws
    • Four 8-gauge, pan head self-tapping screws (for mounting bracket)
    • Four screw covers
    • Mounting template
    • Installation instructions
    • Important safety and product information (ISPI)
    Apollo Zone Amplifier
    • One Apollo zone amplifier
    • One mounting bracket
    • Three 6-gauge, self-tapping screws
    • Wiring loom
    • Installation instructions
    • Important safety and product information (ISPI)

Specifications:Overview
Physical dimensions without bracket (LxWxH) Monoblock/4 Channel: 9.25'' x 7.06'' x 1.75'' (235 x 180 x 45 mm)
6 Channel: 11.69'' x 7.06'' x 1.75'' (297 x 180 x 45 mm)
8 Channel: 14.13'' x 7.06'' x 1.75'' (359 x 180 x 45 mm)
Zone: 3.94'' x 3.94'' x 1.57'' (100 x 100 x 40 mm)
Physical dimensions with bracket (LxWxH) Monoblock/4 Channel: 9.25'' x 7.06'' x 2.13'' (235 x 180 x 50 mm)
6 Channel: 11.69'' x 7.06'' x 2.13'' (297 x 180 x 50 mm)
8 Channel: 14.13'' x 7.06'' x 2.13'' (359 x 180 x 50 mm)
Zone: 3.94'' x 4.53'' x 1.89'' (100 x 115 x 48 mm)
Weight Monoblock/4 Channel: 4.85 lb (2.2 kg)
6 Channel: 5.95 lb (2.7 kg)
8 Channel: 6.94 lb (3.15 kg)
Zone: 1.01 lb (460 g)
Monoblock/4/6/8 Channel: IPX2
Zone: IPX7
Amplifier class Class-D
CEA-2006 power rating Monoblock: 650 watt RMS x 1 @ 14.4 V input - 4 ohm < 1% THD
4 Channel: 150 watt RMS x 4 @ 14.4 V input - 4 ohm < 1% THD
6 Channel: 150 watt RMS x 6 @ 14.4 V input - 4 ohm < 1% THD
8 Channel: 150 watt RMS x 8 @ 14.4 V input - 4 ohm < 1% THD
Zone: 20 watt RMS x 2 @ 14.4 V input - 4 ohm < 1% THD
Total rated power output - 2 Ohm (Watts) Monoblock: 1100 watt RMS x 1 @ 14.4 V input - 2 ohm < 1% THD
4 Channel: 290 watt RMS x 4 @ 14.4 V input - 2 ohm < 1% THD
6 Channel: 290 watt RMS x 6 @ 14.4 V input - 2 ohm < 1% THD
8 Channel: 290 watt RMS x 8 @ 14.4 V input - 2 ohm < 1% THD
Zone: 30 watt RMS x 2 @ 14.4 V input - 2 ohm < 1% THD
Peak power (Watts) 4 Channel: 580 watt RMS x 2 @ 14.4 V input - 4 ohm Bridged < 1% THD
6 Channel: 580 watt RMS x 3 @ 14.4 V input - 4 ohm Bridged < 1% THD
8 Channel: 580 watt RMS x 4 @ 14.4 V input - 4 ohm Bridged < 1% THD
Total rated power output - 4 Ohm Bridged (Watts) Monoblock: 2000 watts
4 Channel: 1200 watts
6 Channel: 1800 watts
8 Channel: 2400 watts
Zone: 140 watts
Input sensitivity Monoblock: 2.15 V RMS
4/6/8 Channel: 1.3 V RMS
Zone: 0.45 V RMS
Input impedance Monoblock/4/6/8 Channel: 22k ohm
Zone: 9k Ohm
Operating voltage Monoblock/4/6/8 Channel: 10.8 V - 16 V DC
Zone Amplifier: 10.8 V - 32 V DC
Current consumption (StandBy) Monoblock/4/6/8 Channel: < 5 mA @ 14.4 V input
Zone: < 1 mA @ 14.4 V input
Current consumption (Idle) Monoblock: < 0.89 A @ 14.4 V input
4 Channel: < 1.15 A @ 14.4 V input
6 Channel: < 1.32 A @ 14.4 V input
8 Channel: < 1.60 A @ 14.4 V input
Zone: < 0.04 A @ 14.4 V input
Current consumption (Max) Monoblock: 87 A
4 Channel: 53 A
6 Channel: 78 A
8 Channel: 104 A
Zone: 10 A
Fuse rating Monoblock/6/8 Channel: 125 A electronic fuse (no replacement necessary)
4 Channel: 85 A electronic fuse (no replacement necessary)
Zone: 16 A electronic fuse (no replacement necessary)
Ignition Safety Protected (SAE J1171) Yes
Protection circuits Reverse voltage
Input under/over voltage
Over temperature
Output short circuit
Operating temperature range 0 degrees to 50 degrees C
Warranty 3 years
