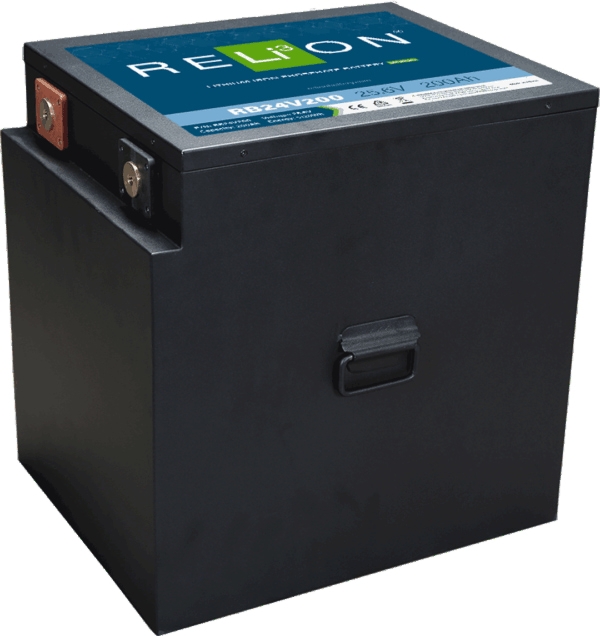

RELiON 24V 200AH DIN LiFePO4 Battery

The item you're looking at is currently unavailable or has limited stock, how about this one instead?

RELiON RB100 LiFePO4 Rechargeable Lithium Deep Cycle Battery 12V 100Ah

ONLY $1,499.00

Details

Details

This 24V 200Ah lithium iron phosphate battery is perfect in many solar applications. It maintains consistent power and is equipped with an M10 terminal type and a built-in battery management system (BMS). The RB24V200 battery meets UL, CE and IEC certifications.

All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.

PRODUCT SPECIFICATIONS

• Voltage: 25.6V
• Amp Hours: 200Ah

DIMENSIONS and WEIGHT

• Length: 16.1 in (410 mm)
• Width: 14.4 in (367 mm)
• Height: 16.4 in (417 mm)
• Weight: 110.2 lbs (50 kg)

APPLICATIONS

• Solar

Specifications:

Electrical Specifications
Nominal Voltag	25.6v
Nominal Capacity	200Ah
Capacity @ 25A	480 min
Energy	5120 Wh
Resistance	?35 mohms @ 50% SOC
Efficiency	99%
Self Discharge	<3% per Month
Maximum Modules in Series	1 (Single Use)

Mechanical Specifications
Dimensions (L x W x H)	16.1 x 14.44 x 16.4 (410 x 367 x 417 mm)
Weight	110.2 lbs (50 kg)
Terminal Type	M10 x 1.5
Terminal Torque	110 - 125 in-lbs (12.2 - 14 N-m)
Case Material	Steel Case
Enclosure Protection	IP65
Cell Type- Chemistry	Cylindrical - LiFePO4

Discharge Specifications
Maximum Continuous Discharge Current	200 A
Peak Discharge Current	250 A (7.5 s plus or minus 2.5 s)
BMS Discharge Current Cut-Off	575 A plus or minus 60 A (12.5 plus or minus 7.5 ms)
Recommended Low Voltage Disconnect	22V
BMS Discharge Voltage Cut-Off	18.4 V (2.3 plus or minus 0.1 vpc) (100 plus or minus 50 ms)
Reconnect Voltage	20 V (2.5 plus or minus 0.1 vpc)
Short Circuit Protection	200-600 ?s

Charge Specifications
Recommended Charge Current	10 A - 100 A
Maximum Charge Current	200 A
Charge Current 32 degrees F to 14 degrees F (0 to -10 degrees C)	?0.1 C
Charge Current -4 degrees F to 14 degrees F (-20 to -10 degrees C)	?0.05 C
Recommended Charge Voltage	28.4 V - 29.2 V
BMS Charge Voltage Cut-Off	30.8 V (3.85 plus or minus 0.05 vpc) (1 plus or minus 0.05 s)
Reconnect Voltage	29.2 V (3.65 plus or minus 0.05 vpc)
Balancing Voltage	28.8 V (3.6 plus or minus 0.025 vpc)

Temperature Specifications
Discharge Temperature	-4 to 140 degreesF (-20 to 60 degrees C)
Charge Temperature	-4 to 113 degrees F (-20 to 45 degrees C)
Storage Temperature	23 to 95 degreesF (-5 to 35 degrees C)
BMS High Temperature Cut-Off	149 degreesF (65 degrees C)
Reconnect Temperature	122 degreesF (50 degrees C)
Refer to charge currents below 0 degreesC (32 degreesF)

Compliance Specifications
Certifications	UN38.3 and CE (battery)
	UL1642 (cells) (File# MH64523)
	IEC62133 (cells)
Shipping Classification	UN 3480, CLASS 9

Product Data Sheet
