Get more coverage under your boat
The Airmar B275 CHIRP Wide-Beam Thru-Hull Transducer offers a high frequency range of 150-250 kHz and a constant 25° beam width. This transducer is truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers.

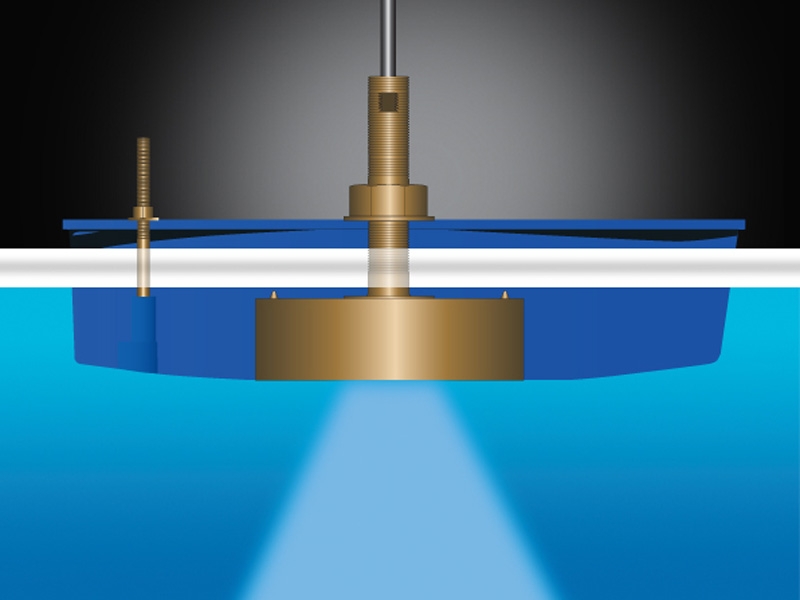

A unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.
XSONIC Connector
Airmar XSONIC Transducers come with the new 9-Pin Black XSONIC connector. This transducer is compatible with Lowrance HDS Gen3, HDS Carbon and Elite-7 ti models. No need to mix, match or splice. Just plug and go!
Airmar B275 CHIRP Wide-Beam Thru-Hull Transducer Features:
- Depth and fast-response water-temperature sensor
- Low—CHIRPS from 42 kHz to 65 kHz
25° to 16° beamwidth - High—CHIRPS from 150 kHz to 250 kHz
25° constant beamwidth - 123 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz plus
everything else in the bandwidth
- Boat Size: 8 m (25’) and above
- Hull Type: Fibreglass or wood
- Bronze transducer housing
- XSONIC connector 9-Pin
Airmar B275 CHIRP Wide-Beam Thru-Hull Transducer Specifications:
- Hull Deadrise: Up to 20° with fairing
- Acoustic Window: Urethane
- Weight: 7.3 kg (16 lb)
