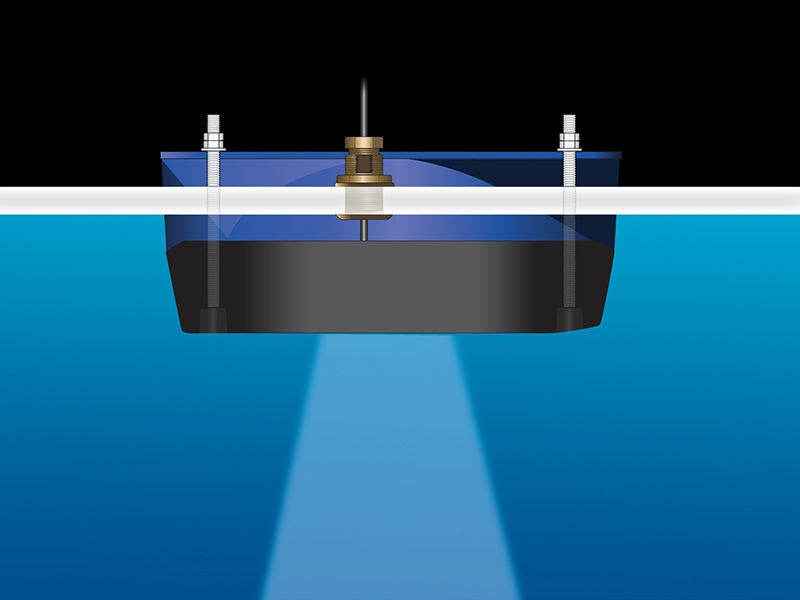

Get more coverage under the boat
The Airmar XSONIC R5090LH-W Low/High Wide CHIRP Thru-Hull Transducer offers high frequency range of 150-250 kHz and a constant 25° beam width. Using the new wide beam transducers will achieve twice the coverage under the boat compared to other high frequency Chirp transducers. The beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, the new wide beam format also creates crisper and larger return images on the display.
XSONIC Connector
Airmar XSONIC Transducers come with the new 9-Pin Black XSONIC connector. This transducer is compatible with Lowrance HDS Gen3, HDS Carbon and Elite-7 ti models. No need to mix, match or splice. Just plug and go!
Airmar XSONIC R5090LH-W Low/High Wide CHIRP Thru-Hull Transducer Features:
- Depth and fast response water-temperature sensor
- CHIRPs across the following bandwidths:
Low Frequency 28 to 60 kHz
High Frequency 150 to 250 kHz - 25 internal Broadband Ceramics
- Epoxy housing with stuffing tube and high-performace
fairing
- Boat size: 12 m (40’)
- Hull Type — Fiberglass, Wood, Metal
- Engine Type: Inboard, Outboard or I/O
- Can retrofit to existing R209 install
- XSONIC 9-Pin connector
Airmar XSONIC R5090LH-W Low/High Wide CHIRP Thru-Hull Transducer Specifications:
- 132 kHz of total bandwidth from one transducer
- Low Frequency:
28 kHz to 60 kHz
23° to 9° port/star
11° to 5° fore-aft beamwidth
Maximum depth 10000 ft - High Frequency
150 kHz to 250 kHz
25° constant beamwidth
Maximum depth 500 ft - Hull Deadrise: 0° to 25°
- Acoustic Window: Epoxy/urethane
- Weight: 20.8 kg (46 lb)
