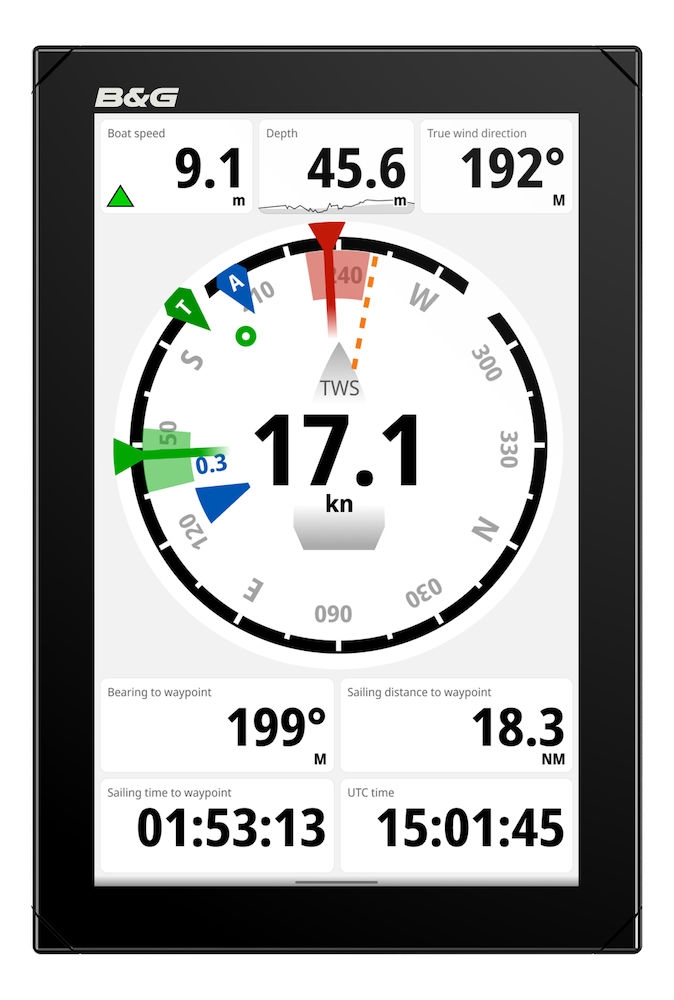

B&G Nemesis 12 Sailing Display

Nemesis 12 is the perfect solution for displaying all the crucial sailing data you need, on the mast or at the helm. The super bright touch screen provides outstanding visibility, from anywhere on the boat, in all conditions. Completely customisable; choose from pre-set templates, set up automatic point of sail dashboards or entirely create your own. You can view your trusted sailing data in precisely the way you want to, ensuring you get the most accurate data right in front of you, all the time.

THE INTELLIGENT SAILING DISPLAY

This intelligent sailing display offers unparalleled visibility from all angles and distances on-board, and with complete data customisation or a choice of easy to use multi-function templates and automatic dashboards based on your point of sail, whether racing or cruising, you will never be out of touch. The Nemesis display allows you to define what data you see, when and how you see it, no matter what the conditions, providing an intuitive link between your trusted instrument network and the real world.

VISIBILITY and VERSATILITY

A bright touch screen, with super-wide viewing angles and the ability to view with polarised sunglasses from anywhere on-board. With adjustable data sizes, palettes and backlighting, this display offers optimal viewing in all conditions, whether on the mast or in the cockpit.

COMPLETE CUSTOMISATION

This all-in-one customisable display can be mounted in either portrait or landscape. The easy to use drag and drop editor provides a wide choice of graphical gauges, SailSteer, tank levels, digital data, IP camera views, histograms and images. With this, you have the freedom to select the data, visualisation and set size and position that you want; or you can simply choose from a choice of pre-selected built-in BandG dashboards and templates.

Additional automatic context modes allow you to choose the sailing data you want to display based on your point of sail or sailing mode: Upwind, Reaching, Downwind, Pre-start or Motoring.

(Requires H5000 CPU)

INTEGRATION and CONTROL

The use of commercial grade components, hours of testing and development by sailors in all conditions, combined with the most accurate sailing data available from your BandG network and instruments, will ensure you have complete trust in Nemesis. The reliability and accuracy of both the data and the display will give you the confidence you need to make the right decisions. Control your display on the touch screen or via an Apple Watch - compatible with Apple Watch Series 3 and above.

• Pre-set dashboards or easy to use drag and drop editor for full customisation
• Wide choice of digital data displays including graphical gauges, SailSteer, tank levels, IP camera views, histograms and images
• Context modes: Upwind, Reaching, Downwind, Pre-start, Motoring
• Bright touch screen, with super-wide viewing angles
• Adjustable palettes and backlight for optimal view in all conditions
• Mount in portrait and landscape
• Connect multiple screens via the Nemesis Hub
• Ethernet and/or NMEA2000

Specifications

Display Resolution

1280 x 800

Screen Brightness

1500 nits

Waterproofrating

IP67

Ethernet Ports

1 x 100 Mbit

NMEA 2000 Connectivity

1 x NMEA 2000 Micro-C, 1 LEN

Supply Voltage

10 - 32 V DC

Operating Temperature Range

-15 degrees C to +55 degrees C (-5 degrees F to 131 degrees F)

Power Consumption max

19W

Recommended Fuse Rating

2 Amp

Warranty Period

2 years

Storage Temperature Range

-20 degrees C to +60 degrees C (-4 degrees F to 140 degrees F)

Compass Safe

300mm (12')

Dimensions W x H x D

310 x 208 x 72mm (12.2 x 8.2 x 2.8')

Viewing Angles

80 top/bottom, +/ 80 left/right

Connectivity Wi Fi

802.11 b/g

Languages

Chinese[simplified], Dutch, English, Finnish, French, German, Italian, Norwegian, Portuguese, Spanish, Swedish

Mounting Type

Flush, Panel

Interface

Touch Screen
