Enhance your situational awareness and on-water safety

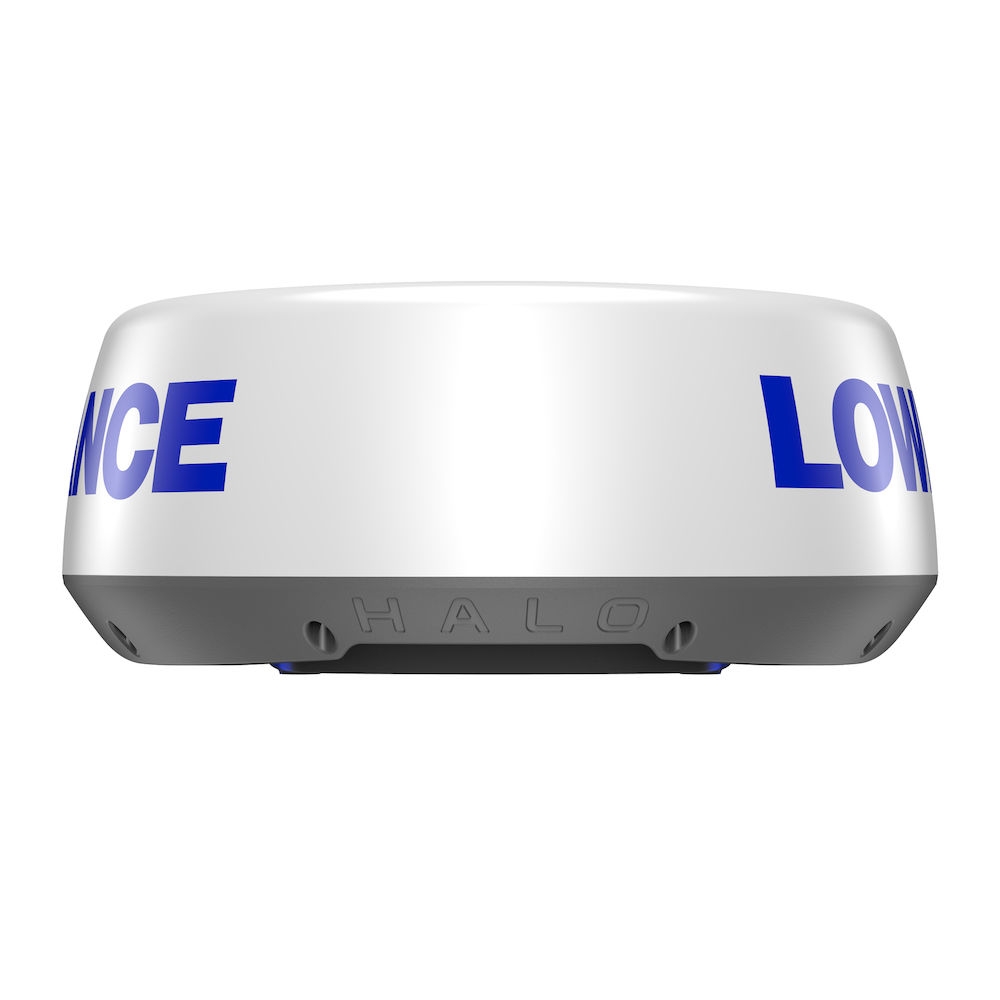

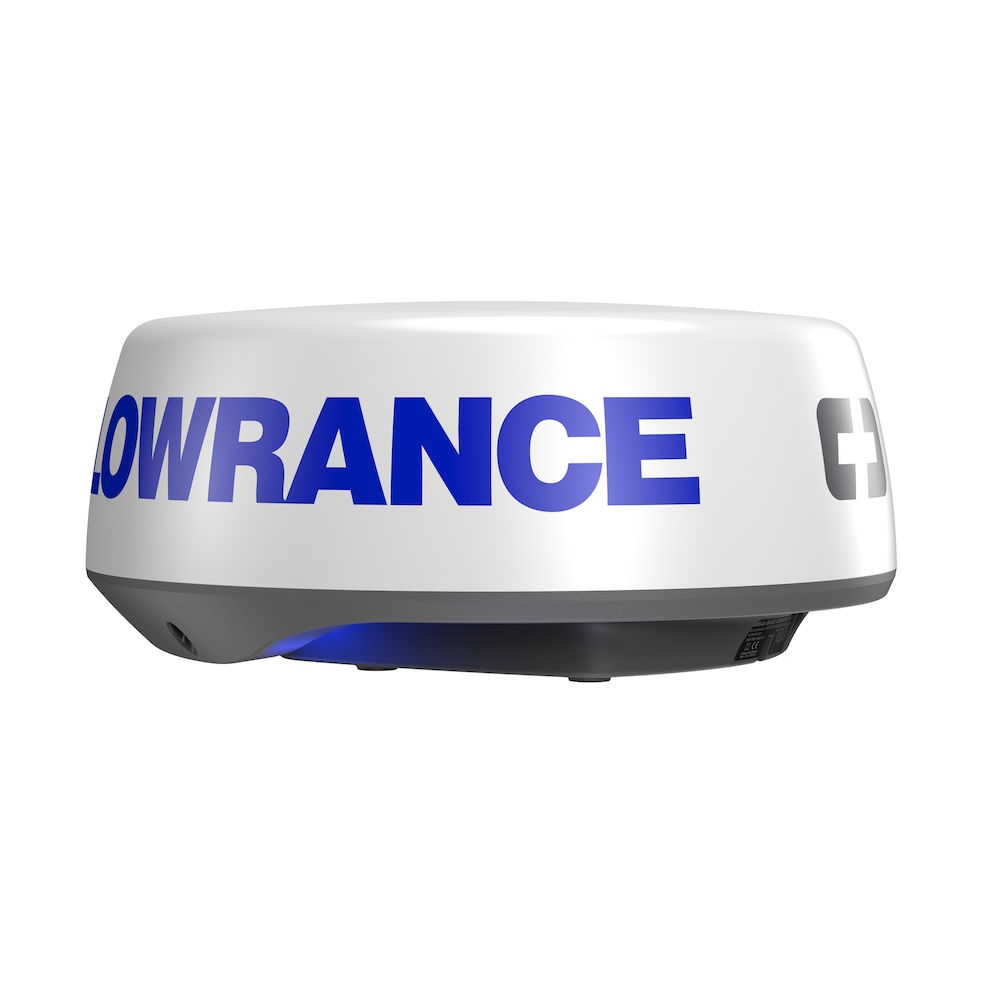

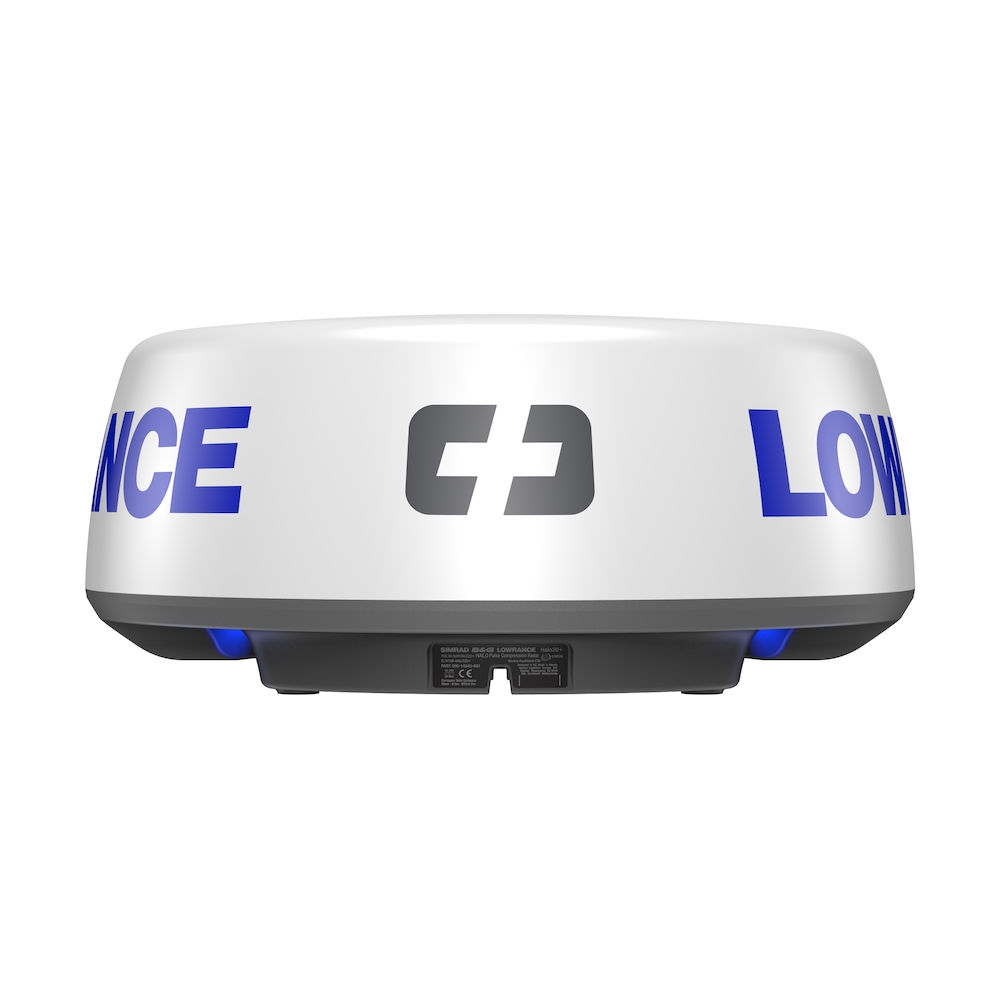

Get an almost real-time view with Lowrance HALO20+ 20'' Radar. Industry-leading 60 RPM operation at close range provides the best in collision avoidance. Identify hazards instantly with VelocityTrack™ Doppler technology, and enjoy both short and long-range coverage—up to 36 nautical miles—from a compact 20-inch dome antenna.

See near and far with one compact dome
Perfect for coastal bay and fishing boats, HALO20+ radar is a compact dome antenna that delivers high-quality short, mid and long-range detection. Monitor two distances at once in Dual Range mode which lets you keep an eye on faraway weather cells while looking for closer collision hazards. Pulse compression technology means no compromises in detection at either range, and beam sharpening provides improved separation between small or distant targets.

The best view for collision avoidance
HALO20+ radar performs a full 360 degree sweep every second because of its industry-first 60 RPM rotation at distances of up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, the best view for collision avoidance of fast-moving targets.

VelocityTrack Doppler Technology Built-In
VelocityTrack technology gives instant visual feedback on whether targets are approaching or moving away. Simple colour coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision. HALO20+ radar automatically checks every target in range; no need to manually select individual targets, and no limit to the number of targets on screen at one time.

Ready when you are
HALO20+ Radar wakes instantly from its low-power standby mode, delivering high-speed radar coverage exactly when and where you need it. Even if your HALO20+ Radar is switched off, start-up is a matter of seconds, not minutes like traditional pulse radar. Whether you're navigating crowded waterways or dealing with poor visibility, HALO20+ Radar immediately analyses your surroundings to give you a clear and current picture.

Easy to use
Bird mode provides anglers with the ability to track the tell-tale sign of fish in range. Plus, Harbour, Offshore, Weather and custom modes tune HALO20+ Radar's advanced signal processing to ensure that any targets can be seen clearly – even in the toughest environmental conditions.

Lowrance HALO20+ 20'' Radar Features:

• 36 nm range from a compact 20-inch dome

• Advanced pulse compression technology with beam sharpening

• Simultaneous Dual Range operation sees both near and far

• Ultra-fast 60 RPM operation at ranges up to 1.5 nm

• VelocityTrack Doppler technology for collision avoidance

• Easy operation with harbour, offshore, weather, and bird modes

• MARPA target tracking (up to 10 targets, 20 in dual range)

• Ready instantly from standby


Lowrance HALO20+ 20'' Radar Specifications:

• Supply Voltage: 10.5 - 31.2 VDC (12/24V systems)

• Max Wind Speed: 100 knots (51 m/s)

• Warranty Period: 2 Years

• Power Consumption typical: 20W

• Operating Temperature Range: -25° to + 55°C (-13° to +130°F)

• Power Consumption max: 29W

• Max Range, scale: 36 NM

• Beam width: 4.9° H nominal (-3dB) 2.5° with target separation on high x 25° V

• Weight: 5.9 kg (13 lbs) without cable

• Min Range, scale: 50 m / 200 ft / 50 yd

• Dimensions Diameter: 510mm (20")

• Dimensions (W x H x D): 510mm dia x 223 mm H. (20" dia x 8.8" H)

• Recommended Fuse Rating: 5A

• Humidity: 95% RH at 35°C (95°F)

• Approvals Compliance: FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety

• Radar Modes: Harbour, Offshore, Weather, Bird, Dual Range, North Up, Course Up, Relative motion, True Motion

• Waterproofrating: IPX6

• Radar Technology: Pulse Compression

• Interface: Lowrance MFD

• Rotation speed: Up to 60 RPM (Range Dependent)
