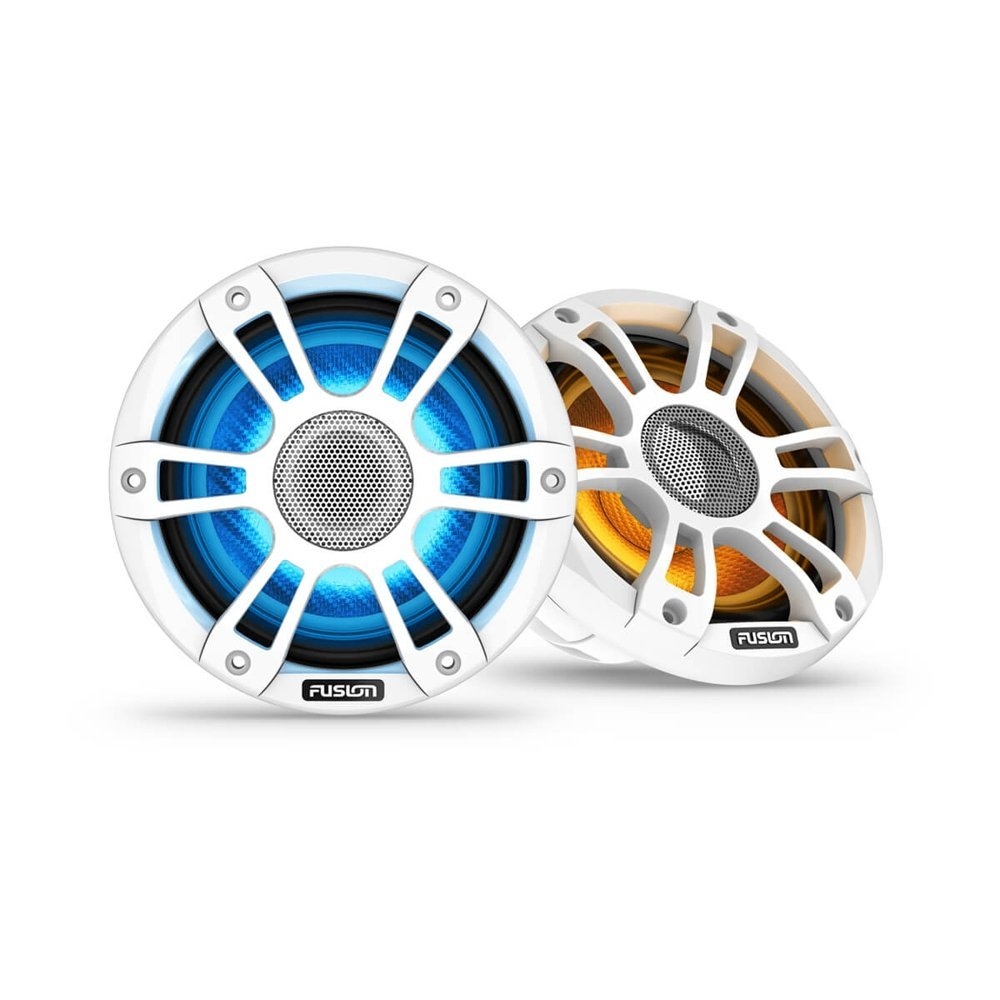

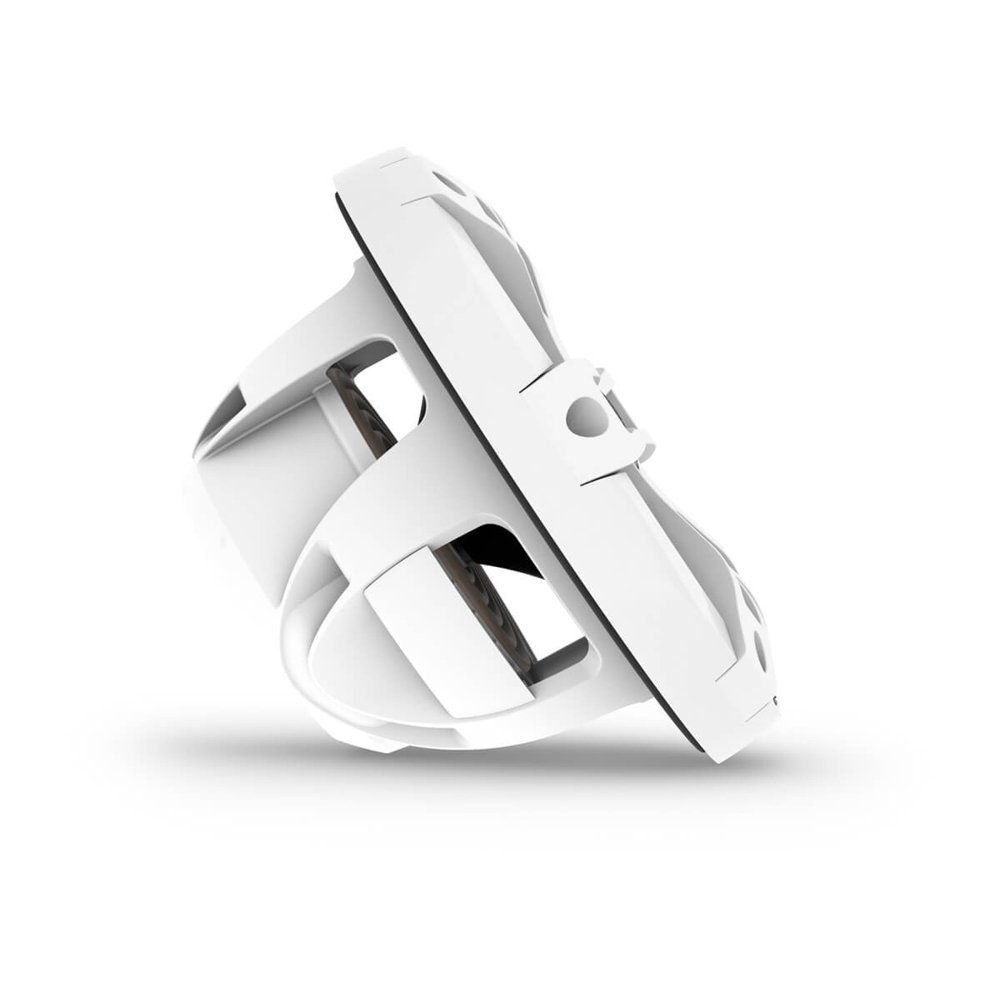

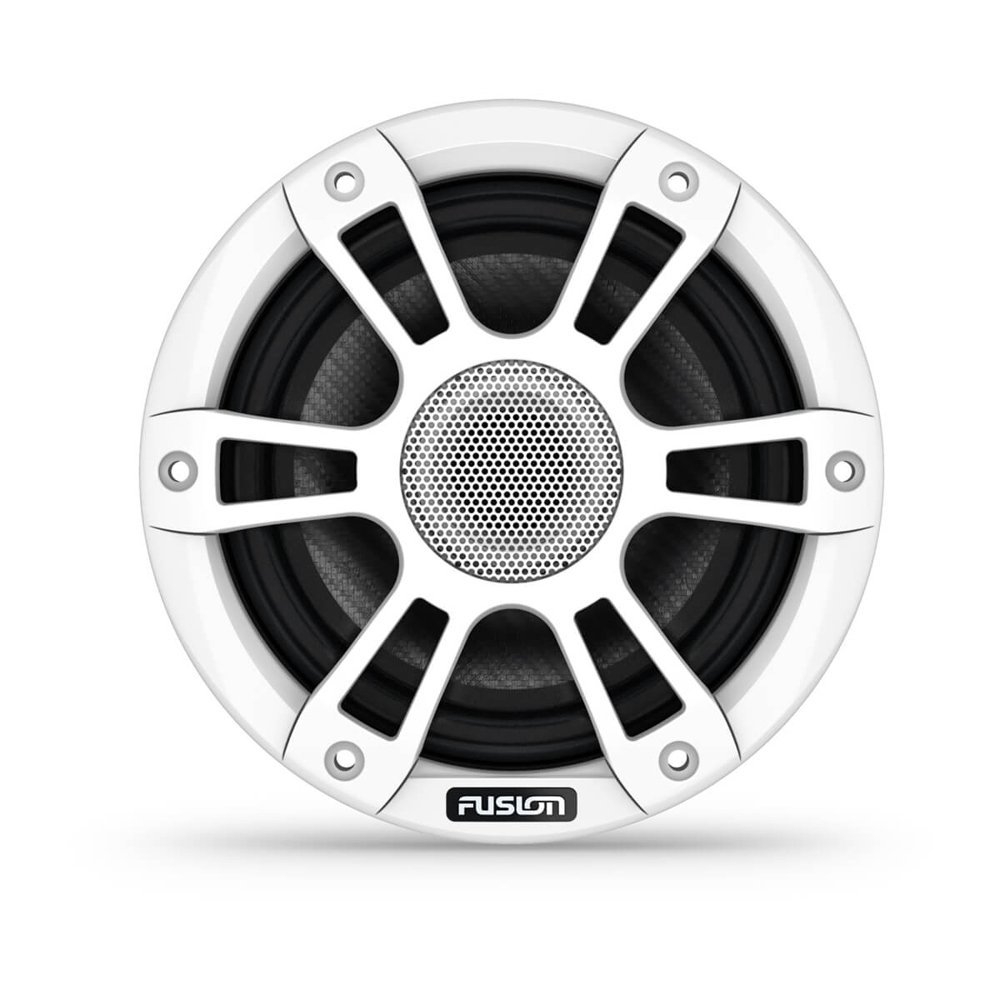

Fusion Signature 3i Sports LED Marine Coaxial Speakers White 6.5in 230W

Premium crystal-clear audio on board

Bring on the elements and ride the beat on the waves with the Fusion Signature 3i Sports LED Marine Coaxial Speakers. These coaxial speakers deliver crystal-clear audio and withstand marine conditions like never before. The marinised design has been rigorously tested and rated to IP65 for the utmost defence against the elements. Plus, water-resistant connectors provide simplified installation and superior protection. Backed by a 3-year warranty, Fusion Signature 3i Sports LED Marine Coaxial Speakers are built to last season after season.

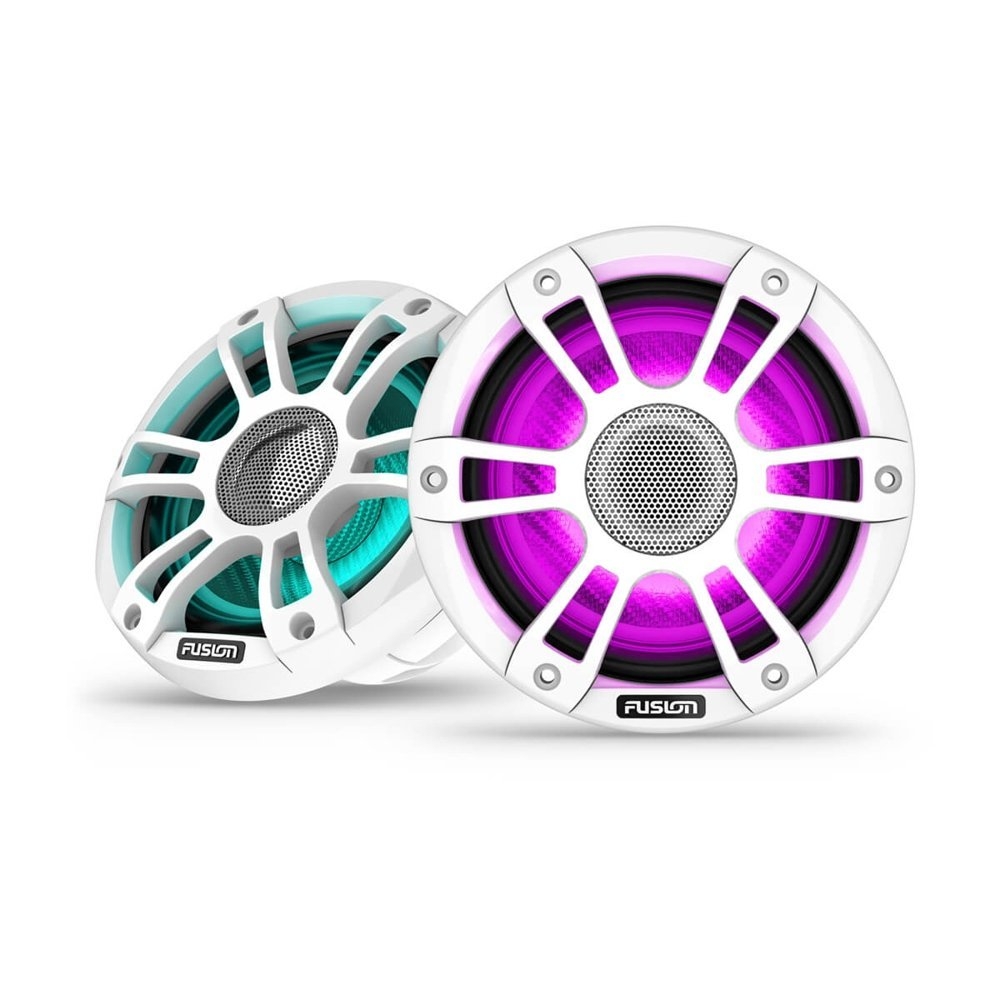

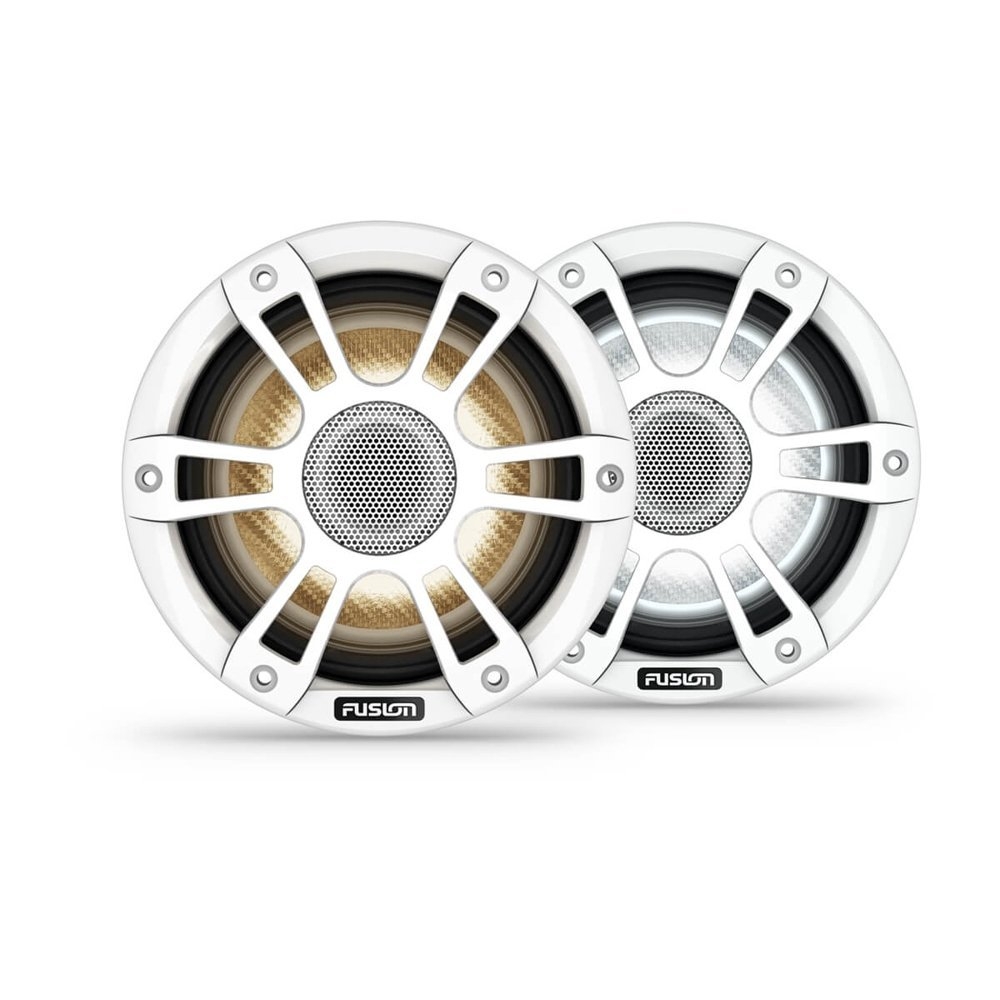

LED Illumination
This CRGBW LED sports-style version of the Signature Series 3i lets you set the scene on your boat with colourful LED illumination. You can choose a colour to match the mood of your music - cool white, red, green, blue or warm white.

Marinised Connectors
New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment.

Redesigned Grille
Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year.

True-Marine Philosophy
Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year warranty.

Curv Cone Technology
A lighter and stronger woven fibre composite produces greater sound definition at a higher volume.

System Integration
These speakers are designed to work optimally with Fusion stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion-Link smart-device app for setup.

Fusion Signature 3i Sports LED Marine Coaxial Speakers Features:

• LED illumination
• CRGBW light colour choices
• Sports style grille
• Suited for the marine environment
• Water-resistant connectors
• Simplified installation
• IP65 protection rating
• Curv cone technology
• Greater sound definition at a higher volume
• Works optimally with Fusion stereo systems and amplifiers (sold separately) with custom DSP profiles
• Backed by a 3-year warranty
• Sold as pair

Fusion Signature 3i Sports LED Marine Coaxial Speakers Specifications:

• Dimensions (diameter x depth): 6.93 x 4.11in (176 x 104.5 mm)
• Weight (single unit): 1.32 kg
• Water and dust rating: IP65
• Configuration: Coaxial
• Peak power (Watts): 230 watts
• RMS power rating (watts): 75 watts
• Sensitivity (1 watt @ 1 metre): 90 dB
• Frequency response: 70 Hz-22 kHz
• Nominal impedance: 4 ohm
• Recommended amplifier power (watts RMS): 30-90 watts/channel
• LED lighting: yes, CRGBW
• LED supply voltage: 10.8-16 VDC
• LED load current @14.4 VDC (max): 300 mA
• Operating temperature range: 32-122 degrees F (0-50 degrees C)
• Voice coil diameter: 1.2in
• Cone material: CURV Cone Technology with rubber surround
• Tweeter type: Silk dome
• Compass-safe distance: 122in (310 cm)
• Speaker connection: Flying lead with water-resistant 2-way connector, 5.9in (150 mm)
• Warranty: 3 years
• Mounting diameter clearance: 5.35in (136 mm)
• Mounting depth clearance: 3.11in (79 mm)
• Optimum enclosure recommendations:

  • Sealed enclosure volume (fully filled with absorption material): 0.64 cubic ft (18 L)
  • Ported (vented) enclosure volume (lined with absorption material): 0.88 cubic ft (25 L)
  • Port diameter: 3in (76 mm)
  • Port length: 6.4in (162 mm)

What’s in the box:

• 1 x Pair of Fusion Signature 3i Sports LED Marine Coaxial Speakers
• 12 x Phillips stainless steel mounting screws 4.2 mm x 40 mm (8 gauge x 1.6)
• 2 x Water-resistant cable assemblies with 2-pin connector 5.9in (150mm)
• 2 x Water-resistant cable assemblies with 6-pin connector 5.9in (150mm)

Fusion Signature 3i Sports LED Marine Coaxial Speakers Product Data Sheet
