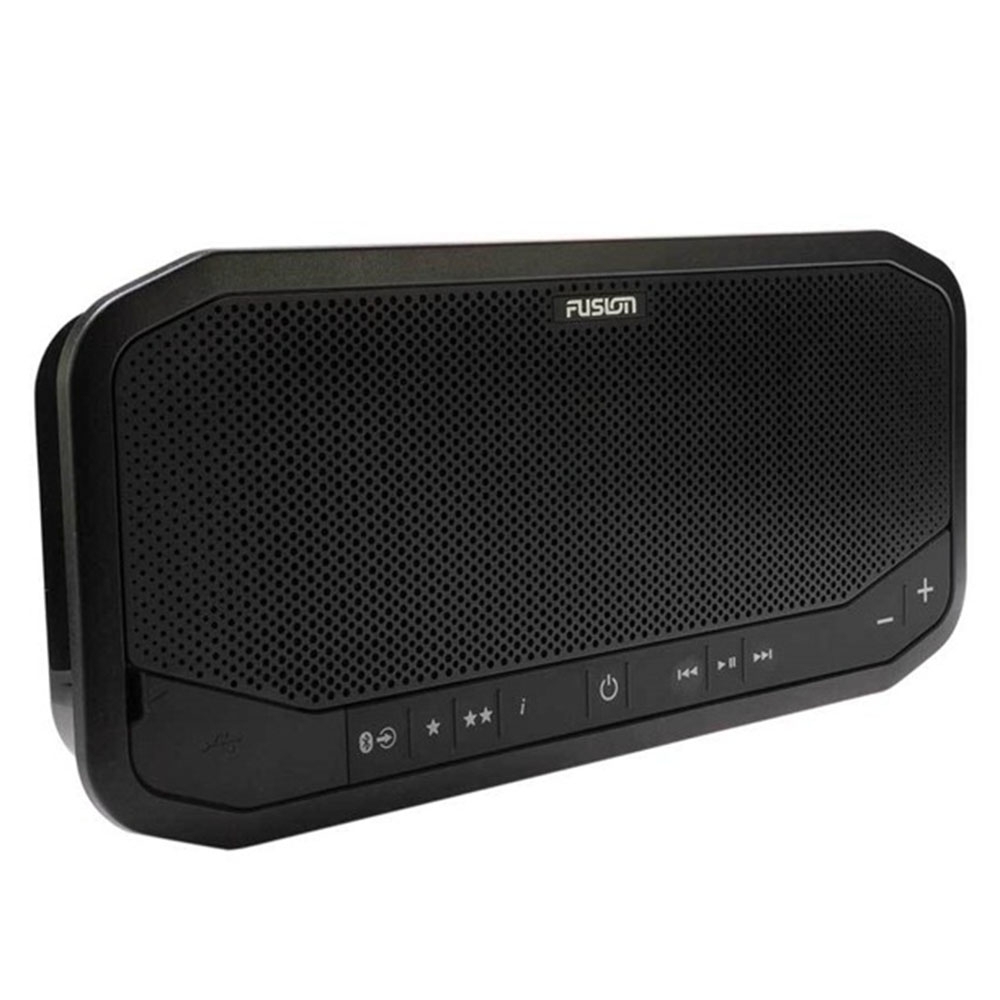

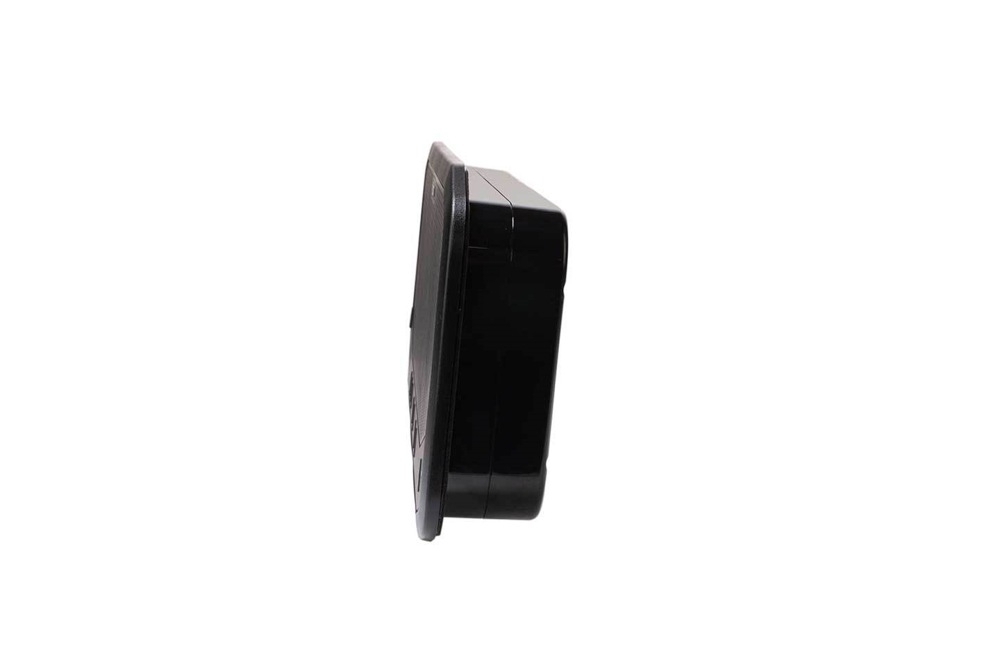

Fusion PS-A302BOD Panel-Stereo Outdoor All-In-One Audio Entertainment System

The ultimate all-in-one audio entertainment solution for outdoors

Enjoy peace of mind that your stereo will last the test of time on board, even when installed outdoors, with IP65 weather resistance for protection against water and dust ingress, and now salt fog and UV resistance. Combining all the elements required for excellent audio reproduction inside a single perfectly tuned enclosure, the Fusion PS-A302BOD Panel-Stereo Outdoor All-In-One Audio Entertainment System is the ultimate simple solution for quality audio anywhere on your boat.

Weather Resistant Design
Engineered to withstand the marine elements, the Panel-Stereo Outdoor is IP65 water and dust resistant, while meeting industry standards for salt and UV protection.

Hi-Fi Audio Reproduction Through DSP
Digital Signal Processing optimizes the entire audio chain, ensuring the speaker components always receive premium quality audio for an efficient, incredibly smooth frequency response and Hi-Fi audio reproduction at every volume level.

Plug and Play All-In-One Audio Entertainment Solution
With built-in Class-D amplification, stereo source selection of Bluetooth, AM/FM radio, USB and AUX, two 3 speakers and a large surface bass radiator all combined in a perfectly tuned enclosure, the Panel-Stereo provides a one-product solution for audio entertainment. All the acoustic parameters have been calculated by Fusion's acoustic engineers and taken into consideration when designing the enclosure to ensure quality audio reproduction wherever the Panel-Stereo is installed.

Simple, Versatile and Cost-Effective Installation
Designed for easy installation, the Panel-Stereo only requires 12V dc power, ground and AM/FM antenna connections. With three mounting options available to create a professional finish with a maximum of only one cut-out required, the Panel-Stereo is a seriously versatile solution. The 43mm (1.69in.) surface mounting spacer allows installation directly onto any flat surface with no cut-out required, and its shallow depth allows for installation in a shallow wall cavity, either installed flush or flat for a premium finish.

Bluetooth Wireless Technology
Stream your family's favorite soundtrack from any compatible Bluetooth enabled device with Bluetooth audio streaming. Control is available from either the Panel-Stereo or the connected device.

Voice Prompts
Audible feedback is given as you cycle through music sources, change stations and save presets. These voice prompts are available in English, French, German, Dutch, Italian, Japanese, Mandarin and Spanish.

Fusion-Link Control
Enjoy the freedom of wireless control of your audio entertainment from your compatible Apple or Android device with the free Fusion-Link app via Bluetooth. Download the free Fusion-Link Lite app to enable wireless control via ANT Technology from your compatible Garmin watch.
Fusion PS-A302BOD Panel-Stereo Outdoor All-In-One Audio Entertainment System Features:

• Weather-resistant design

• Hi-Fi audio reproduction through DSP

• Simple, versatile and cost-effective installation

• Bluetooth wireless technology

• Voice prompts

• Fusion-link control

Fusion PS-A302BOD Panel-Stereo Outdoor All-In-One Audio Entertainment System Specifications:

Sources	AM/FM / Bluetooth / USB / AUX x 2
Speakers	2 x 3 in. speakers with 1 x passive radiator
Weight	1.15kg (2.54 lbs.)
Fusion-Link Control (Wireless)	Yes
Bluetooth Wireless Technology	Bluetooth audio streaming and control within 10m (33ft.) range (via devices compatible with A2DP/AVRCP 1.3 / SSP Bluetooth profiles). Bluetooth version 4.1
ANT Technology	Yes - up to 3m (10 ft.) range
Wireless Frequency / Protocol	Bluetooth / ANT frequency: from 2,402 to 2,480 MHz Bluetooth/ANT max. power: 9 dBm EIRP
Internal Amplifier	Class-D, 2 x 43 W rms @ 14.4 V dc input, ? 1% THD+N
Weather Resistance (IPX Rating)	IP65 (sealed chassis)
Peak Power	140 W max. (2 x 70 W)
Multiple Languages Available	English, French, German, Dutch, Italian, Japanese, Mandarin and Spanish voice prompts are available. Software updates for each language are available for download from www.fusionentertainment.com
Auxiliary Inputs	2 x stereo RCA inputs (AUX IN 1, AUX In 2) with 1 V rms typical AUX input level
USB	1 x USB type A port for USB flash drive or media player connection. Also provides 1A charging
Line Out	1 x stereo RCA output with 5.5V (peak to peak) max. line output level
Input Voltage	10.8 - 16.0 V dc
Current (max.)	10A
Fuse	10A
