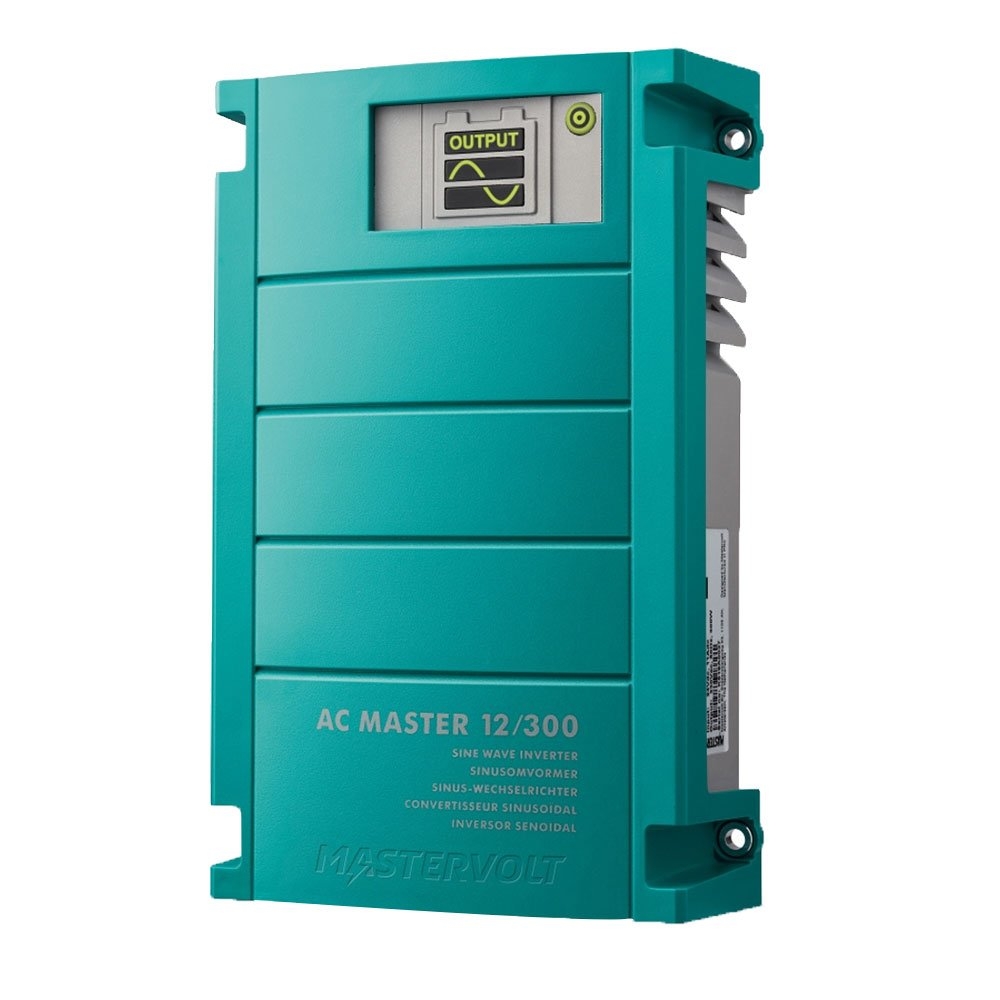

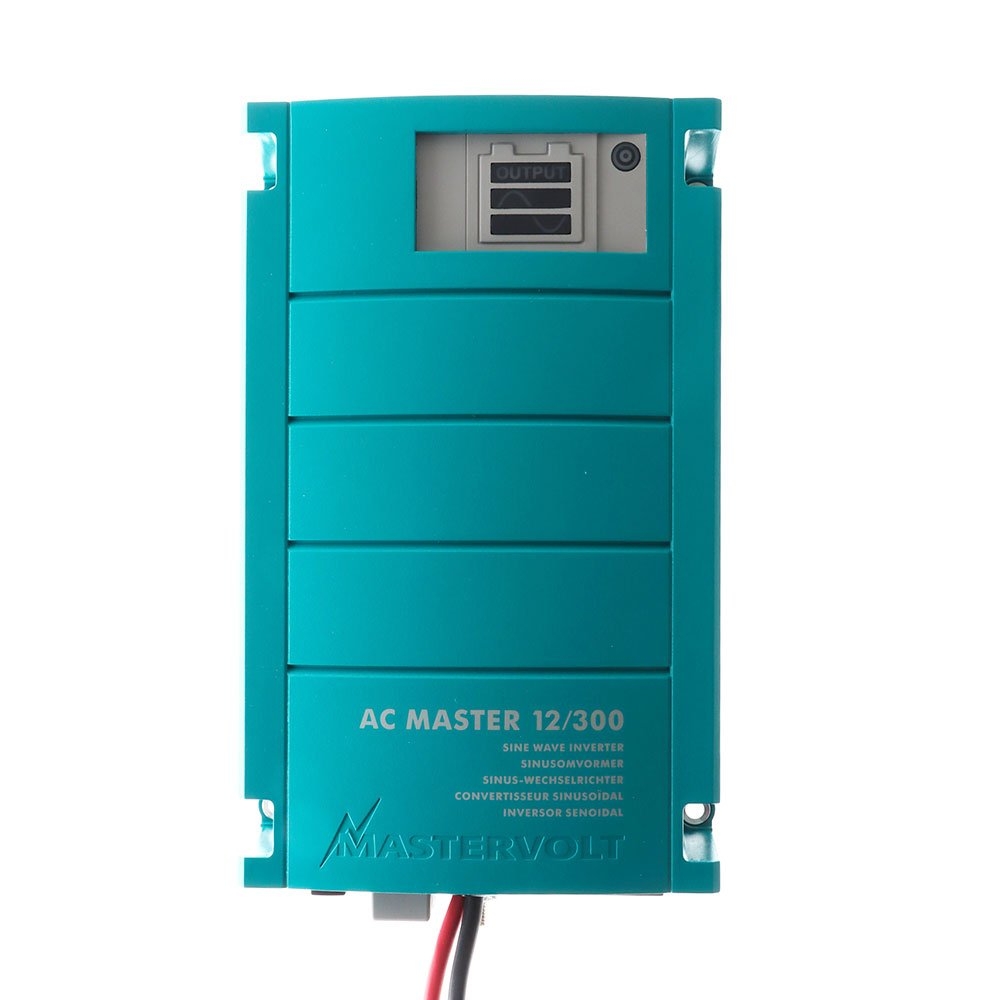

Mastervolt AC Master Pure Sine Wave Marine Inverter 300W 12VDC to 230VAC

Convert DC energy into reliable AC power

The Mastervolt AC Master Pure Sine Wave Inverter converts 12V DC energy from your battery into a reliable 230V AC output power, perfect for outdoor recreational use. It’s easy to install and provides maximum output even under the most demanding situations. The pure sine wave technology ensures the power output is of outstanding quality to protect sensitive equipment. This inverter also features an automatic power-saving system which is great for extended use. Plus, it’s protected against overload, short circuits and high or low battery voltage. If you’re looking for high functionality, excellent quality and complete value for money, the Mastervolt AC Master Pure Sine Wave Inverter will get the job done.

Mastervolt AC Master Pure Sine Wave Inverter Features:

• Converts DC to AC
• Pure sine wave technology ensures sensitive equipment are protected
• Automatic power saving system
• Compact and lightweight
• Easy installation
• Overload, over temperature, short circuit, high or low battery protection

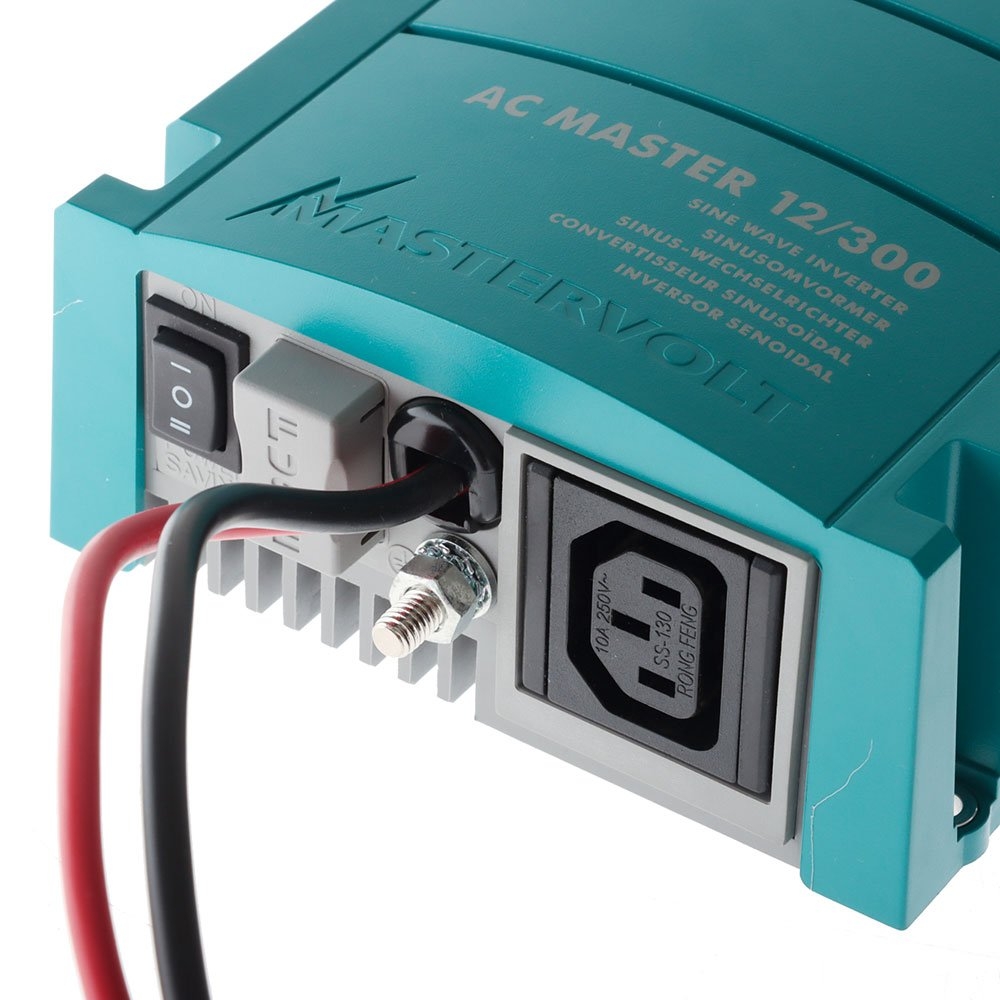

• Convenient IEC socket with IEC plug included

Mastervolt AC Master Pure Sine Wave Inverter Specifications:

General

• Code: 28010302
• Output voltage: 230 V - 50 Hz (± 0.1%)
• Output waveform: True sine
• Nominal battery voltage: 12V
• Recommended battery capacity: ≥ 60 Ah
• Continuous power at 25 °C / 77 °F, cos phi 1: 300 W
• Continuous power at 40 °C / 104 °F, cos phi 1: 250 W
• Peak load (5 s): 600 W
• AC connection: Universal
• Galvanic isolation: Yes
• Efficiency: 90%
• Display/read-out: LED display
• Alarms: 4 alarm modes
• Dimensions (H x W x D): 210 x 130 x 60mm
• Weight: 1.16kg
• Compliance: CE, E-mark, ABYC A-31

Technical

• Technology: High frequency, input and output fully isolated
• Low battery voltage, switches off at: 10 V, ± 0.5 V
• Low battery voltage, switches on at: 11 V, ± 0.5 V
• High battery voltage, switches off at: 16 V, ± 0.5 V
• High battery voltage, switches on at: 14.5 V, ± 0.5 V
• Max. ripple on DC (battery): 10 % RMS
• Input current (nominal load): 22.5 A
• No-load power consumption (ON mode): 0.58 A – 7 W
• No-load power consumption (energy saving mode): 0.33 A - 4 W
• Minimal DC fuse (slow blow): 2x 40 A
• Minimal cable size: 1.5m DC cable delivered as standard
• Harmonic distortion typical: < 6%
• Cos phi: All power factors allowed
• Temperature range (ambient temp.): -20°C to 40°C, derating power > 40°C
• Cooling: Natural/forced
• Switch off at (auto recover after cooling down): 50°C
• Protection degree: IP23, vertical wall mounting
• Protections: Over temperature, over load, short circuit, high/low battery voltage
• MasterBus compatible: No
