NOTE ON CONDITION: The customeromer didn't realise it was a chain winch. Missing original packaging and the manual.

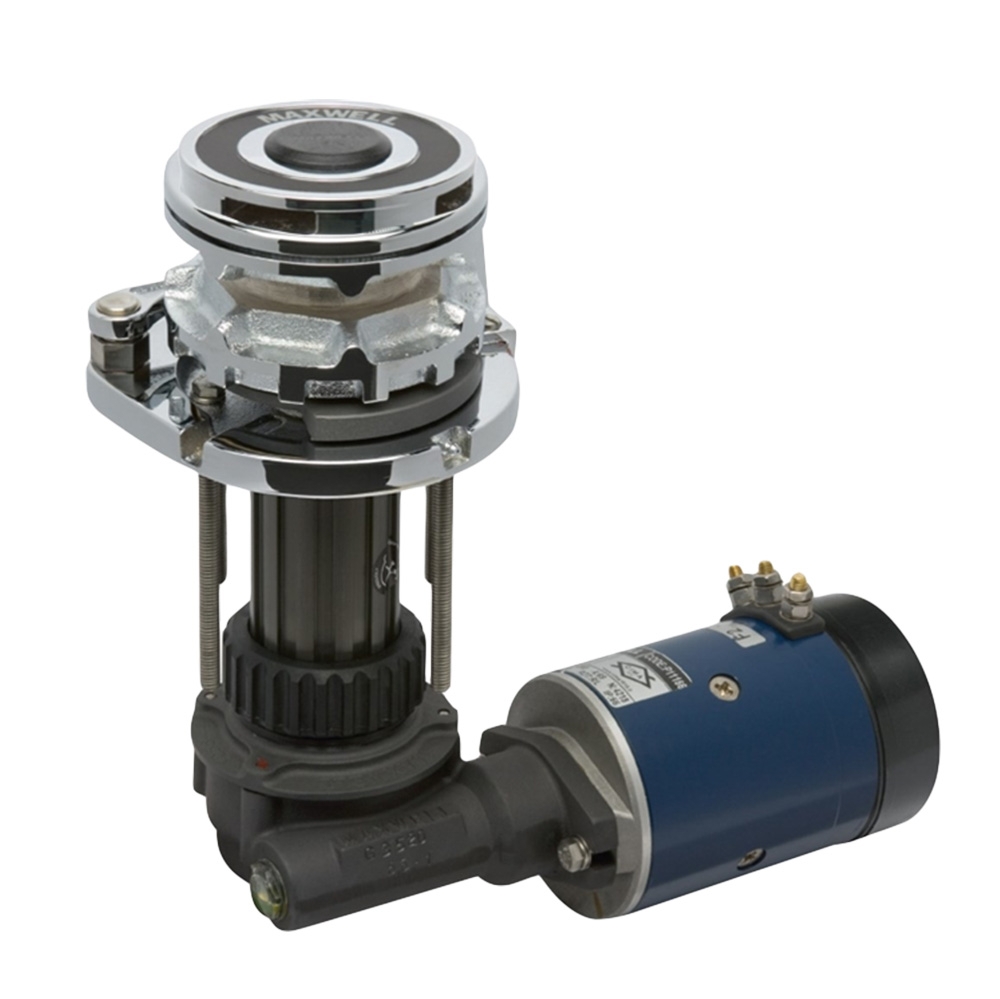

The Maxwell 1000 Low Profile Chain Anchor Windlass Winch is designed for automatic vertical handling of chain-only anchor rodes while offering an independent capstan for the retrieval of a secondary rope and chain rode or to assist with docking procedures.
Maxwell 1000 Low Profile Chain Anchor Windlass Winch Features:
Maxwell 1000 Low Profile Chain Anchor Windlass Winch Specifications:
Maxwell 1000 Low Profile Vertical Windlass User Manual
Anchor your boat with ease
The Maxwell 1000 Low Profile Chain Anchor Windlass Winch is designed for automatic vertical handling of chain-only anchor rodes while offering an independent capstan for the retrieval of a secondary rope and chain rode or to assist with docking procedures.
Maxwell 1000 Low Profile Chain Anchor Windlass Winch Features:
- Fully automatic single or dual direction chainwheel operation
- High-quality finish on above deck components, manufactured from marine grade stainless steel (AISI 316), for long term durability
- Integral chain pipe and stripper are aligned for virtually jam-free operation providing automatic feed of chain into and out of the anchor locker
- Cone-type brake/clutch mechanism permits manual ‘free fall’ anchoring. Cone clutches, unlike dog clutches, provide smooth progressive engagement ensuring safe and precise operator control
- Chainwheel locking pawl
- Clutch disengagement of the chainwheel enables independent rope hauling from any direction, using the Max-grip snag-free warping drum for positive control of all ropes
- Simple through deck installation by modular design and precise alignment of the gearbox to the topworks utilising marine-grade stainless steel bolts
- Anodised aluminium gearbox and spacer tube on all models
- Heavy-duty, dual-direction motor, designed for marine winches
- Low Profile configuration (no warping drum)
Maxwell 1000 Low Profile Chain Anchor Windlass Winch Specifications:
- Model: P100420
- Voltage: 12 V
- Sense of rotation: CW
- Motor: 1000W
- Model: Low profile
- Maximum pull/lift: 700kg
- Static hold: 1500kg
- Chain short link: 6-10mm
- Line speed (normal working): 18 m/min
- Net weight (electric): 24kg
- A: 80mm
- B: 195mm
- B1 (LOW PROFILE): 98mm
- C: 56mm
- D: 252mm
- E: 262mm
- F: 224mm
- G (standard deck clearance): 100mm
- G (extra deck clearance): 150mm
- I: 165mm
Maxwell 1000 Low Profile Vertical Windlass User Manual
Warranty Note: This item may either require minor repairs, or it may have received cosmetic damage or have other clear, non-critical issues. This may have previously been used by customers but it has been assessed by ourselves or suppliers before sale. This is sold 'as is' - and damage, issues, and any identified marks will be noted on the listing page. It carries a limited 90-day warranty. If the product has unnoted faults, it may be returned for a refund on the original sale price. No exchanges or repairs of products will be undertaken. As these are quick sale, limited offer products, there is no right of return for 'changing your mind'.
