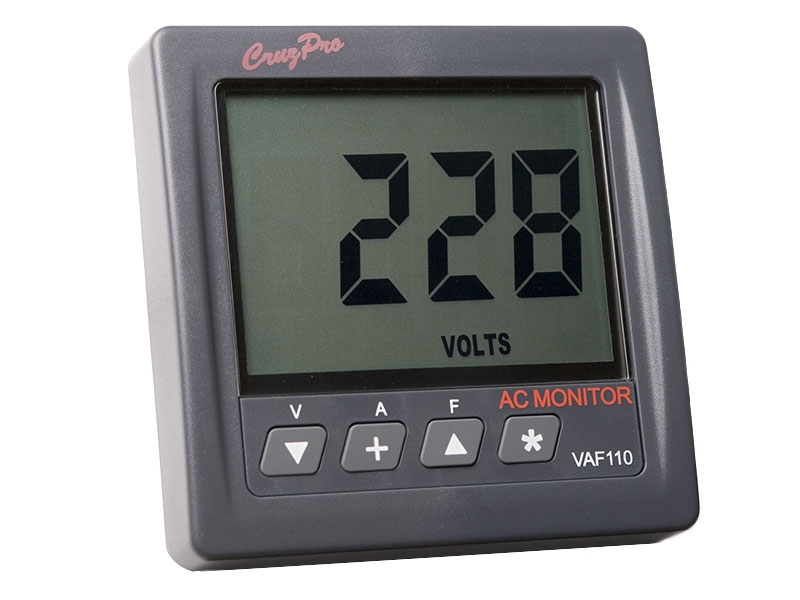

CruzPro VAF-110 Large Display AC Power Management Instrument

The VAF110 Digital AC Monitor provides accurate digital instrumentation for AC volts, amps, frequency and kW.

With a single press of the button you can display volts, amps, frequency or kW.

Displays AC voltage from 90 to 300 VAC RMS, AC current from 0 to 150 amps, AC frequency from 30 to 100 Hz and computes volt-amps (kW) from 0.0 to 45.0 kW.

You can set low and high alarms for voltage, frequency and a high kW alarm. When activated, the built-in 85 dB alarm will sound and the display will flash.

Built-in generator cut-out output to automatically shut down a faulty or out-of-condition generator.

Outputs digital current data in NMEA 0183 serial data line format. This information can be used to log performance or repeat the display information at a remote location on the CruzPro RP60 and/or RP110 data repeaters.

5 levels of backlight (including OFF) can be selected from the front panel.

The VAF110 comes complete with both voltage and current transformers to measure AC volts and AC current.

Draws only 0.037 amps operating voltage 9.5 to 33.0 VDC

The units are factory calibrated, if required this can be adjusted over a wide range using the front-panel switches to suit your particular needs. All calibration data is saved to non-volatile memory.

Size: 4.3inch x 4.3inch (110m x 110mm)

Mounting: 2-1/8inch (54mm) round hole

• Operating Voltage: 9.50 - 33.00 VDC
• Current Drain: 0.035 amps nominal
• Display: Large 4 digit LCD, 5 levels of backlighting with external backlight on/off control
• Data: Volts, Amps, Frequency, Killowatts (kW)
• Ranges: 90 - 300 VAC, 0 to +150 Amps 30 - 100 Hz 0.0 to 45.0 kW
• Data Ouput: NMEA 0183 serial data output at 4800 BAUD of: $IIXDR,I,aaaa,A,VAF30,CS - AC Amps $IIXDR,F,bb.b,H,VAF30,CS - AC Frequency $IIXDR,G,cc.c,,VAF30,CS - AC Killowats $IIXDR,U,ddd,V,VAF30,CS - AC Volts
• Alarms: Built-in 85 dB audible alarm. Settable high and low voltage alarms, high and low frequency alarms, high kW alarm.
• Outputs: User selectable choice of automatic generator cut-off or NMEA 0183 serial data output of AC Volts, AC Amps, Frequency and kW
• Size: 4.3'' x 4.3'' (110m x 110mm)
• Mounting: 2-1/8'' (54mm) round hole
