Actisense OPTO-4 NMEA 0183

#9045935
Warranty Badge - 12-Months
Ships Dec 29 - Jan 18
ONLY $275.00

Seen a lower price? Ask us to beat it

Add Items to Cart
No payments or interest for 12 months*

💬 Report incorrect product information

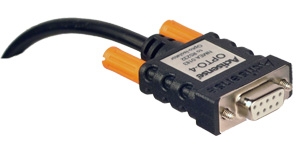

Actisense OPTO-4 NMEA 0183

Click on the image above to view full picture

More Views

Details

Details

Isolate an RS232 (PC) port to protect against ground loops.

The Actisense PC Opto-Isolator Cable (OPTO-4) provides an easy way to link an NMEA® 0183 device to an RS232 (PC) serial port. Providing the necessary isolation to allow a PC (or any other device with a standard full RS232 9-pin port) to meet the latest NMEA 0183 input specification.

Actisense OPTO-4 NMEA 0183 Features:
  • NMEA 0183 & RS232 compliant
  • Full duplex (two-way) communication
  • All baud rates up to 115200 Baud
  • Overmoulded case with a narrow profi le for installing in small spaces
  • Transient protection on the PC output line
  • Opto-isolation providing 2000 volt protection on the PC input line
  • Reverse voltage protection on the PC input line
  • Current limited to protect against cable faults
  • Port-powered; takes power from the PC port
  • Fully shielded for superior noise rejection


Actisense OPTO-4 NMEA 0183 Specifications:
Parameter Description
Electrical
NMEA Listener/Input Isolation 2kV Opto-Isolation between Red/Black NMEA pair and all other connections

NMEA Listener/Input Voltage

+/-15V Continuous Maximum

+/-35V Max <1 Second
NMEA Listener/Input Signal Thresholds

Logic '0' +2V to +15V

Logic '1' -15V to 0V
NMEA Talker/Output Voltage and Current

Dependant on Host RS232 Interface. Typically +/-5V to +/-15V @10mA Max
RS232 Voltage on Host +/-7V to +/-15V
RS232 Port Total Current  Consumption 2mA to 5mA depending on RS232 Voltage
Speed/Baud Rate 4800 to 115200 Baud
Mechanical
Housing Material PVC Black
Thumb Screw Material PVC Orange
Screw Steel, Nickle Plated, M2.8 Thread
DB9 Connector 9 Pin Female
Cable Length 1.5m
Cable Wire 22AWG (17/34AWG) Tinned Stranded Copper
Cable Jacket PVC
Shield Internal Copper Foil Shield
Cable Outer Diameter 5.5mm
Approvals and Certifications
Operating Temperature -20 degreesC to +70 degreesC
Electrical Specification Meets IEC 61162-2
Weight 100g
Guarantee 3 Years
UL Certification Cable E137250
RoHs Compliant

Actisense OPTO-4 NMEA 0183 Quick Start Guide
