Marinco 30 Amp/125V White Power Easy Lock Inlet with Stainless Steel Trim

#9022109
Warranty Badge - 12-Months
Ships Jan 18 - Feb 6
ONLY $169.00

Seen a lower price? Ask us to beat it

Add Items to Cart
No payments or interest for 12 months*

💬 Report incorrect product information

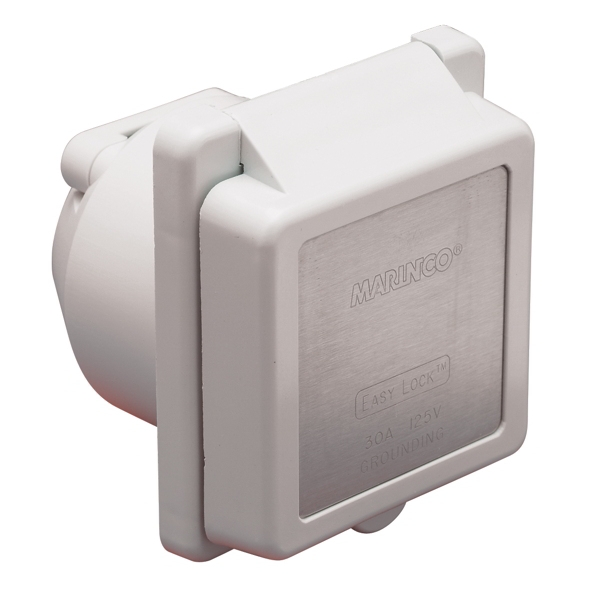

Marinco 30 Amp/125V White Power Easy Lock Inlet with Stainless Steel Trim

Click on the image above to view full picture

Details

Details

The Marinco 30 Amp/125V White Power Easy Lock Inlets with Stainless Steel Trim feature UV stabilized glass-filled polyester construction for long-lasting strength. Their robust construction and corrosion-resistance provides long life in the harsh marine environment. Technical features are designed to make them easy to install and a pleasure to use for the marine professional or the casual recreational boater.

Marinco 30 Amp/125V White Power Easy Lock Inlets with Stainless Steel Trim Specification:
  • Item: Inlet, non-metallic locking
  • Rating: 30 amperes, 125 volts
  • Terminals: Clamp-type terminals. No. 10 terminal screws accept up to 8 AWG wire
  • Enclosure: Provided. Has integral strain relief for oval jacketed cable
  • Blades: Blades are solid brass 0.060” thick
  • Mounting Screws: Not provided. No. 8 panhead recommended. Mounting holes are 0.16” diameter on a 2.43” square pattern
  • Mounting Gasket: Solid Neoprene, 1/8” thick
  • Cap Closure: Pressure close. Provided with Easy Lock bayonet style locking system
  • Provides weather seal when used with cords having threaded, or Easy Lock, sealing rings
  • UL Marine listed, CSA certified, and complies with ABYC and Coast Guard Standards
  • Materials:
    • Cap & Bezel are glass-filled polyester
    • Plug body is nylon with CTI greater than 600 volts
    • Contact blades and terminal parts are nickel plated brass
    • Rear enclosure is glass-filled polyester with UL flammability rating of 94V-0
