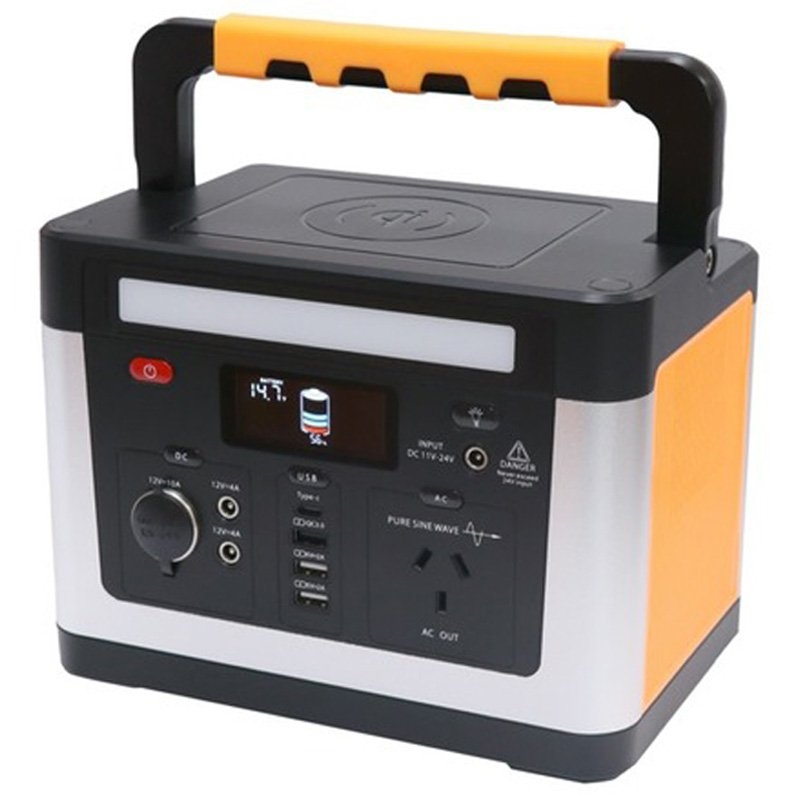

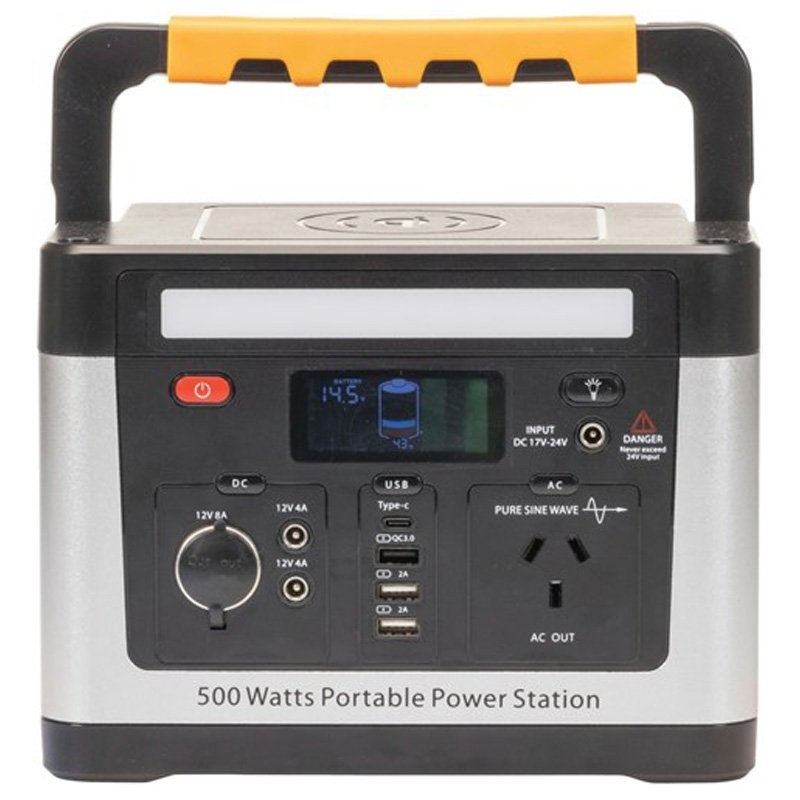

Powertech MB3776 Portable Power Station 500Wh

Easy mobile power solution

Keep your devices powered and charged when you don't have access to mains power. The Powertech MB3776 Portable Power Station is ideal to take camping, to your picnic, on a boat or to use at home in the event of a power blackout.

A built-in 500W pure sine wave inverter enables you to power 240V Devices like laptops, small power tools and other mains powered devices. The cigarette lighter socket and two DC sockets provide 12VDC to power a 12V fridge/freezer, fan, CB radio, air compressor, lights and other 12V devices. Charge your smartphone, tablet and other USB devices simultaneously via the four USB ports, which include 2 x USB-A, USB-A with Quick Charge 3.0, and Type-C with 55W Power Delivery for a faster charge. A wireless Qi charger built into the top of the power station provides up to 10W fast charge to compatible devices.

An ultra bright 1W LED light means you won't be left in the dark, large colour LCD screen shows you the power status at a glance, and a fold-out carry handle makes it easy to carry. A mains charger is included to charge the high-capacity Li-ion batteries. Alternatively, a DC input with an integrated high-performance MPPT charge controller enables you to charge the power station with a solar panel (not included).

Powertech MB3776 Portable Power Station Features:

• Intelligent automatic dynamic charge and discharge management platform
• The colour LCD display would show the battery capacity, voltage, output power, and remaining time for charging and discharging
• Lightweight and compact design
• Charge multiple devices at once
• Convenient wireless charger on top for mobile devices
• Pure sine wave, high precision, low ripple, and SPWM (pulse width modulation) voltage output
• Isolated pure sine wave AC 240V output
• Built-in rechargeable power with high capacity, long life, and efficiency lithium-ion battery
• QC3.0, 5V/2A, wireless charging and Type-C output, can be used for charging digital products such as mobile phones
• AC (AC240V) and DC (DC12V/10A, USB5V/2A, Type-C, can supply power at the same time
• Safety design seven protections: short-circuit protection, over-load protection, over-temperature protection, over-charge protection, overdischarge
• Includes Edison Screw 5w 4000K LED light and 2.9m cable w/switch, 1.5m Cigarette-socket charging cord, and 19v 4A mains power charger w/1.2m IEC C7 cable

Powertech MB3776 Portable Power Station Specifications:

• Model: MB3776
• Battery type: 14.8V/33.8Ah 500Wh Lithium-ion Battery
• Output power: 500W
• Peak power: 1000W
• Battery Watt hour rating: 505Wh
• AC voltage rating: 220V
• AC frequency: 50Hz
• Output wave: Pure sine wave
• Frequency: 50Hz±0.5Hz
• 5.5-2.5mm DC sockets: 12V/4A, 48W Max
• Cigarette lighter socket: 12V/10A, 120W Max
• Protection: Short-circuit protection, over-load protection, over-temperature protection, over-voltage protection, over-current protection, under-voltage protection, etc. (with self-recovery function after protection)
• AC charging adapter: 19V/4A
• Solar input: 11-24V, 100W Max
• Battery capacity: 14.8V (33.8AH)
• Charging time: 6-8H
• Charger controller: MPPT 4A
• LED: 1W
• Lifetime: > 800 times
• Dimensions: 225 x 150 x 170 mm
• Weight: 5kg
• Working temperature: -20 °C ~ 65 °C
• Operating humidity: 0%RH~90%RH
• Working air pressure: 50KPa ~ 100KPa
• Recommended Solar Panel: GH2015 (not included)

Note: The power station features built-in protection which prevents the unit from being charged while running the inverter. Only the output for the USB ports will function to prevent damage to the unit.
