Harken Carbo Air Block with Swivel

#9165196
Warranty Badge - 12-Months
Ships Nov 16 - Nov 26

Seen a lower price? Ask us to beat it

Product Name Price Qty
Harken Carbo Air Block with Swivel 29mm

Ships Nov 16 - Nov 26

NOW $66.99
Harken Carbo Air Block with Swivel 40mm

Ships Nov 16 - Nov 26

$84.92 NOW $72.99

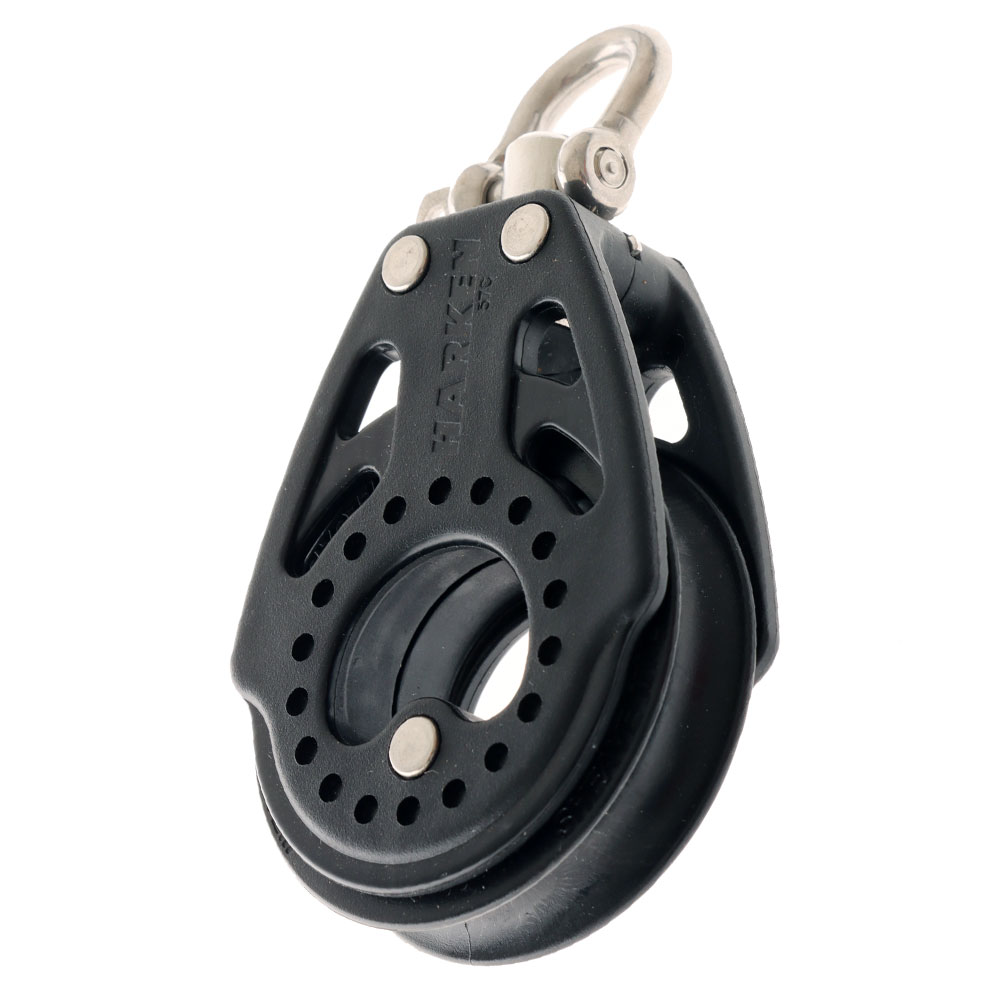

Harken Carbo Air Block with Swivel 57mm

Ships Nov 16 - Nov 26

NOW $119.00
Harken Carbo Air Block with Swivel 75mm

Ships Nov 16 - Nov 26

$219.99 NOW $209.00
Add Items to Cart
No payments or interest for 12 months*

Click on the image above to view full picture

More Views

Details

Details

Low-friction efficiency for fast trim and release

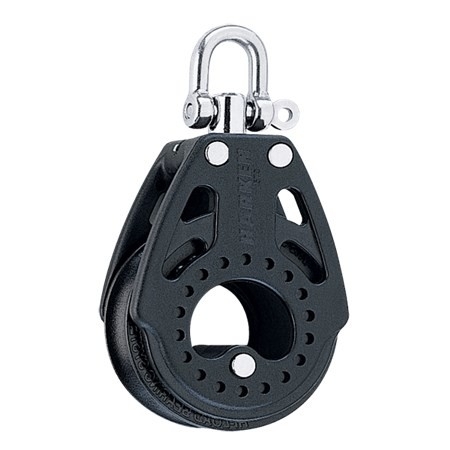

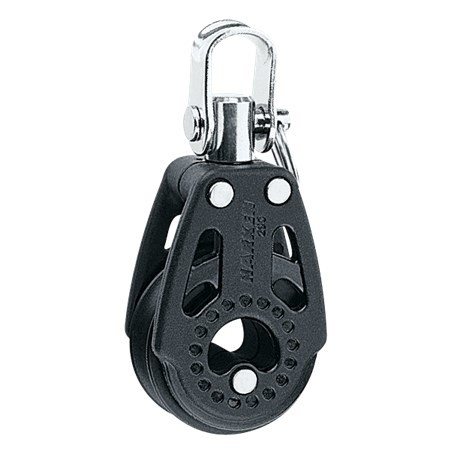

The low-friction Harken Carbo Air Block is a lightweight, strong and reliable companion to Harken's Big Boat blocks. This small and compact block has a very high working load for safe, easy trimming.

Harken Carbo Air Block Features:
  • Shackle blocks lock in 2 directions or swivel to keep line from twisting
  • Low-friction efficiency for fast trim and release
  • Free-running ball bearings roll on curved races, efficiently dispersing load for a higher strength block

Harken Carbo Air Block Specifications:

CodeSheave DiameterLengthWeightShackle Pin DiameterMaximum Line DiameterMaximum Working LoadBreaking Load
34029mm66mm26g4mm8mm150kg454kg
263640mm86mm44g4mm10mm220kg735kg
260057mm110mm87g5mm10mm359kg1079kg
266075mm137mm195g6mm14mm550kg1650kg


Note: Maximum working loads and breaking loads for blocks based on cam strengths.

Harken Carbo Air Block with Swivel Instructions
