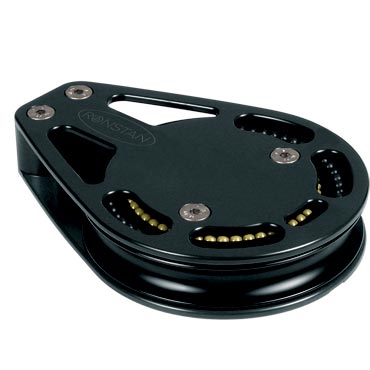

Ronstan RF159151 Series 150 Orbit Block Single Foot

Orbit blocks are a no-compromise product range developed to meet the demands and expectation of the very dedicated and increasingly professional racing sailor. Side cheeks incorporating head structure and hub are precision machined as a single part from solid alloy, leaving material only where it contributes to the load carrying capacity of the block and eliminating the need for additional fasteners. The Orbit sheave has captive Acetal or Torlon ball bearings for side thrust loads, eliminating the need for side retainer plates. This reduces weight and allows for a wider bearing surface that can accommodate longer Torlon needles - achieving a substantially higher strength-to-weight ratio.Features through-hub mounting for maximum strength and can be stacked to create a double (total block load same as single, maximum load on top sheave not to exceed 50% of total block load).Cover plate can be removed for service access without removing t

Applications

• Mainsheet and genoa sheet systems on boats to 25m (82ft)
• Spinnaker systems, halyards on boats to 28m (92ft)
• Running backstay systems on fractionally rigged boats to 20m (65ft) or 25m (82ft) masthead

Materials

• Fully machined Alloy cheek plates
• Alloy sheaves with captive ball races
• Torlon needle rollers
• Carbon black Acetal ball bearings

Features:

• The highest strength-to-weight ratio
• Minimal friction loss, especially when working at high loads
• Totally reliable and trouble free performance
• Simplicity of design and construction to facilitate maintenance and servicing
• Elegant, functional styling and finish.
• Stackable to create double version
• Removable cover plate

Specifications:

Sheave diameter	150 mm
Max. Rope diameter	20 mm
Max. Cable diameter	- mm
Pin diameter	- mm
M.W.L.	6500 kg
B. L.	14200 kg
Weight	1285 g
