Up (Pulleys, Blocks & Sheaves) ▲

Ronstan RF61841 Series 60 All Purpose Deck Organiser - 4 x 60mm Sheaves

#9073026
Warranty Badge - 12-Months
Ships Dec 14 - Jan 2
ONLY $649.00

Seen a lower price? Ask us to beat it

Add Items to Cart
No payments or interest for 12 months*

💬 Report incorrect product information

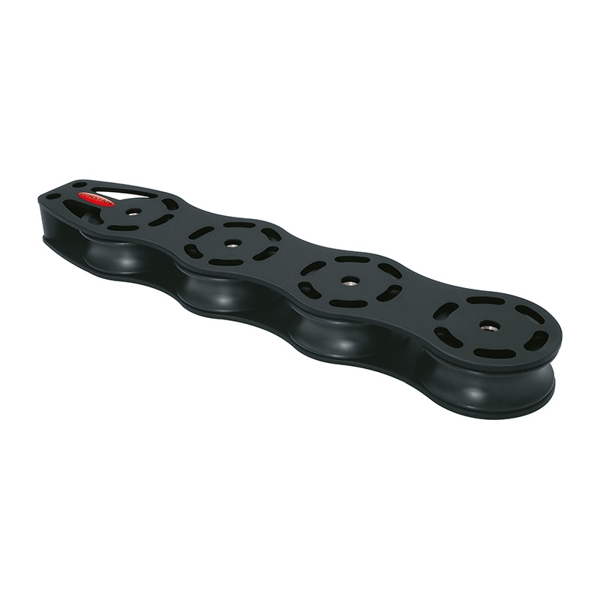

Ronstan RF61841 Series 60 All Purpose Deck Organiser - 4 x 60mm Sheaves

Click on the image above to view full picture

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Ronstan RF15000 Series 15 Ball Bearing Acetal Sheave 15.1 x 7.1 x 4.7mm

Ronstan RF15000 Series 15 Ball Bearing Acetal Sheave 15.1 x 7.1 x 4.7mm
ONLY $7.99
Details

Details

The Ronstan RF61841 Series 60 All Purpose Deck Organiser - 4 x 60mm Sheaves is an effective means of deflecting halyards and other control lines to winches, stoppers and cleats. Sheaves are made from impact resistant Acetal. The deck organisers have alloy cheeks, flared at rope entry and exit points to minimise chafing. All sizes can be stacked to create double versions - MWL of the top sheaves must not exceed 50% of the total block load rating. Mounts with 6 x 8mm (5/16) fasteners, not supplied.

Ronstan RF61841 Series 60 All Purpose Deck Organiser - 4 x 60mm Sheaves Features:
  • Used as line deflection on larger yachts (depending on load and angle of deflection)
  • Also used for halyard and control line deflection on boats to 14m (46ft)
  • Alloy upper and lower cheek plates
  • U.V. stabilised Acetal sheaves
  • Grade 316 stainless steel hubs
  • Lightweight design with cheek cut outs for easy bearing maintenance
  • Through hub mounting for maximum strength
  • All-purpose bearing system provides maximum static load capacity

Ronstan RF61841 Series 60 All Purpose Deck Organiser - 4 x 60mm Sheaves Specifications:
  • Sheave diameter: 60 mm
  • Max. Rope diameter: 14 mm
  • Fastener diameter: 8.0 mm
  • M.W.L.: 1000 kg
  • B. L.: 2000 kg
  • Weight: 511 g
Some of our product deals are strictly limited - once they're gone, they're gone! Secure yourself this amazing deal while stocks last...by clicking the Add to Order button above.
