Raymarine RV-300 RealVision 3D Plastic Through Hull Transducer 0-deg

#9100798
Warranty Badge - 12-Months
ONLY $2,439.00

Seen a lower price? Ask us to beat it

No payments or interest for 12 months*

Click on the image above to view full picture

More Views

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Details

Details

Designed for inboard and outboard powerboats

The Raymarine RV-300 RealVision 3D Plastic Through Hull Transducer 0-deg is designed for inboard and outboard powerboats. The RV-300 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-300 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision, SideVision, high-frequency CHIRP fish targeting and RealVision 3D sonar inside. The transducer also has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, compensating automatically for vessel motion. You'll enjoy crystal-clear imagery even in waves, swells, and when manoeuvring. The RV-300 also has a built-in fast response water temperature sensor for quick, accurate readings.

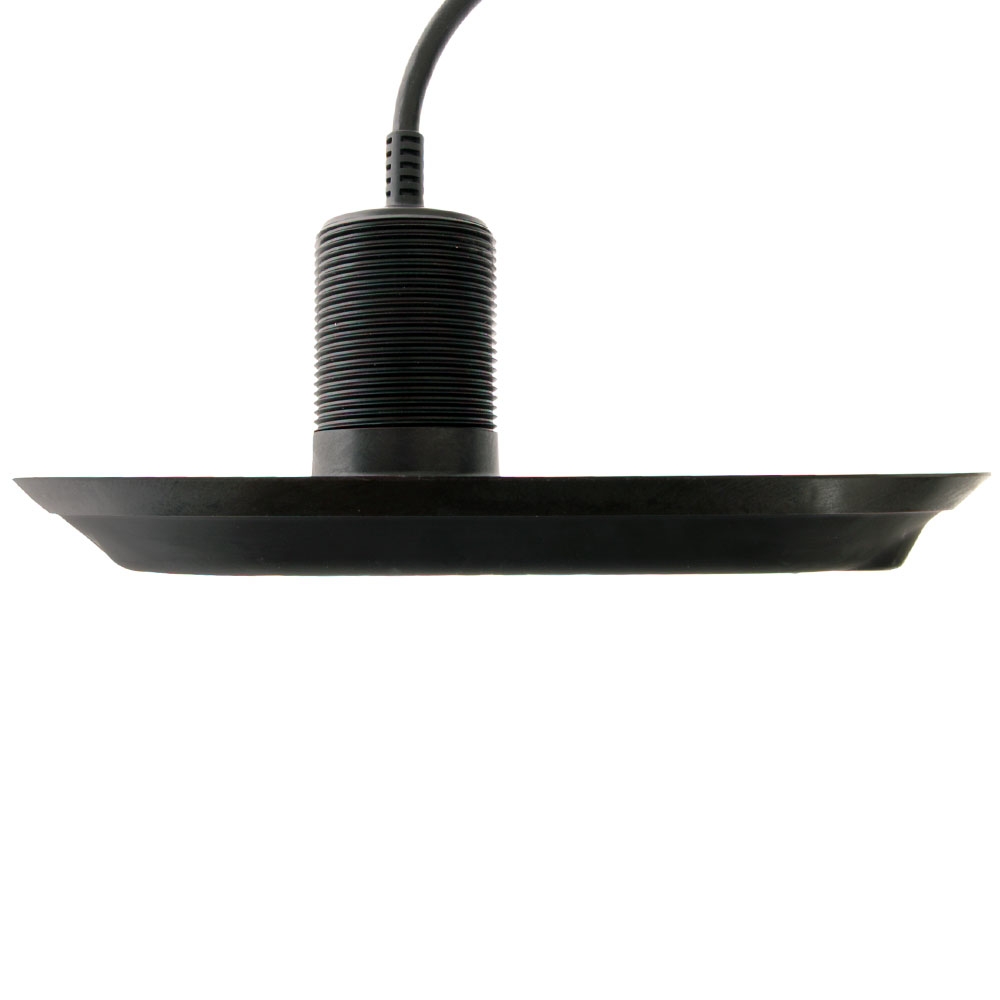

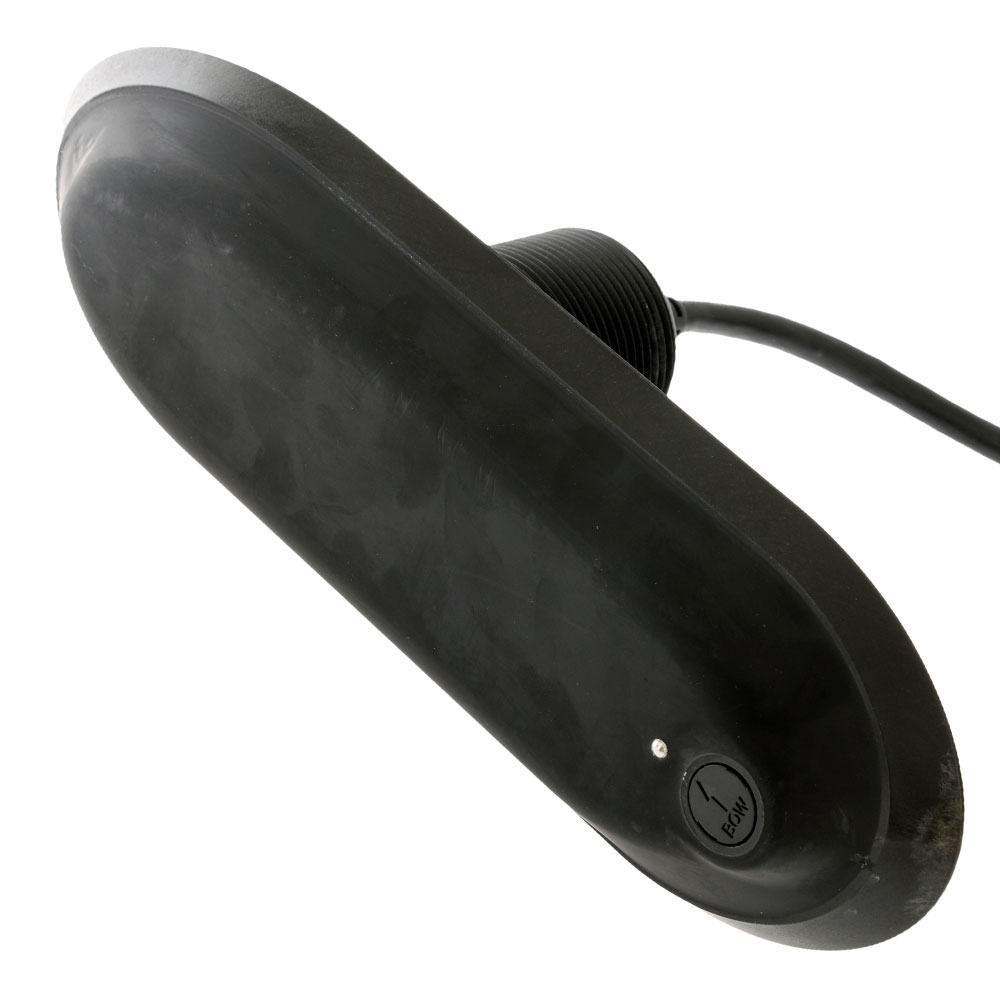

The Raymarine RV-300 RealVision 3D Plastic Through Hull Transducer 0-deg features a rugged plastic through hull body suitable for fibreglass, steel or aluminium hulls. The RealVision 3D transducer elements are arranged with a 0 degrees offset for boats with flat bottoms. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-300 works great on trailered boats too and with no fairing block to cut, installation is a breeze.

Raymarine RV-300 RealVision 3D Plastic Through Hull Transducer 0-deg Specifications:
  • Part Number: A80470
  • Installation: Through Hull
  • Material: Plastic
  • Max Depth (Ft): 3D: 300 / DownVision: 600 / Port: 300 / Starboard: 300 / Conical: 900
  • Frequency (KHz): RealVision / High CHIRP
  • Beam Width (L/H): 3D: 180 degrees / Down: 60 degrees / Conical: 25 degrees
  • Records: Depth and Temperature
  • Approved Hull Material: Fiberglass / Metal
  • Supported Deadrise / Transom Angles: 0-5 degrees Dead rise

What's in the box:

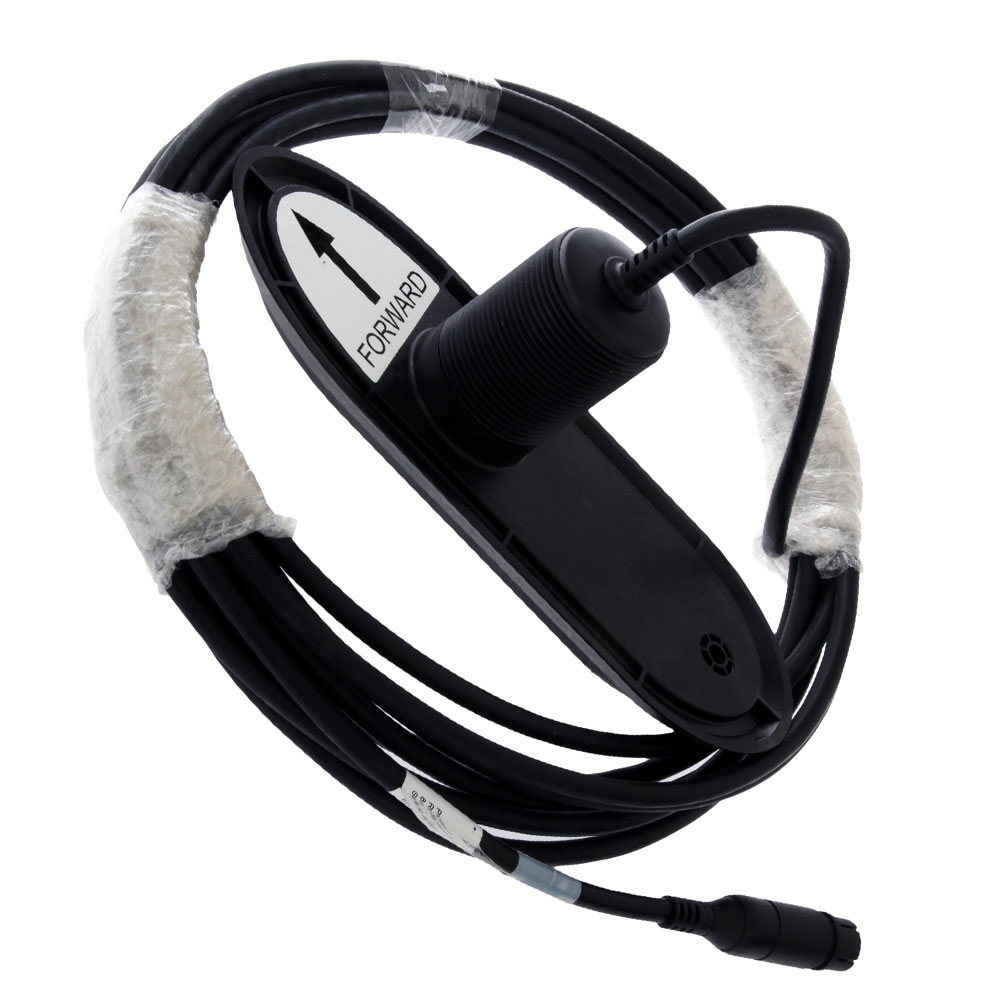

  • RV-300 Bronze All-In-One Through Hull Transducer with 8-meter (26-foot cable)
  • Anti-rotation bolt kit
  • Installation instructions
