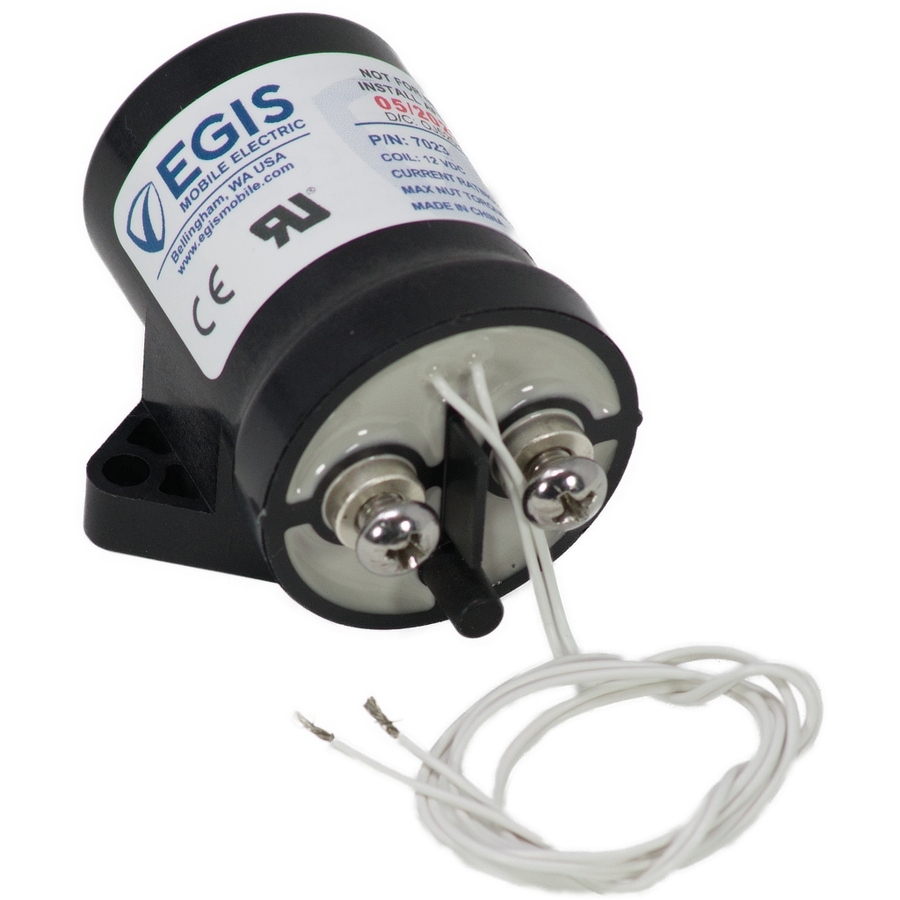

Egis Mobile Electric Contactor 100A 12V

Hermetically Sealed Contactor, 100 Amp. 12V. Reduce Installation Costs and Weight by eliminating large cable runs to manual switches through robust remote switching of high-ampere engine and auxiliary loads. Ensure Flawless Operation for the Life of the Installation with a hermetically sealed contactor sealed against dust and moisture Intrusion. Get Positive Con?rmation of Relay On/O? State with optional auxiliary contacts that support remote status indication. High Contact Voltage Rating easily supports 12 and 24 Vdc applications while also supporting higher voltage applications up to 48 V and well beyond.
Specifications:

• Brand: Egis Mobile Electric
• Country of Origin: China
• RoHS Compliant: Yes
• Voltage: 12 VDC
• Waterproof Rating: IP67 / IP6K9K
• Auxilary Contacts: No
• Max Current: 100 A
• REACH Compliant: Yes
• Number Of Circuits: 1
• Connection Type: Flying Leads
• Ignition Protected: Yes
• Interrupt Current: 1000 Amps
• LED Indicators: No
• Operating Temperature: Up to 85 degreesC / 185 degrees F
