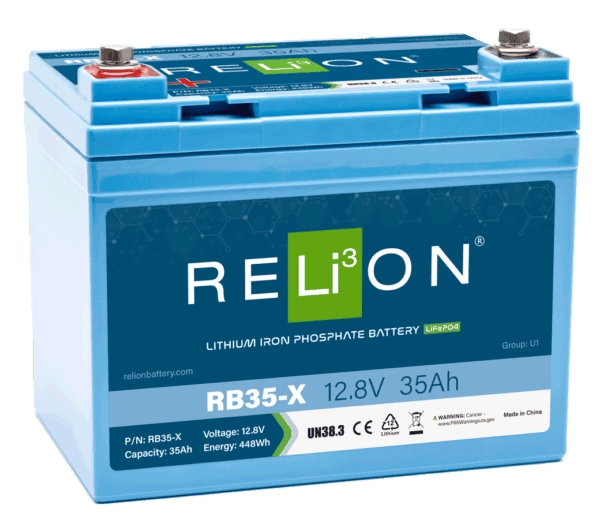

The RB35-X is a 12V 35 Ah lithium deep cycle battery in the RELiON X-Series. Our X-Series batteries allow for higher peak and higher continuous discharge currents compared to RELiON's standard lithium batteries of the same size.
This is ideal if you have a physical size constraint but need higher power, or if you want to increase the power but you don't need the extra energy that comes in RELiON's standard lithium offering.
This efficient and fast-charging 12V 35Ah lithium iron phosphate battery is equipped with an M8 terminal type and a built-in battery management system (BMS). All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.
PRODUCT SPECIFICATIONS
- Voltage: 12.8V
- Amp Hours: 35Ah
DIMENSIONS and WEIGHT
- Length: 7.7 in (195 mm)
- Width: 5.2 in (131 mm)
- Height: 6.7 in (171 mm)
- Weight: 11.4 lbs (5.17 kg)
APPLICATIONS
- AWP
- Floor Machines
- Solar
Electrical Specifications | |
|---|---|
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 35 Ah |
| Capacity @ 25A | 84 min |
| Energy | 448 Wh |
| Resistance | ?50 mohms @ 50% SOC |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Maximum Modules in Series | 1 |
Mechanical Specifications | |
|---|---|
| Dimensions (L x W x H) | 7.7 x 5.2 x 6.7 (195 x 131 x 171 mm) |
| Weight | 11.4 lbs (5.17 kg) |
| Terminal Type | M8 x 1.25 |
| Terminal Torque | 80 - 100 in-lbs (9 - 11 N-m) |
| Case Material | ABS |
| Enclosure Protection | IP66 |
| Cell Type - Chemistry | Cylindrical - LiFePO4 |
Discharge Specifications | |
|---|---|
| Maximum Continuous Discharge Current | 70 A |
| Peak Discharge Current | 100 A (7.5 s plus or minus 2.5 s) |
| BMS Discharge Current Cut-Off | 160 A plus or minus 20 A (9 plus or minus 4 ms) |
| Recommended Low Voltage Disconnect | 11 V |
| BMS Discharge Voltage Cut-Off | 8 V (2.0 plus or minus 0.08 vpc) (144 plus or minus 30 ms) |
| Reconnect Voltage | 8.64 V plus or minus 0.96 V (2.16 plus or minus 0.24 vpc) |
| Short Circuit Protection | 200-800 micros |
Charge Specifications | |
|---|---|
| Recommended Charge Current | 1.75 A - 17.5 A |
| Maximum Charge Current | 70 A |
| Charge Current 32 degrees F to 14 degrees F (0 to -10 degrees C) | ?0.1 C |
| Charge Current -4 degrees F to 14 degrees F (-20 to -10 degrees C) | ?0.05 C |
| Recommended Charge Voltage | 14.2 V - 14.6 V |
| BMS Charge Voltage Cut-Off | 15.6 V (3.9 plus or minus 0.025 vpc) |
| (1.2 plus or minus 0.3 s) | |
| Reconnect Voltage | 15.2 V (3.8 plus or minus 0.050 vpc) |
| Balancing Voltage | 14.4 V (3.6 plus or minus 0.025 vpc) |
Temperature Specifications | |
|---|---|
| Discharge Temperature | -4 to 140 degrees F (-20 to 60 degrees C) |
| Charge Temperature | -4 to 113 degrees F (-20 to 45 degrees C) |
| Storage Temperature | 14 to 95 degrees F (-10 to 35 degrees C) |
| BMS High Temperature Cut-Off | 167 degrees F (75 degrees C) |
| Reconnect Temperature | 122 degrees F (50 degrees C) |
| Refer to charge currents below 0 degreesC (32 degreesF) |
Compliance Specifications | |
|---|---|
| Certifications | CE (battery) |
| UL1642 (cells) (File# MH62098) | |
| IEC62133 (cells) | |
| Shipping Classification | UN 3480, CLASS 9 |
