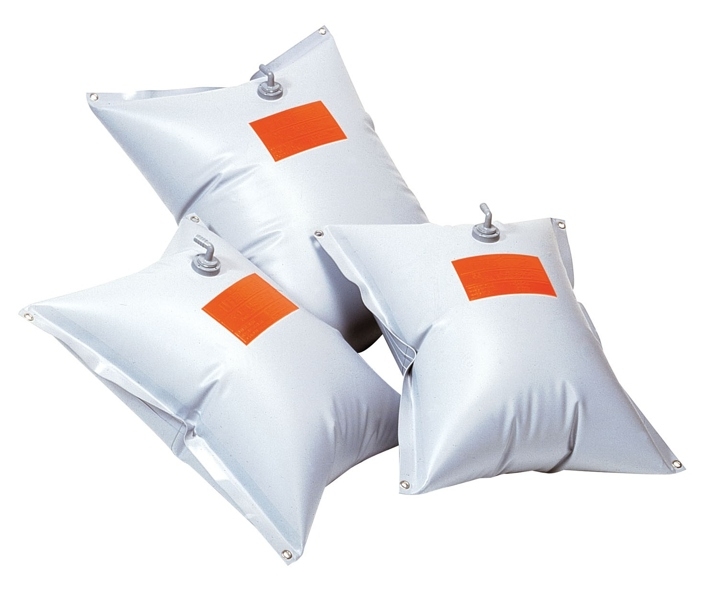

VETUS Flexible Waste Water Tank 160L

The VETUS TANKV160 flexible tank is suitable to store grey and black waste water and is odour tight. It can be installed easily and quickly. It assumes the shape of the space in which it is placed and can be positioned in places that are normally difficult to reach. There is no need for any additional installation parts. Fitting the outlet nipple and connecting the hoses for inlet and outlet are the only things to be done. When filled, the height is approx. 30 cm.
VETUS not only weld the seams, but in addition we also weld an extra strip. This makes the VETUS flexible tank resistant against much higher pressures, especially if the contents are moving when the boat is rolling or pitching.

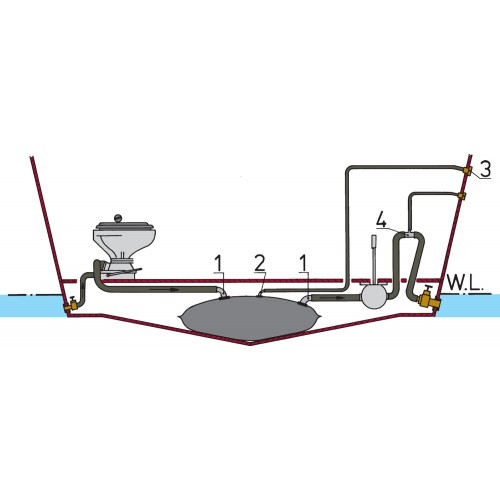

Construction - see drawing for details:

• 1. Two right angle nipples diameter 38 mm (supplied with the tank)
• 2. Right angle breather nipple diameter 16 mm, already fitted.
• 3. Breather nipple diameter 16 mm.
• 4. Breather bend for anti-siphoning device. When discharge of the tank through a deck plate is required, a diameter 38 mm tank connector is available as an option.

Specifications:

Capacity (litres)	160

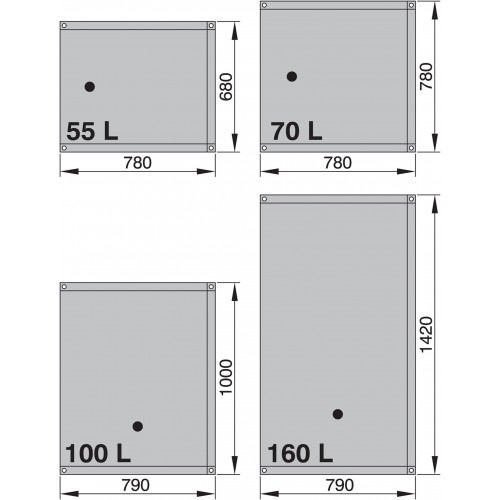

Dimensions (height x width) (mm)	N/A
Material	Synthetic
Rigid/flexible tank	Flexible
Height filled (cm)	N/A

Product Data Sheet
