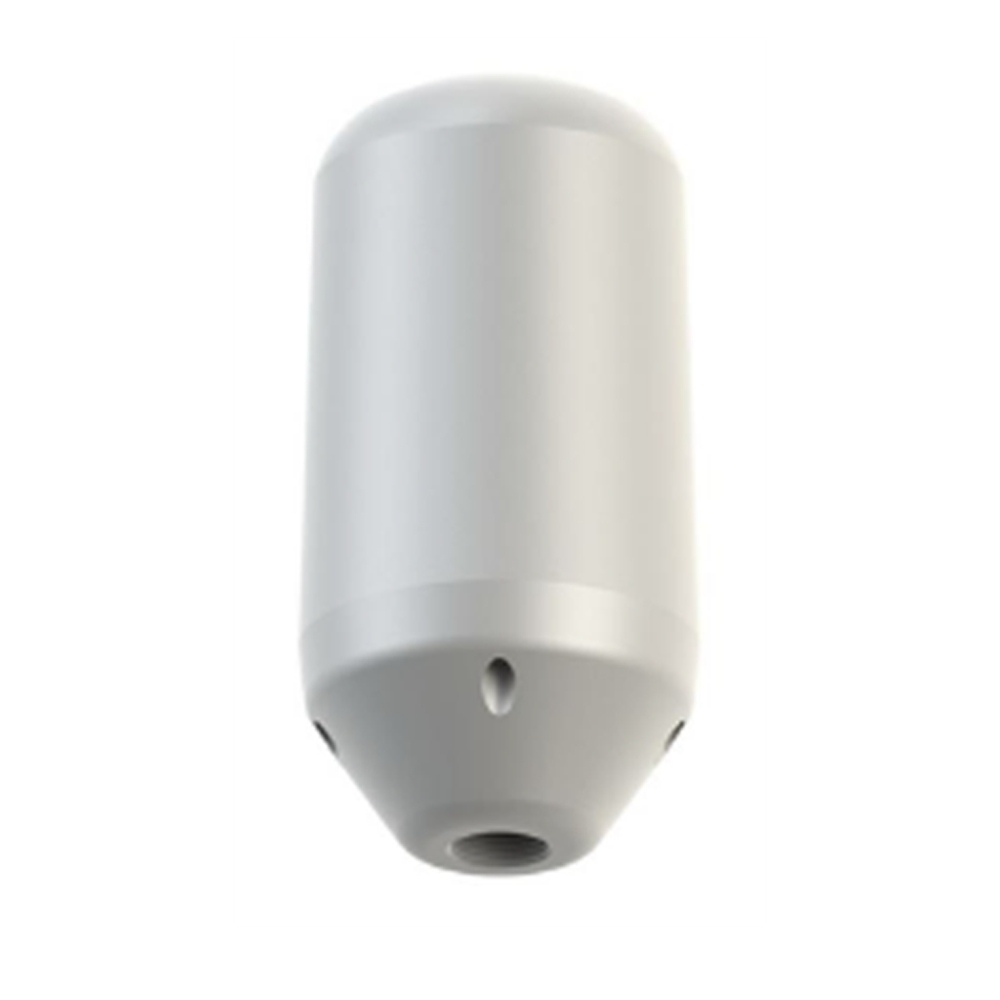

Beam RST210 Mast/Pole/Rail Mount Antenna
Beam RST210 Mast/Pole/Rail Mount Antenna
Item no longer available - contact
us for
an alternative.
Deliver to:
Auckland 0626,
NZ
Estimated:
$5.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
Features:
- Passive Antenna for Iridium terminals
- Well suited for Maritime applications
- Requires no pointing towards satellite
- Low loss radome
- Mounts on any US-style Mounting Bracket with 1'-14NF threaded stud (not supplied)
Specifications:
ELECTRICAL
| Frequency | 1616 - 1626.5 MHz (L-band) |
| Impedance | 50 ohm |
| Vswr | < 1.5 |
| Satellite System | Iridium |
| Polarisation | RHCP |
| Axial ratio | < 6 dB |
| Gain | 2 dBic |
MECHANICAL
| Color | White (non-glossy) |
| Height | 150 mm (191.5 mm mounting base included) |
| Diameter | 95 mm |
| Mounting | On any US-style Mounting Bracket with 1 |
| Mounting Place | On marine vessel or landbased vehicle |
| Materials | ASA, copper, PCB, stainless steel and brass |
| Operating Temperature | -40 degreesC to +70 degreesC |
| Connector | N-female |
| Cable | No cables supplied |
