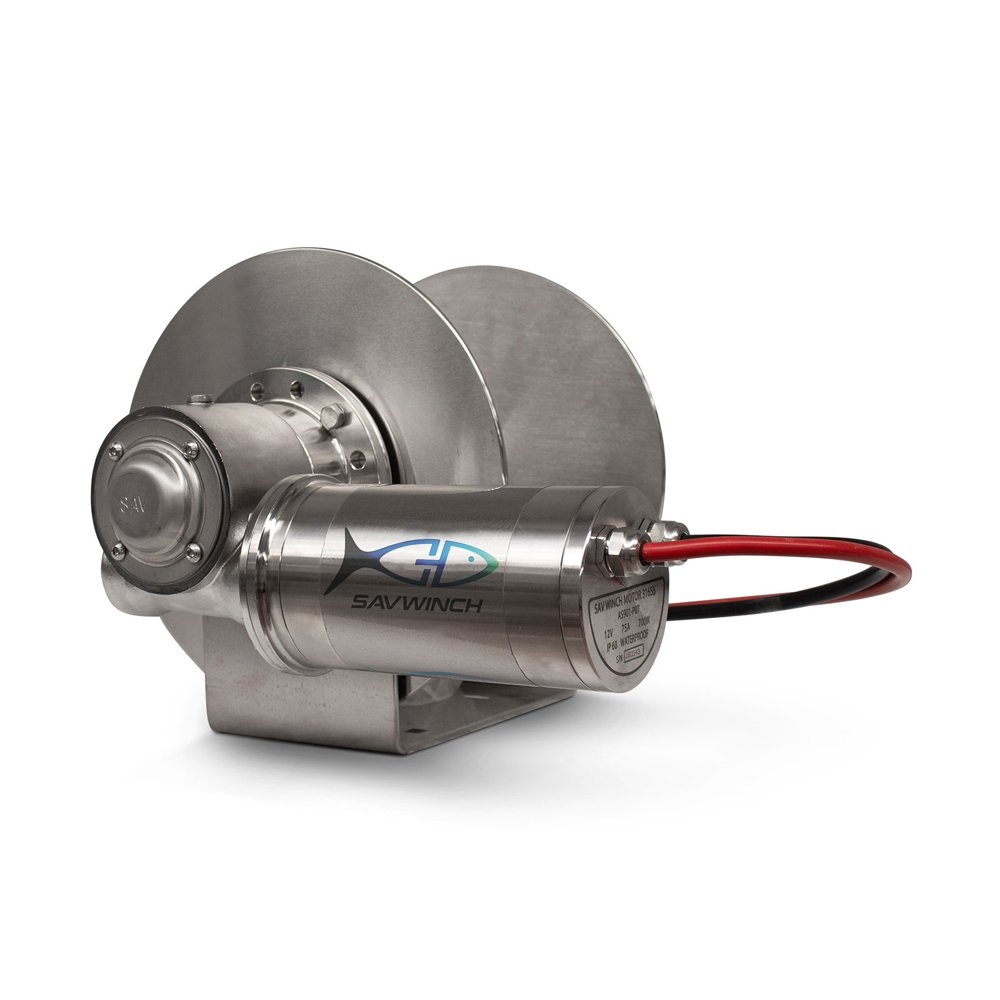

Savwinch Signature Series 1500SS Stainless Drum Winch - OEM

Details

Details

20% more power and speed!

Note: OEM Model does NOT come with backing plate or line roller guide.

The international award-winning Savwinch Signature Series 1500SS Stainless Drum Winch features a specifically designed marine-grade patented motor and an oversized worm drive gearbox, IP68 rated to withstand even the harshest environment.

The Savwinch Signature Series 1000SS Stainless Drum Winch features a completely stainless steel motor, designed exclusively for Savwinch. Machined to fine tolerances and utilising O ring seals, the SS series motor is completely submersible without using sealants or glues.

Savwinch Signature Series 1000SS Stainless Drum Winch Features:

• Marine-grade patented 316 stainless steel motor
• 316 stainless steel drum
• Alloy gear box
• IP68 rated
• Electronic fast fall system
• Reaches speed of over 100m per minute
• Adjustable to 12 positions to suit most vessels
• O ring seals

Savwinch Signature Series 1000SS Stainless Drum Winch Specifications:

• OEM kit code: 153204B
• Winch model: 1500-SS
• Drum size: 280mm
• Suitable for boats up to 8m / 26ft
• Rope length: 95m x 8mm
• Chain length: 8m x 6mm
• Total length: 103m

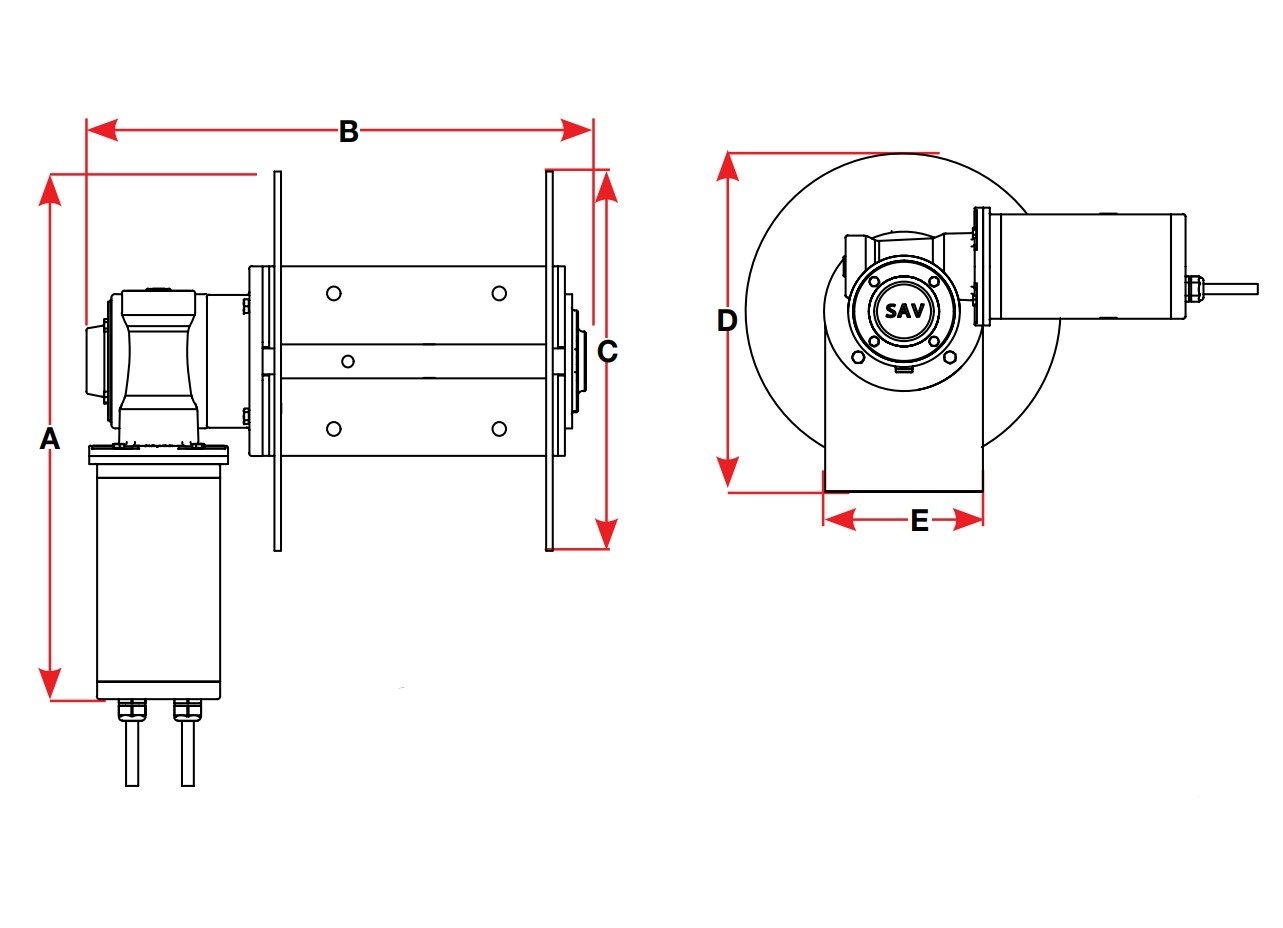

• Dimensions (see images for dimension diagram)
  A: 390mm - measurement does NOT include waterproof glands or wire
  B: 377mm
  C: 280mm
  D: 300mm
  E: 140mm

What's in the box:

• Savwinch Drum Winch
• Up/Down switch
• Solenoid
• Circuit breaker
