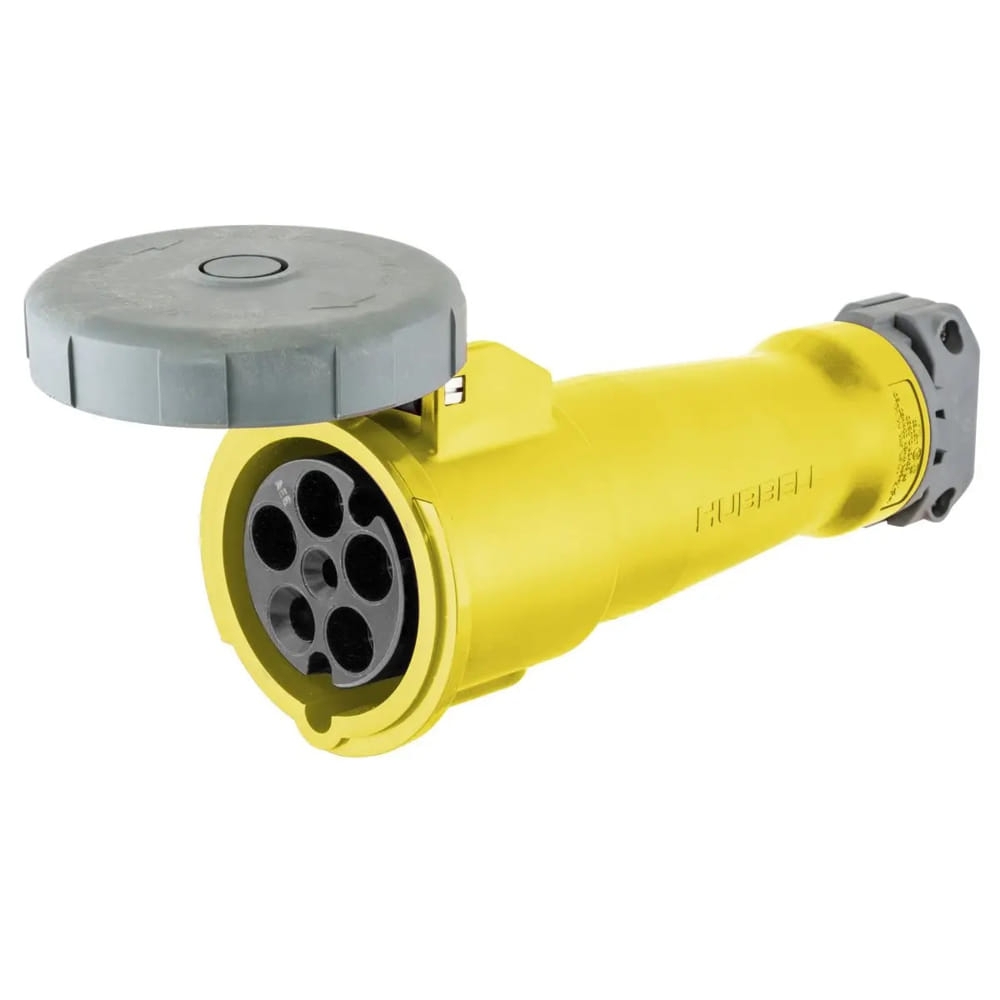

Hubbell M5100C7 100A 480V Female Connector Body

Click on the image above to view full picture

Details

Details

Hubbell M5100C 5-Wire 100 Amp 480 Volt Female Connector Body

Model: M5100C7

Features:
  • Insulated non-metallic housing
  • Self-closing gasketed cover
  • Color coded housings for easy identification

Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow

Specifications
Number Of Poles4
Temperature RatingMaximum Continuous: 75 degrees C; Minimum Continuous: -40 degrees C w/o impact, -25 degrees with impact.
Amperage Rating100
Current Rating100
Voltage RatingThree Phase Y 277 VAC
Three Phase Y 480 VAC
ConductorRange#4AWG to #2AWG
Number Of Wires5
NumberOfConductors5-Wire Grounding
Mates withM5100P7
