Simrad Verado Autopilot Fitting Kit for MKII Pumps

(0)
#9203062

Simrad Verado Autopilot Fitting Kit for MKII Pumps

(0)
#9203062
$809

Delivery options

Deliver to:
Auckland 1026, NZ
Estimated: $5.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)

Buy now, pay later & Finance Options

Find Local Store
Report incorrect product information

Verado steering system autopilot fitting kit for MKII Pumps 1, 2, 3, 4 and 5. Fitted with Verado O-Ring Face Seal fittings use don Verado steering systems.

Fitted hose kit designed for simplified Verado Autopilot installations, reducing the incidence for faulty field terminated hydraulic hoses and incorrect installation layouts.

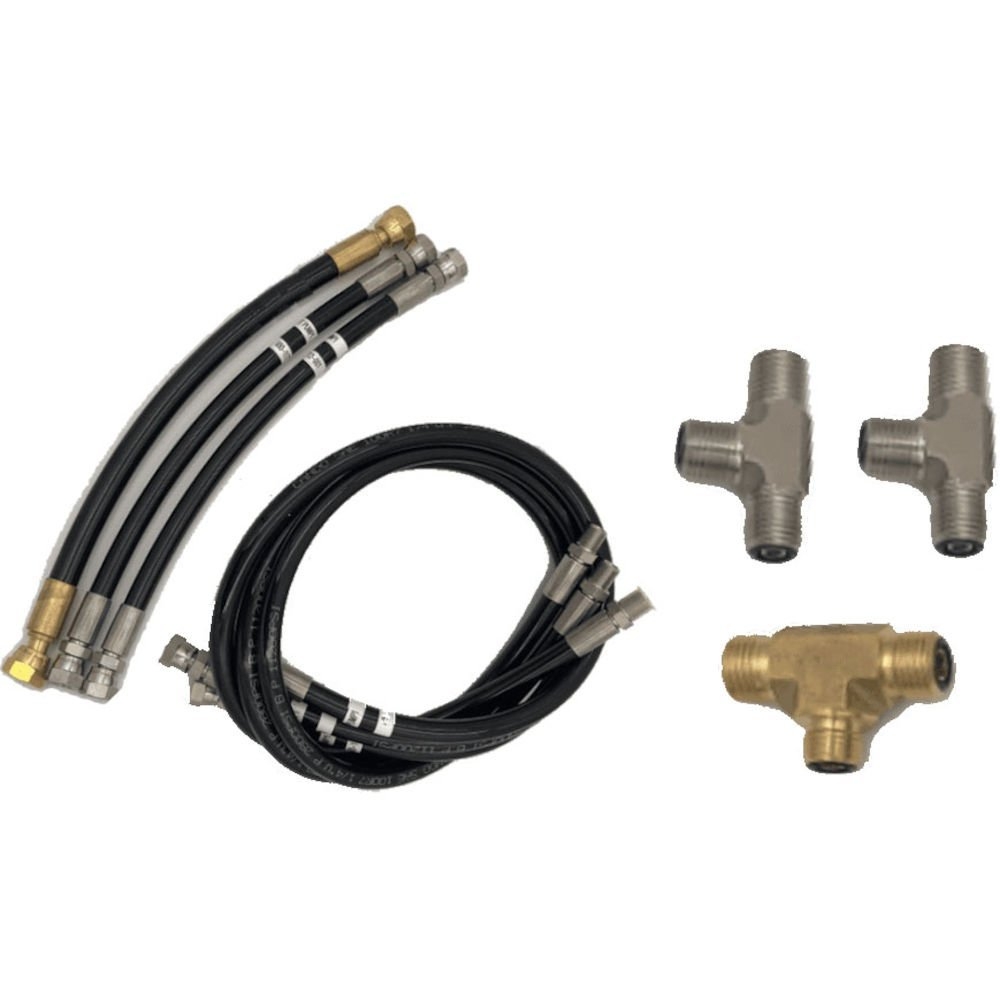

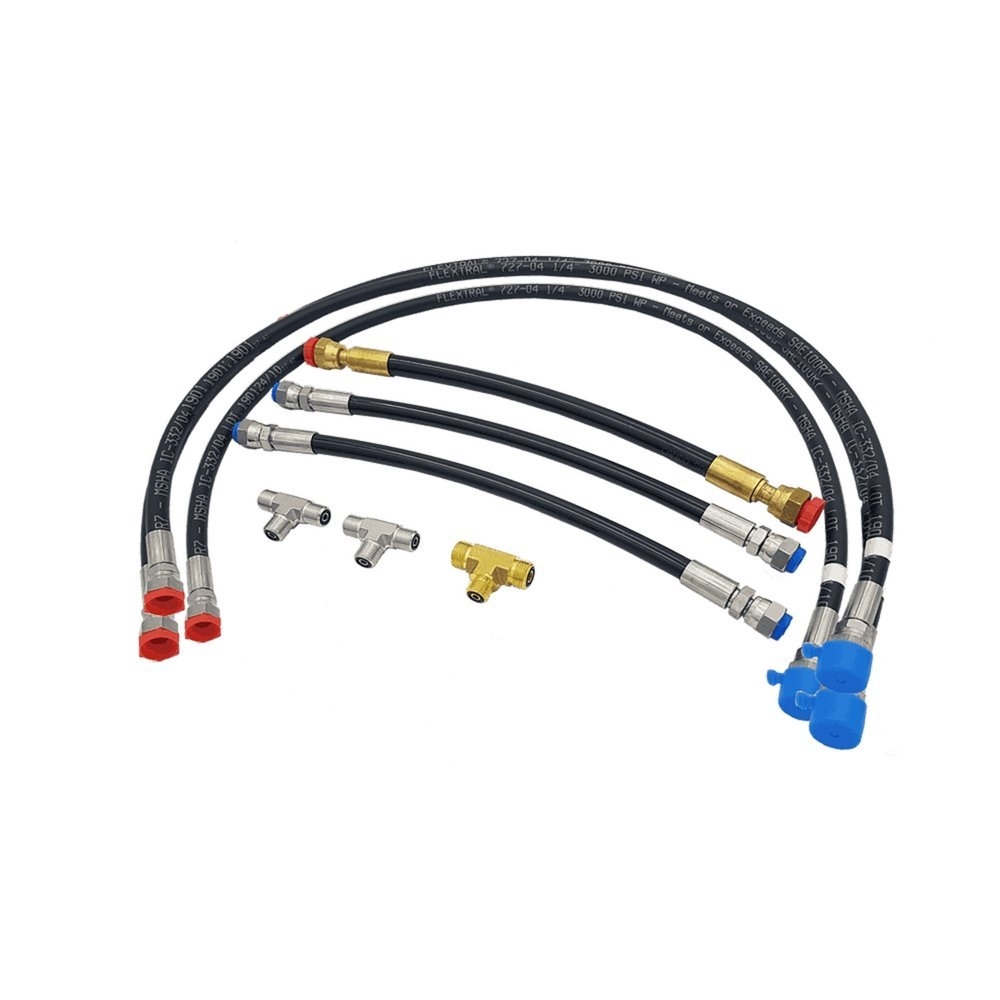

Kit contains:

Features:
  • 3 x Hose 1/4 3000 PSI max, 915 mm (36'), 9/16 UNF to 9/16 ORFS
  • 2 x Hoses 1/4 3000 PSI max, 380mm (15),  9/16 ORFS to 9/16 ORFS
  • 1 x Return Hose 3/8 2250 PSI max, 390mm (15.4),11/16 ORFS to 11/16 ORFS
  • 2 x T Connectors: Stainless: 9/16 ORFS
  • 1 x T Connector: Brass: 11/16 ORFS > 11/16 ORFS > 9/16 ORFS

Advisory on the images used for this listing: The images used in this product listing are based on information provided to us by our suppliers and may represent a product range, or be for illustration purposes only, and may not be an exact representation of the product, and therefore should be used as a general guide only.


Some of our product deals are strictly limited - once they're gone, they're gone! Secure yourself this amazing deal while stocks last...by clicking the Add to Order button above.
