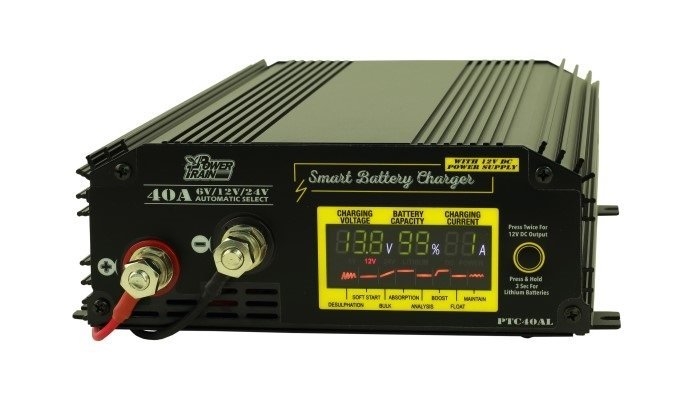

Powertrain Auto 8 Stage Battery Charger 40A 6/12/24v

The Power Train PTC40AL Battery Chargers with automatic charging voltage selection and DC power supply are designed to effectively charge all automotive and industrial type batteries. Manufactured to the latest design parameters and highest quality levels, they incorporate a unique micro-processor controlled Eight Stage Pulse Charging system, which intelligently assesses battery condition and size, to make battery charging much safer, much more effective - and thus prolong battery life. They are ideal for Automotive, Motorhome and Marine applications, to ensure the correct, safest and BEST method of charging a high capacity 6V/12V/24V battery bank or individual batteries.

• Fully automatic voltage selection and 8 stage charging system
• Suitable for charging 6/12/24V Gel, Lead Acid, AGM, Calcium and 12V only Lithium (via MODE button)
• Large easy to read LED display shows the charging stage status, volts and amps output and battery capacity
• Zero Volt battery charging, enabling recovery and charging of a completely deep discharged battery
• Inbuilt protection systems for safe operation
• 5V DC power supply for 20A, 30A and 40A output currents with overload and short circuit protection
• Faulty Battery indicators

• Type: 8 Stage Battery Charger
• Input Voltage: AC 175 - 255v / 50 - 60 Hz
• Output Current: 40amp
• Output Voltage: 6/12/24v and 13.5 DC
• Rechargeable Battery Type: Gel, Lead Acid, AGM, Calcium, Lithium (12V only)
• Chargeable Battery Type: 17 A/H to 300 A/H
• Working Temperature: -15C to 55C
• Start Voltage: 0 volts
