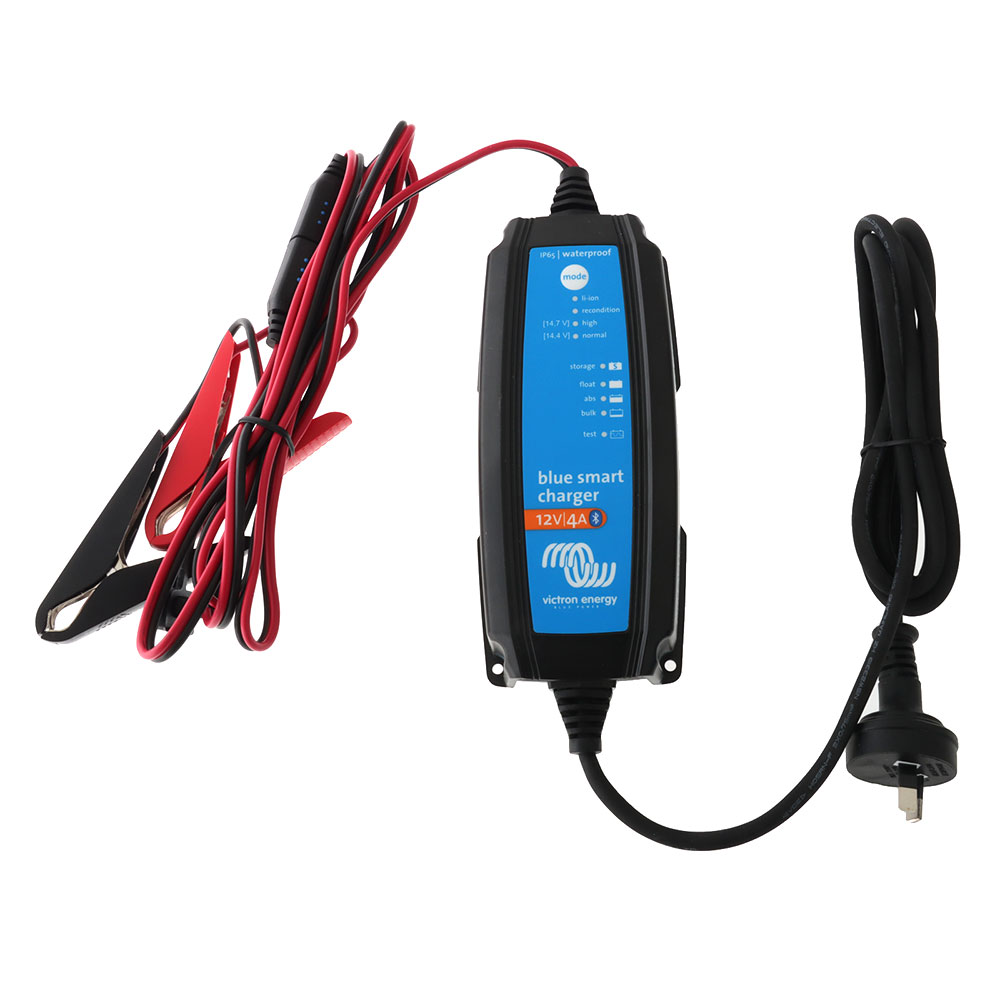

Victron Blue Smart IP65s Charger 230V AU/NZ 12V/4A

Ultra high efficiency green charger

The Victron Blue Smart IP65s Charger belongs to a new range of smart green chargers from industry-leader Victron. This professional battery charger now comes with built-in Bluetooth. It’s great for a wide variety of applications, such as charging devices in your workshop and on vehicles like cars, motorbikes, boats and camper vans.

The Victron Blue Smart IP65s Charger is built to be water, dust and chemical resistant, ideal for your rugged outdoor lifestyle. It features a seven-step smart charge algorithm and can recover fully discharged ‘dead’ batteries. With up to 95% efficiency, it can generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0.5 Watt. The charger also has an automatic power supply function and can operate in severe cold, down to -30deg C.

Victron Blue Smart IP65s Charger Features:

• Durable, safe and silent
• Reverse polarity protected
• Recovery function for fully discharged batteries
• Temperature compensated charging
• Adaptive battery management
• Storage mode reduces corrosion of positive plates
• Seven step smart charge algorithm
• Automatic power supply function
• 5-year limited warranty

Victron Blue Smart IP65s Charger Specifications:

• Model: BPC120433014R
• Input voltage: 230V AC
• Efficiency: 94%
• Standy power consumption: 0.5W
• Minimum battery voltage: Stars charging from down to 0V
• Charge voltage absorbption: Normal 14.4V, High 14.7V, Li-ion 14.2V
• Charge voltage float: Normal 13.8V, High 13.8V, Li-ion 13.5V
• Charge voltage storage: Normal 13.2V, High 13.2V, Li-ion 13.5V
• Charge current: 4A
• Charge current in low current mode: 2A
• Temperature compensation (lead acid batteries only): 16 mV / degrees C
• Can be used as power supply: Yes
• Back current drain: 0.7Ah / month (1mA)
• Protection: Reverse polarity, Output short circuit, Over temperature
• Operating temp range: -30 to +50deg C (full rated output up to 30deg C)
• Humidity (non condensing): Max 95%

Enclosure

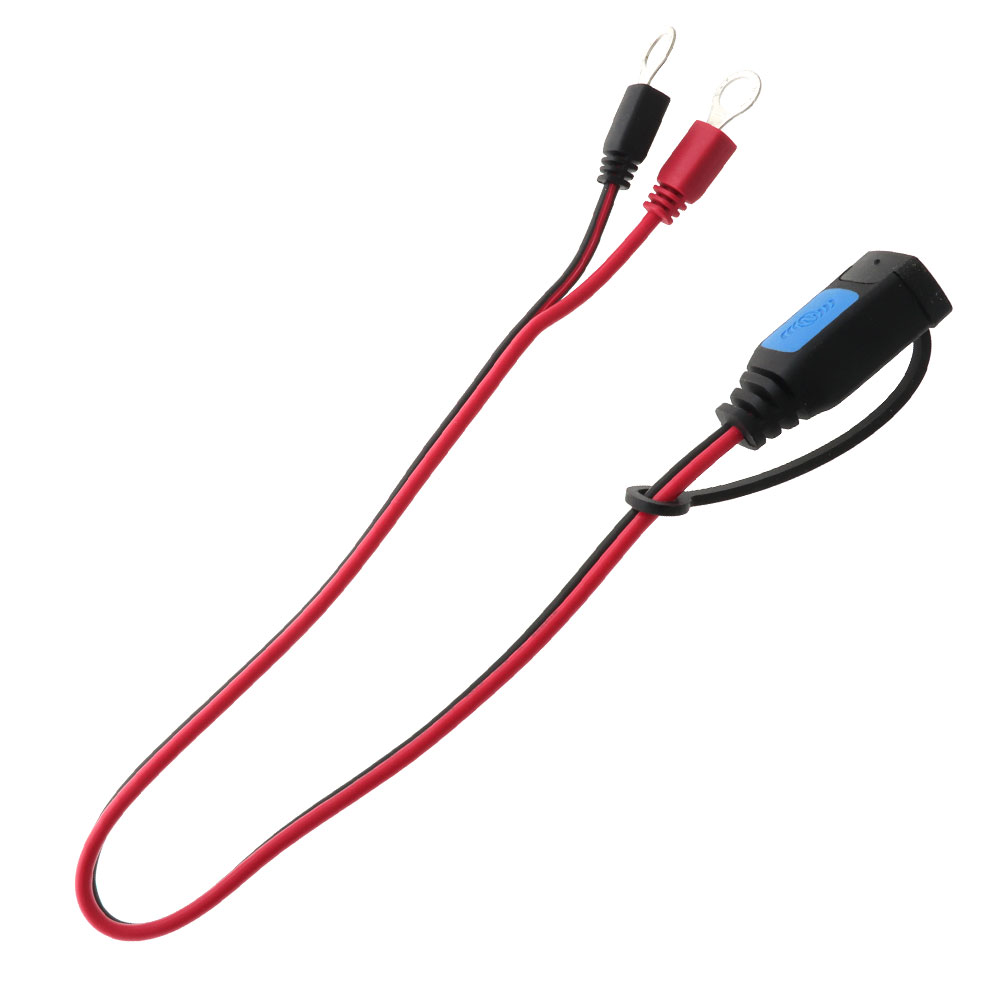

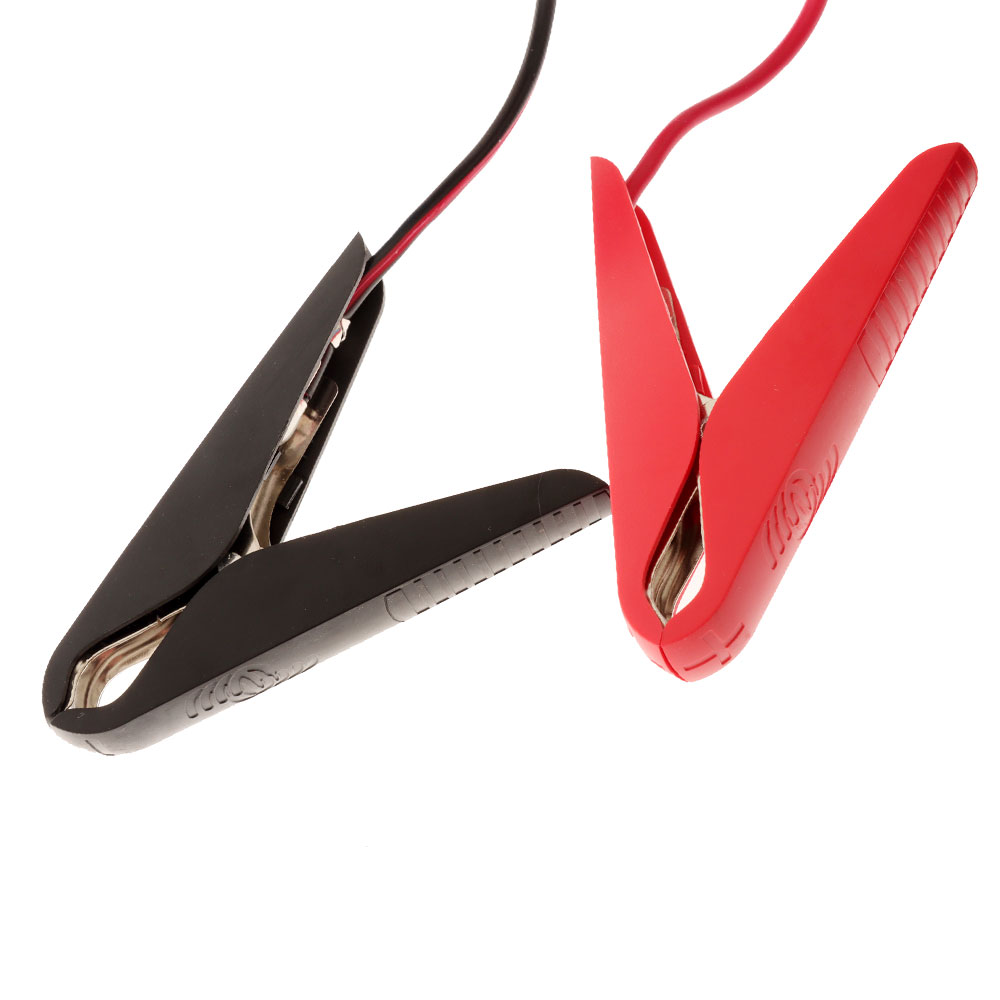

• Battery connection: Black and red cable of 1.5 meter
• 230 V AC connection: Cable of 1.5 meter with CEE 7/7, BS 1363 plug (UK) or AS/NZS 3112 plug
• Protection category: IP65 (splash and dust proof)
• Weight: 0.9kg
• Dimensions (H x W x D): 45 x 81 x 182mm

Standards

• Safety: EN 60335-1, EN 60335-2-29
• Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
• Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3

Victron Blue Smart IP65s Charger Product Manual
