HyDrive Commander COMKIT-1B2 Inboard Motor Kit

Tired of fighting the steering on your boat?

Ideal for pleasure boats on inboard rudders or jets, the new HyDrive Commander COMKIT-1B2 Inboard Motor Kit is a good quality kit that comes with 501 helm and 510 inboard cylinder. It's designed to offer a budget range of hydraulic steering for leisure and commercial boat users without sacrificing quality and performance. So if you want to install a durable and reliable steering system in your boat, put the HyDrive Steering System in command.

The Steering Cylinder
For small to medium in-board powered boats with rudders, the model 510 inboard cylinder is an ideal choice for rudder torques up to 70KgM. Installation is simple, performance is great and handling is direct with only 5.4 turns HO/HO.

The Helm
The new Commander Series 501 Helm Unit is the result of two years of design development and combines the elements of great performance and economic design. This unique 7-piston pump has a highly efficient combination of features designed to provide maximum performance and longevity for leisure boat users. It is not designed for commercial users or for very large HP outboards.

HyDrive Commander Series 501 Helm Unit Features:

• Compact front-mount design

• Unique high-tech composite alloy body for total corrosion resistance

• In-built lock valve prevents torque feedback - the wheel stays where you put it.

• Field replaceable shaft sea

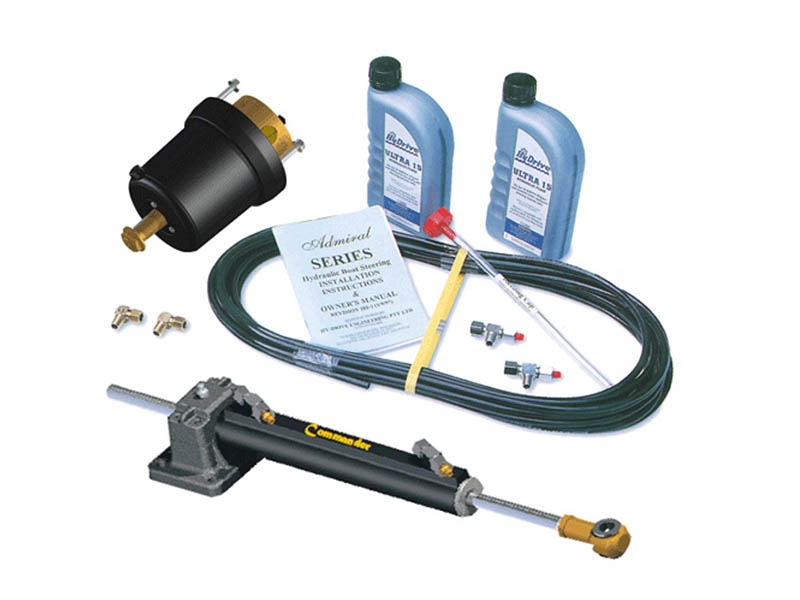

What's in the Kit:

• Model 501 Helm

• Model 510N8 Cylinder

• 2 litres ULTRA-15 Fluid

• 15m 3/8" OD Nylon Tubing

• Bleeding Kit

• All fittings

• Installation Manual


HyDrive Commander Series Product Brochure
