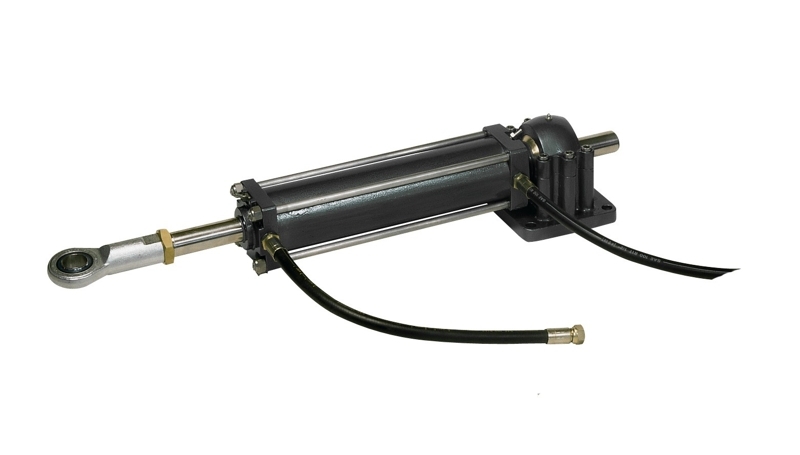

VETUS MT0600 Cylinder incl Flexible Hoses

Details

Details

This cylinder has a base plate with a universal joint and swivelling rod end, so that alignment mistakes can be absorbed. Bleed nipples also included.

Specifications:

Connections	All connections are provided with G 1/2 female pipe thread
Max. pressure (bar)	6178 kPa (63 kg/cm2)
Total rudder angle	70 degrees
Weight of cylinder (kg)	35,1
Dimensions of tubes (mm)	18 x 15
Cylinder volume (ccubic metre)	1319
Length of tillerarm (mm)	175
Cylinder stroke (mm)	200
Max. torque at 35 degrees rudder angle (kgm)	600
