Blue Sea 4161 10A Push Button LED Ring Switch Off-(On) Blue Momentary On

#9191301
Warranty Badge - 12-Months
Ships Dec 23 - Jan 21
ONLY $54.99

Seen a lower price? Ask us to beat it

Add Items to Cart
No payments or interest for 12 months*

💬 Report incorrect product information

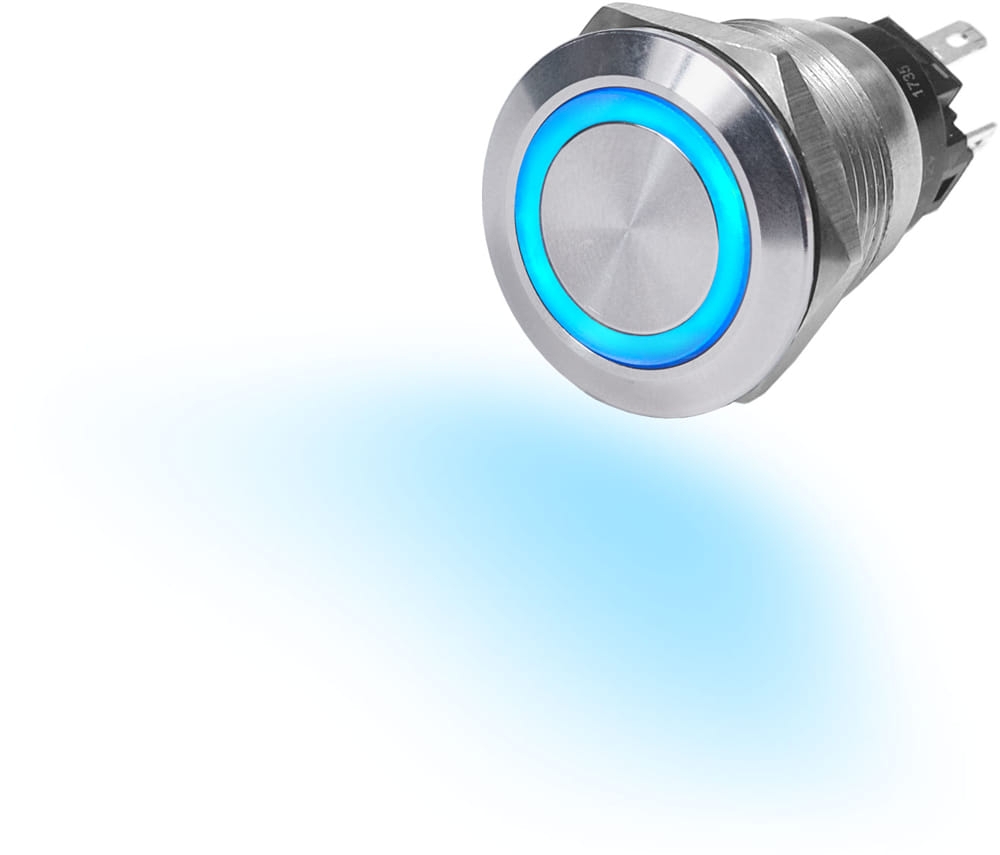

Blue Sea 4161 10A Push Button LED Ring Switch Off-(On) Blue Momentary On

Click on the image above to view full picture

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Hella Marine Stainless Steel LED Switch

Hella Marine Stainless Steel LED Switch
Details

Details

Blue Sea 10A Push Button LED Ring Switch Off-(On) Blue- Momentary On

Model: 4161-BSS

Features:
  • 10A continuous
  • Can be wired for normally open or normally closed
  • Installs with .110inch quick connects (included in retail package)
Specifications
ActionOFF-(ON)- Momentary One
Amperage10A @ 12V DC Resistive
3A @ 12V Inductive
Nominal Voltage12V DC
Maximum LED Operating Current20mA
Minimum Operating Temperature-10 degrees C
Maximum Operating Temperature70 degrees C
Minimum Storage Temperature-55 degrees C
Maximum Storage Temperature85 degrees C
IlluminationIndependent — Separate contacts for LED power
Max Panel Thickness0.31in (7.87 mm)
Mounting Hole¾ (19mm)
Switching Cycles40,000
Termination5 — 0.110inch Quick Connect terminals
