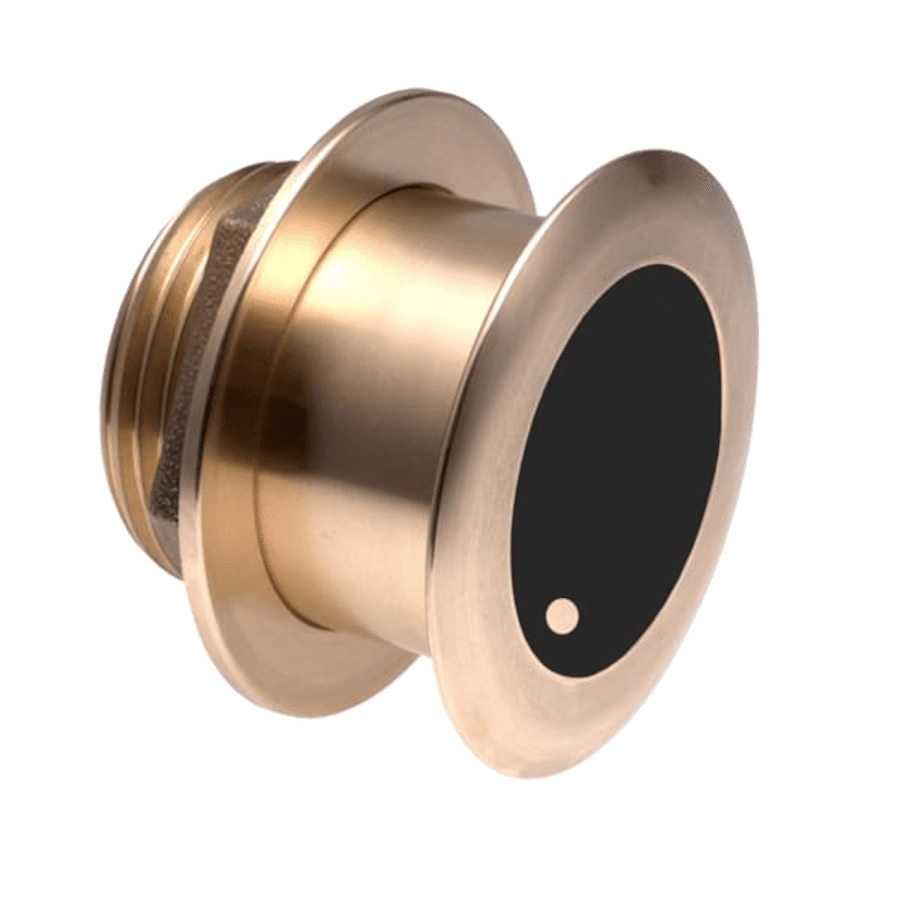

Airmar B164-12-MM 50/200kHz 1kW 12-deg Tilt Thru-Hull Transducer Mix and Match

1 kW

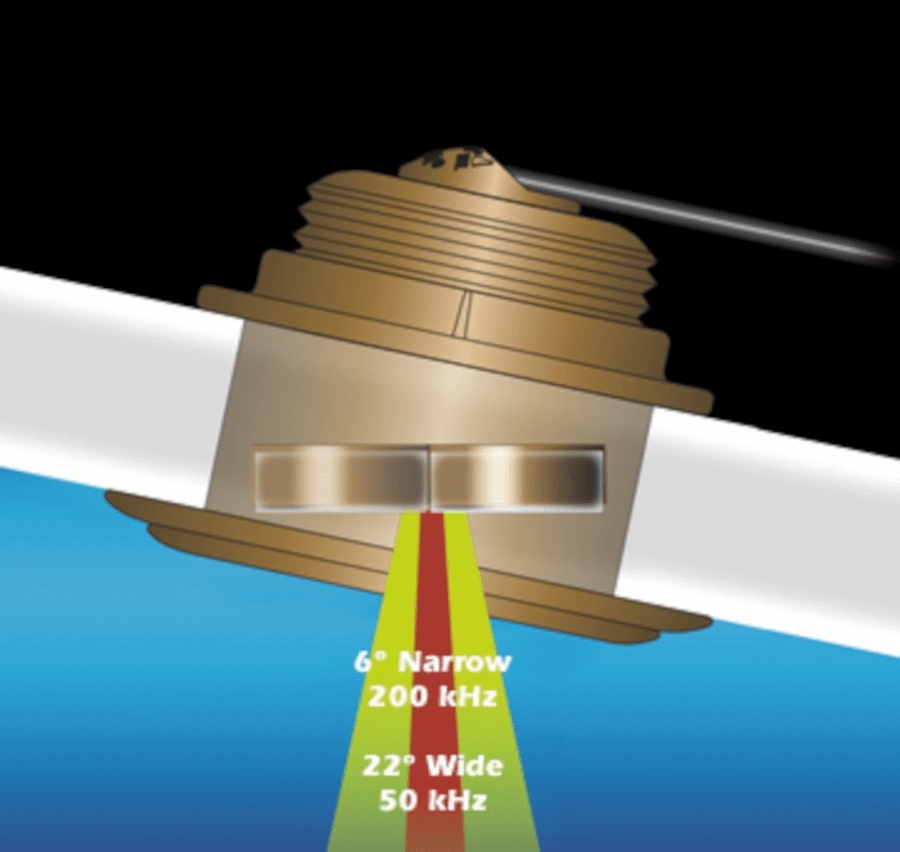

Step up to a 1 kW-without a fairing! The 1 kW, flush-mount, Tilted Element transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4') below the hull, so it can sit on trailer rollers and bunks. The ceramic arrays are tilted inside the housing, providing the perfect vertical beam with maximum energy on what is directly below the boat.

Available in three Tilted Element models:

• Fixed 20 degrees tilted version for 16 to 24 degrees hull deadrise angles
• Fixed 12 degrees tilted version for 8 to 15 degrees hull deadrise angles
• Fixed 0 degrees tilted version for 0 to 7 degrees hull deadrise angles

• Depth and fast-response water-temperature sensing
• 1 kW of power
• Dual-frequency elements:
• 50 kHz with a wide 22 degrees beamwidth for depth performance to 529 m (1800')
• 200 kHz with a 6 degrees beamwidth for depth performance to 235 m (800')
• Interfaces to any 600 W or 1 kW echo sounder
• Engineered for center-console and trailered boats
• Low-profile bronze housing extends less than 6.35 mm (0.25') below the hull
• No effect on boat's running performance
• Available in a stainless steel housing (SS164) for use in all hull materials
• Patented Xducer ID technology

• Brand: Airmar Technology
• Connector: Airmar 9-Pin (MM1)
• Display Connector: Cable Required
• Housing Material: Bronze
• Mounting Style: Tilted Element Thru-Hull
• Sensor Connector: MM1
• Weight: 2.7 kg (6 lb.)
• Common Use: Leisure/Yachting, Fishing
• Deadrise Range: 8 degrees to 15 degrees
• Frequency Band: 50/200 kHz
• Transducer Functions: Depth, Temperature
• Country of Origin: USA
• Single or Dual Frequency: Conventional Dual Frequency
• Tilt Angle: 12 degrees

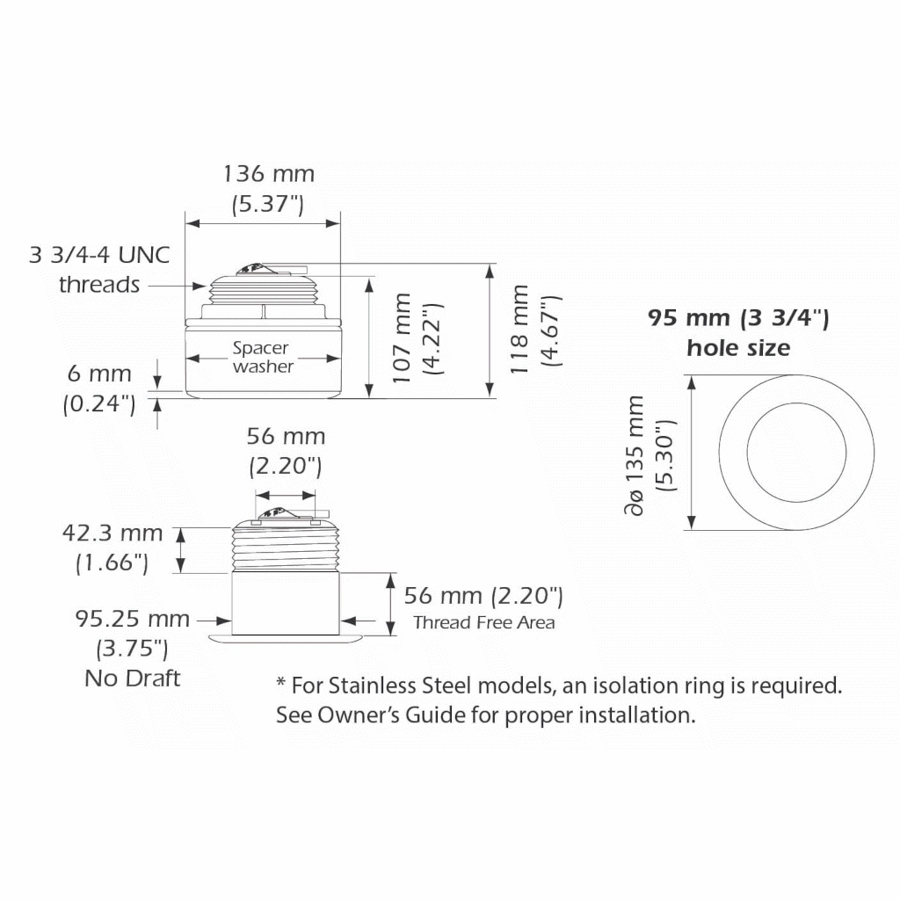

• Hole Size: 95 mm (3-3/4')
• Max Deadrise Angle: 24 degrees
• Mix and Match Series: 9-Pin 1000 Watt
• Power Rating: 1 kW
• Usable Shaft Length: 71 mm (2.80')
• Cable-Length: 9 m (30')
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 11 m (36')
• Tilted Element: Yes
• Retractable housing: No
• Max Deadrise: Up to 24 degrees
• Max Depth: 500 m (1640')
• Acoustic Window: Urethane
• Conventional Beam: 22 degreesx20 degrees/6 degrees
