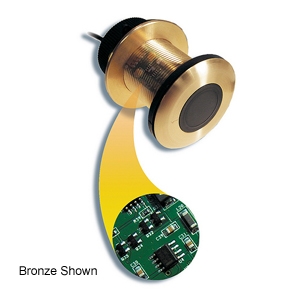

Airmar DT820PV-235-N2 Smart Transducer for NMEA 2000 Low Profile 20 degree Tilt 235kHz

Accurate depth readings at any speed

• NMEA2000® output
• Low-Profile 20° Tilt
• Plastic, with valve
• 100 W RMS power
• Broadband 235 kHz Ceramic
• Enhanced depth performance
• Excellent high-speed performance
• Urethane face provides better sensitivity
• Retractable insert provides ease of serviceability
• 235 kHz eliminates mutual interference with fishfi nders
• All models have depth and temperature
• 6 m (19.8’) NMEA2000 devicenet cable and connector

• Maximum Depth Range: 180 m (594’)
• Minimum Depth Range: 0.5 m (1.6’)
• Usable Shaft Length: ~57 mm (2.25”)
• Frequency: 235 kHz
• Beamwidth: 12°
• Fixed 20° tilt for 16° to 24° deadrise
• 51 mm (2”) housing
• Blanking plug included
• Accommodates maximum hull thicknesses 54 mm (2 1/8”)
• Accommodates minimum hull thicknesses 6.3 mm (0.25”)
