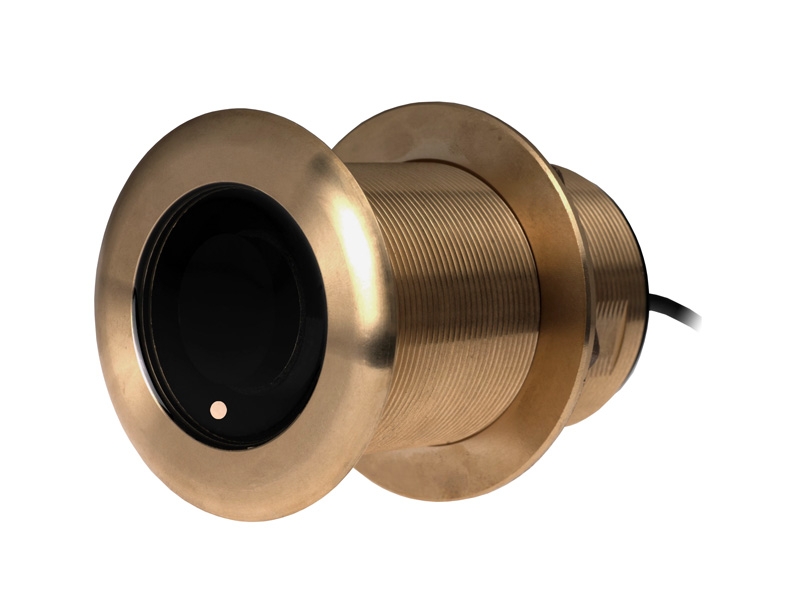

Airmar XSONIC B150M Bronze Tilted Element Thru-Hull Transducer 12-degree Tilt

Amazing detail

Designed for offshore and freshwater fishing, the Airmar XSONIC B150M Bronze Tilted Element Thru-Hull Transducer operates at a frequency range of 95-155kHz. This transducer reveals fish in shallow, murky waters at medium depths (up to 2,500 feet) along with ultra-clear target resolution. The medium frequency provides sound deeper than the high frequency, along with better resolution than the low frequency - you get the best of both worlds.

XSONIC Connector
Airmar XSONIC Transducers come with the new 9-Pin Black XSONIC connector. This transducer is compatible with Lowrance HDS Gen3, HDS Carbon and Elite-7 ti models. No need to mix, match or splice. Just plug and go!

Airmar XSONIC B150M Bronze Tilted Element Thru-Hull Transducer Features:

• Depth and fast response water temperature sensor
• Ideal for inshore or coastal fishing in shallow to medium depths
• Freshwater anglers will see fish holding close to structures and suspended fish
• Track bottom at higher boat speeds
• More coverage under your boat delivers wider arches and 26° to 17° beamwidths
• Cover the medium frequency range—CHIRPs from 95-155kHz to provide 60 kHz of total bandwidth from one transducer
• Hull Type: Wood, fibreglass and metal stepped, planing or displacement type hulls
• 1 internal ceramic
• Provides the ability to sound deeper than the high frequency, along with better resolution than the low frequency
• Wider beam than the high frequency, achieving more coverage under the boat and greater opportunity to find fish
• Clear images at higher boat speeds
• XSONIC 9-Pin connector
• Hull Deadrise: Up to 24°
• Fixed 12° tilted version for 8° to 15° hull deadrise
• Engine Type: Can be used with all propulsion types
