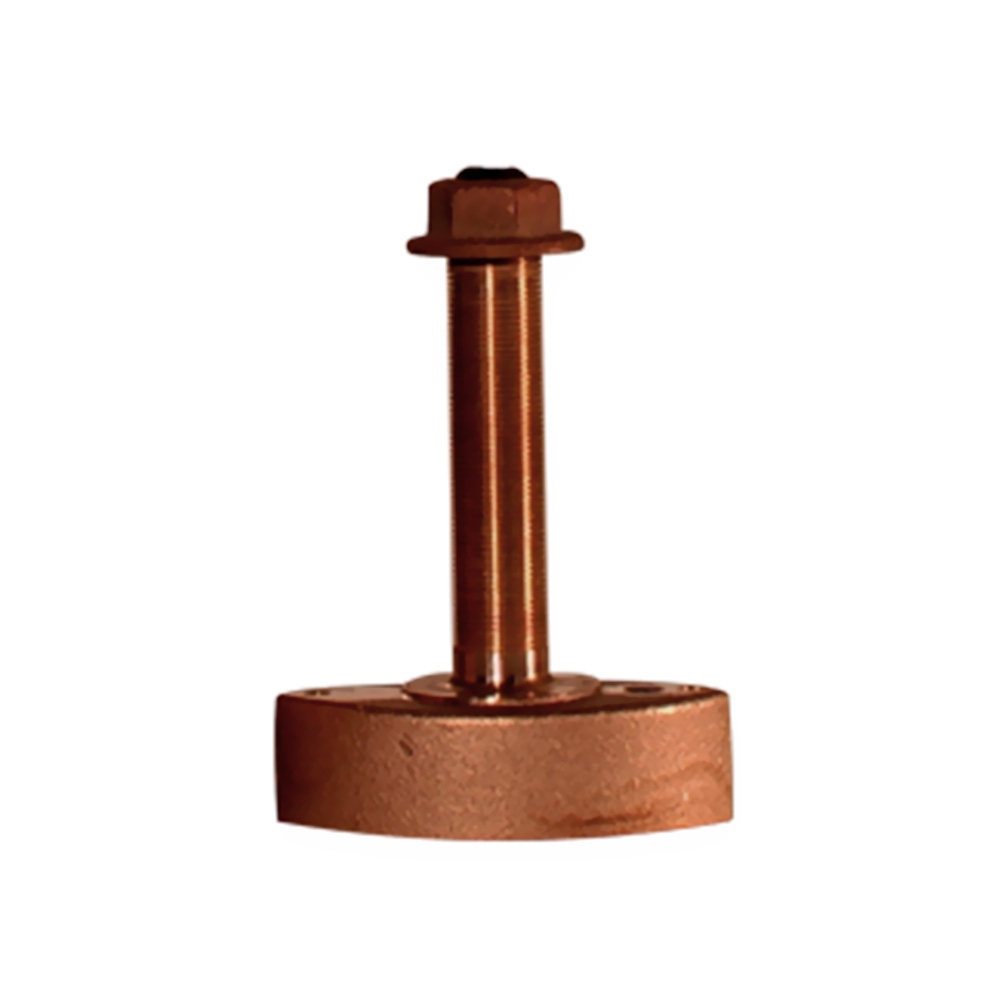

Furuno 525T-BSD (Airmar B45) Bronze Thru-hull Transducer

Accurate and sensitive

The Furuno 525T-BSD Bronze Thru-hull Transducer is a compact dual-frequency transducer with an external fairing that can be cut to match deadrise angles of up to 24 degrees. It features a unique streamlined shape that deflects aerated water from the transducer's face for strong return echoes and clear image displays. This version has a Furuno 10-pin connector and is sold by Furuno as part 525T-BSD.

Furuno 525T-BSD Bronze Thru-hull Transducer Features:

• Shielded ceramic element for noise-free echo sounder display

• Small, low cost bronze housing

• Double-ended shape of housing deflects aerated water to provide clearer echoes

• Suitable for planing-hull powerboats and cruising sailboats up to 30 ft. in length

• Fast-response water temperature sensor accurate to ±0.1°F


Furuno 525T-BSD Bronze Thru-hull Transducer Specifications:

• Furuno model number: 525T-BSD

• Airmar B45 Housing Style Transducer

• Function: Depth/Temperature

• Material: Bronze

• Frequency: 50/200kHz

• Cone: 45°/15°

• Power: 600W RMS

• Connector: 10-pin

• Mount: Thru-hull

• Connector: 10-pin

• Cable: 30 ft.

• Depth range: 800 -1200ft (50kHz) / 400 -700ft (200kHz)

• Acoustic window material: Urethane

• Compatible hull materials: fibreglass or wood

• Hole diameter for installation: 0.875in

• Dimensions (LxWxH): 3.97in x 2.15in x 4.5in
