Precise depth readings

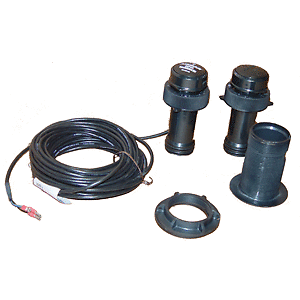

The Raymarine D800/P17 Through Hull Retractable Transducer is a retractable, depth-only transducer in a plastic housing. Its nearly flush low-profile model minimises drag with only 3/16" protruding outside of hull suitable for your high-speed powerboats and racing sailboats. The D800’s retractable transducer insert is easily removed from the housing whenever you need to maintenance checks or take them out for storage.
Note:Using the Raymarine D800 with an ST70 or an i70 instrument requires use of an iTC5 Instrument Transducer Converter sold separately.
Raymarine D800/P17 Through Hull Retractable Transducer Features:
- Depth-only transducer in a plastic housing with retractable
insert
- Nearly flush low-profile model minimises drag with only 3/16"
protruding outside of hull
- Self-jacking transducer insert is easily removed from housing
for quick service or storage
- Right-angle cable exit reduces required headroom and protects
cable from damage
- Housing is ABYC H-27 compliant
- Includes rubber washer for tightening of hull nut to irregular
hull surfaces
- Suitable for high-speed powerboats and racing
sailboats
- Compatible with Raymarine ST40, i40, ST60, i50, ST290, ST70 and i70
Raymarine D800/P17 Through Hull Retractable Transducer Specifications:
- Mount: Thru-hull
- Housing Material: Plastic
- Cable: 13.7m
- Frequency: 200 kHz
- Cone: 13°
- Power: 250 Watts RMS
- Max. Depth Range: 122-152 m
- Acoustic Window Material: Urethane
- Compatible Hull Materials: Fibreglass or aluminium
- Hole Diameter for Installation: 2 in
