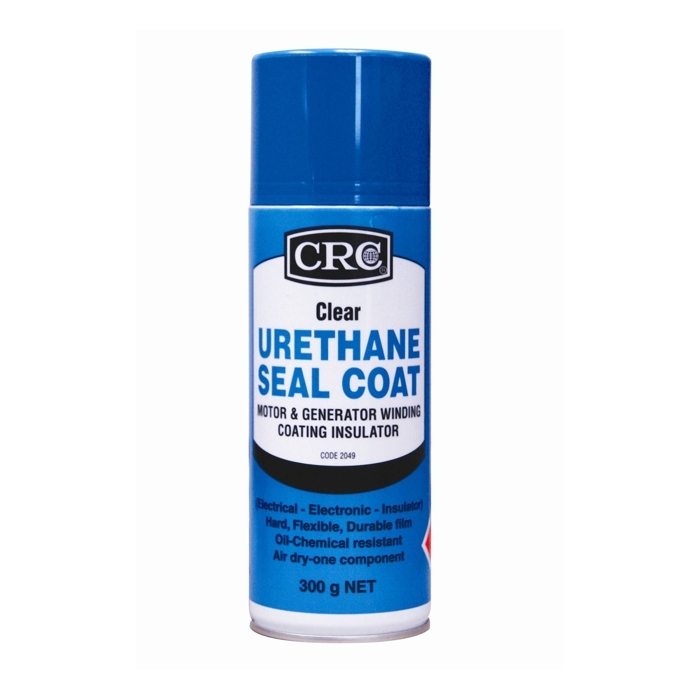

CRC Clear Urethane Seal Coat Aerosol 300g

Urethane-based insulating coating for electrical applications

CRC Clear Urethane Seal Coat provides a stable single component polyurethane coating for electrical and electronic applications. It dries fast, adheres well and forms a hard, durable, flexible and non conductive film for electrical motor windings and armature coils.

Due to chemical cross linking reactions ocurring after the drying stage, CRC Clear Urethane Seal Coat seals out water and moisture and is resistant to shock, abrasion, salt air and aggressive chemical atmospheres. The clear coloration allows for visual inspection and is ideal when a see-through coating is required. There is no mixing, no clean up, no excessive waste. It is easy to apply and saves time and labour.

Uses

• Insulating coating - Electric motor windings, armature coils, commutator ends, stator coils, terminals, housings, transformer ends, bus bars, solenoids, cables and wires, printed circuit boards
• Coating for components exposed to atmospheric effects - Terminal strips, screw connections, switch boxes
• Protecting components from condensation and moisture

CRC Clear Urethane Seal Coat Features:

• Ready to use - No additional mixing or chemical additives required. No clean up
• High di-electric strength - Ideal for electrical/electronics applications
• Environmental and mechanical protection - To significantly extend product life
• Wide Temperature Range - Up to 100 degreesC
• Fast drying - 15-30 minutes to handle, full cure in 72 hours
• Aerosol - Easy application, no clean up required
• Corrosion Resistance - Up to 2 years outdoors

CRC Clear Urethane Seal Coat Specifications:

Approvals

• USDA Authorised for use in Federally inspected Meat and Poultry Plants
• NSN 5970-01-101-7019

Physical Properties

• Appearance: Red liquid
• Odour: Faint aromatic
• Propellant: Hydrocarbon
• Flash Point (Open Cup): 43 degreesC
• Specific Gravity (20 degreesC): 0.86 plus or minus 0.02
• Viscosity (25 degreesC): 50cps
• Elongation: 10%
• Dielectric Strength (ASTM D877): 2000 Volt/mil
• Volume Resisitivity: 8.4 at 10ohms/cm
• Surface Resistivity: 1.2 at 10ohms/cm
• Adhesion (Bell Laboratory Test): Exceeds 10,000g
• Corrosion Resistance: Up to 2 years outdoors
• Theoretical Coverage: 2m2/can

Performance Characteristics

• Touch Dry: 30 minutes
• Full Cure: 12 hours
• Time to Recoat: Within 40 minutes / after 12 hours
• Average Film Thickness: Passes ASTM D115
• Oil Resistance: Passes ASTM D115
• Temperature Resistance: =100 degreesC
• Corrosion Resistance: Up to 2 years outdoors
• Theoretical Coverage: 2m2/can
• Clean up with: Methylene chloride or other chlorinated solvents
