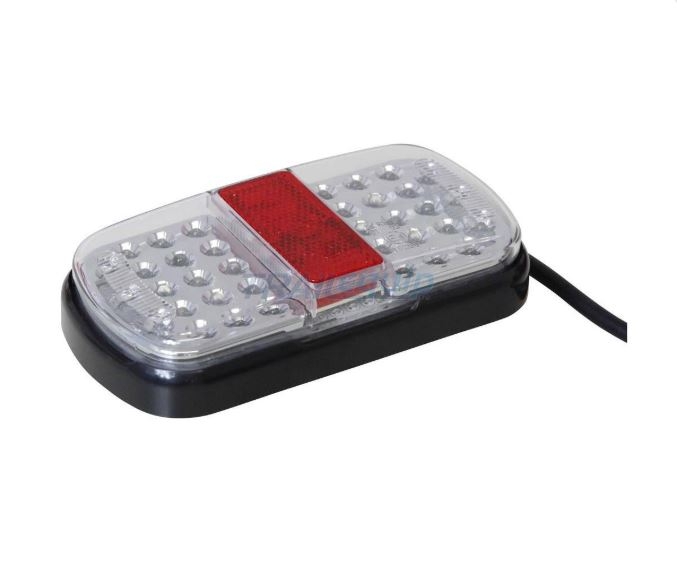

Trailparts LED Lamp Kit 160mm M/V with NPL Rectangle
Trailparts LED Lamp Kit 160mm M/V with NPL Rectangle
Deliver to:
Auckland 0626,
NZ
Estimated:
$5.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Fully submersible LED tail lamps
Trailparts LED Lamp Kits are designed to be an easy to fit trailer lighting solution that can be fitted in a range of orientations. Box trailers need lamps to fit in a horizontal orientation and shine the number plate across the trailer, from the narrow side of the lamp, whilst boat trailers need a number plate lamp that shines out of the wide side of the lamp downwards. In an innovative solution, the Trailparts lamps have number plate lamps fitted to one short and one long side of the right hand lamp, with the user simply connecting whichever of the two number plate function wires that suits their application best. The fact that they look good, have cable length options, are submersible, and E-marked makes them a first choice for many trailer builders.
Trailparts LED Lamp Kit Features:
- Part number: L1200MK
- Compact size (LxWxD): 160 x 80 x 30mm
- Strong impact resistant polycarbonate lens
- Inbuilt retro-reflector
- 10-30v capable
- E-mark (E4) certified
- 100% Submersible
- Left Hand lamp has 300mm 4-core cable
- Right Hand lamp has 2 number plate lamps, 3m 6-core cable
- Two number plate lamp orientation options
The below wiring details applies to Trailparts lights only:
- Left hand side
- Right hand side
Brown = Tail lamp
Yellow = Indicator lamp
White = Earth
Blue = Number plate lamp - short side
Red = Stop lamp
White = Earth
Brown = Tail lamp
Green = Indicator
