Ensure proper suspension

Leaf springs are an integral part of your trailer's suspension system. These tough pieces allows your suspension to move with the bumps in the roadway so that the energy is not transferred from the wheels to the chassis, ensuring a smooth ride.

Whether you're building your own boat trailer, replacing worn out or broken leaf springs or looking to upgrade, the Trojan Multi Leaf Spring Kit comes with everything you need to get you sorted for your next travel. Since leaf springs work in pairs, they typically wear out in pairs, so replacing both springs at the same time helps ensure proper suspension performance. This kit comes with 1 pair leaf springs, hangers, shackle bolts, slippers and galvanised U-bolt plates, plus 4x galvanised U-bolts.

Trojan Multi Leaf Spring Kit Features:

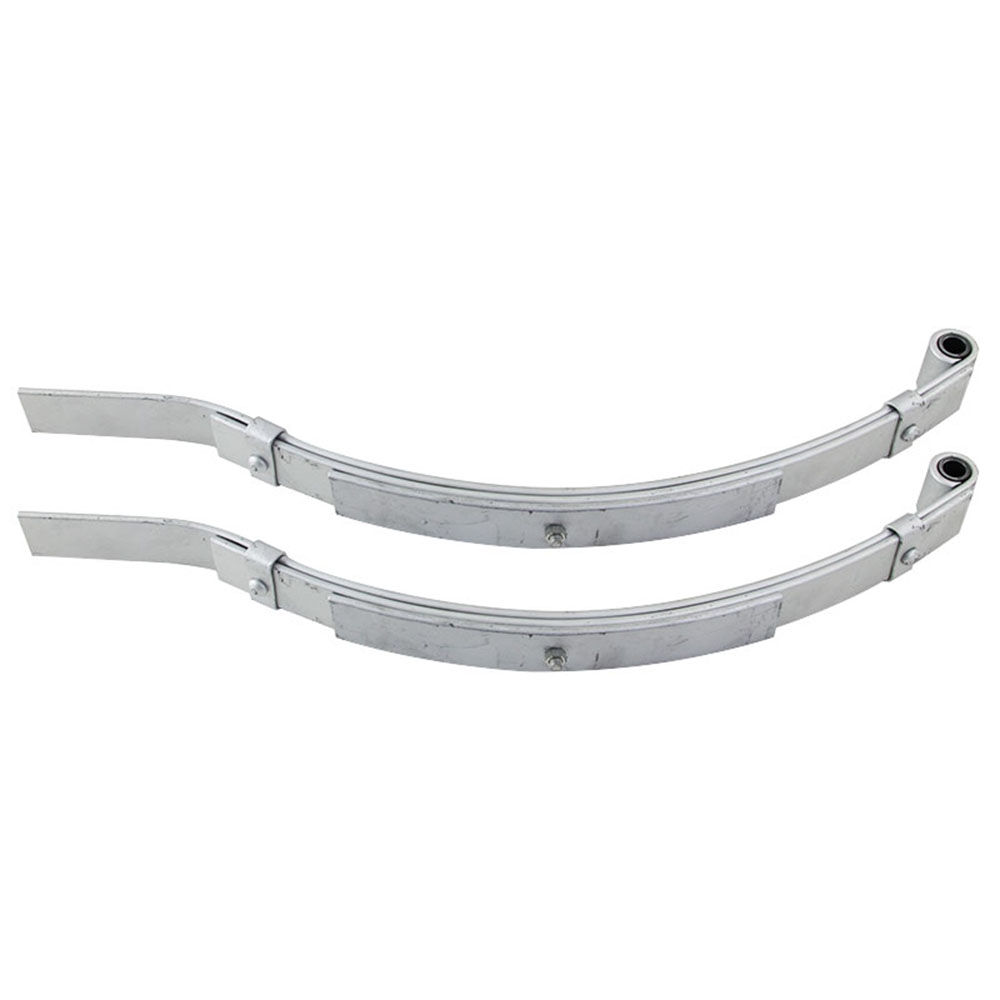

• 1 Pair leaf springs
• 1 Pair hangers

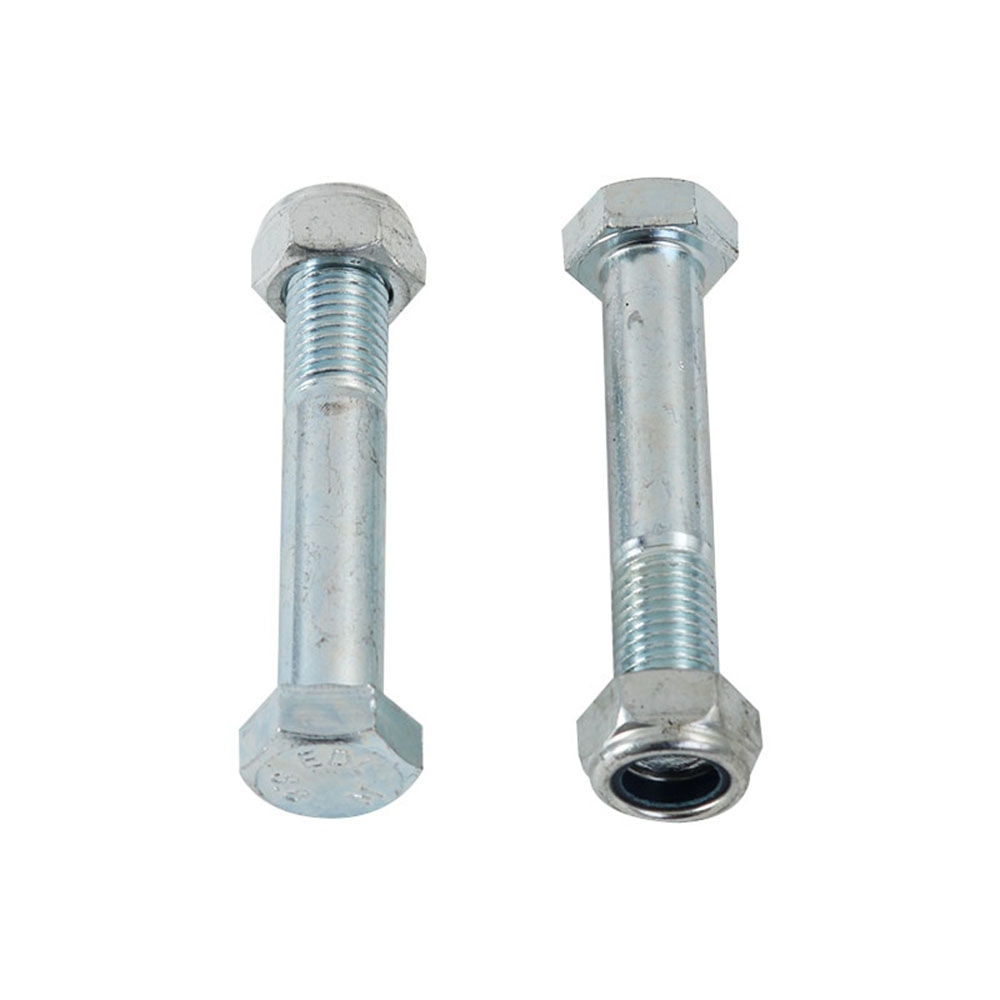

• 1 Pair shackle bolts
• 1 Pair slippers

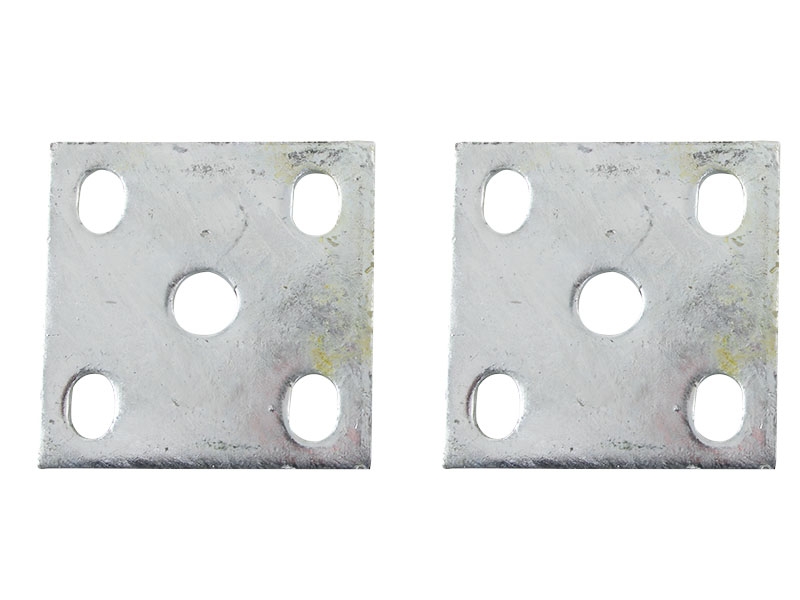

• 1 Pair U bolt plates - galvanised
• 4x U bolts - galvanised

Trojan Multi Leaf Spring Kit Specifications:

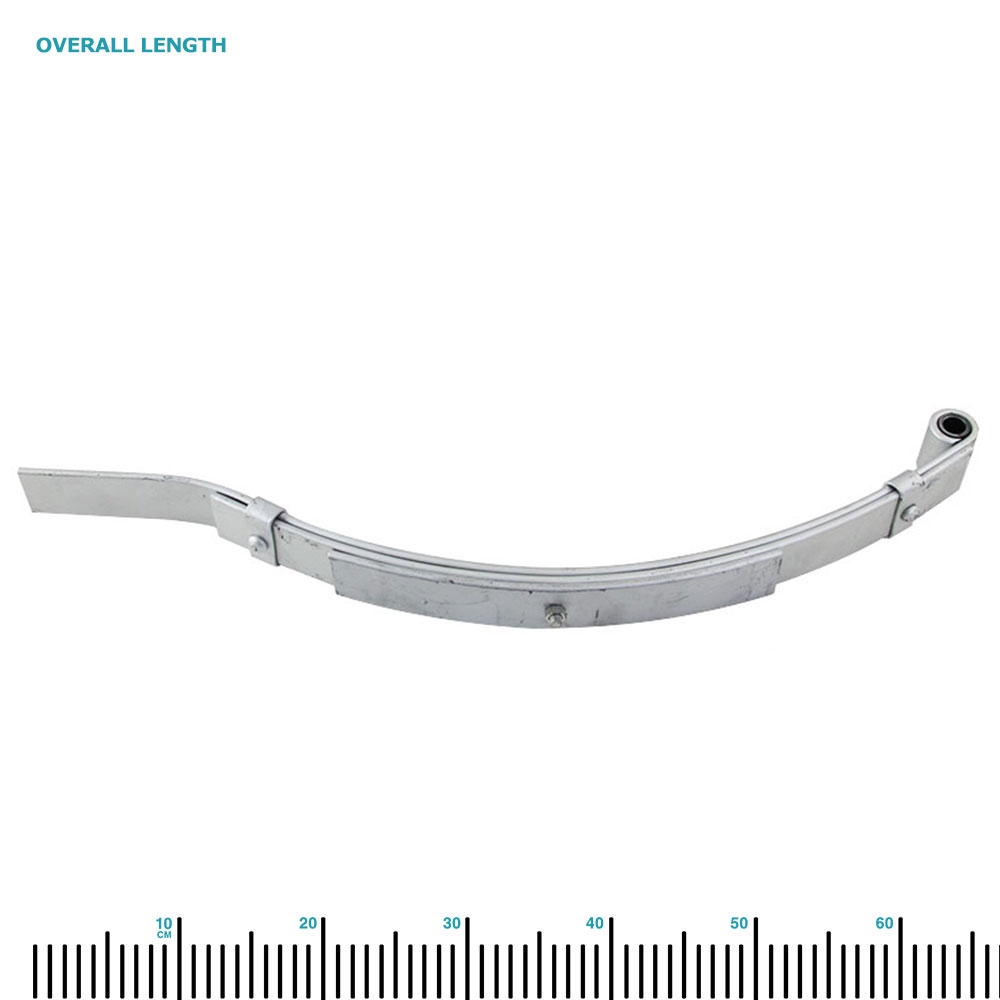

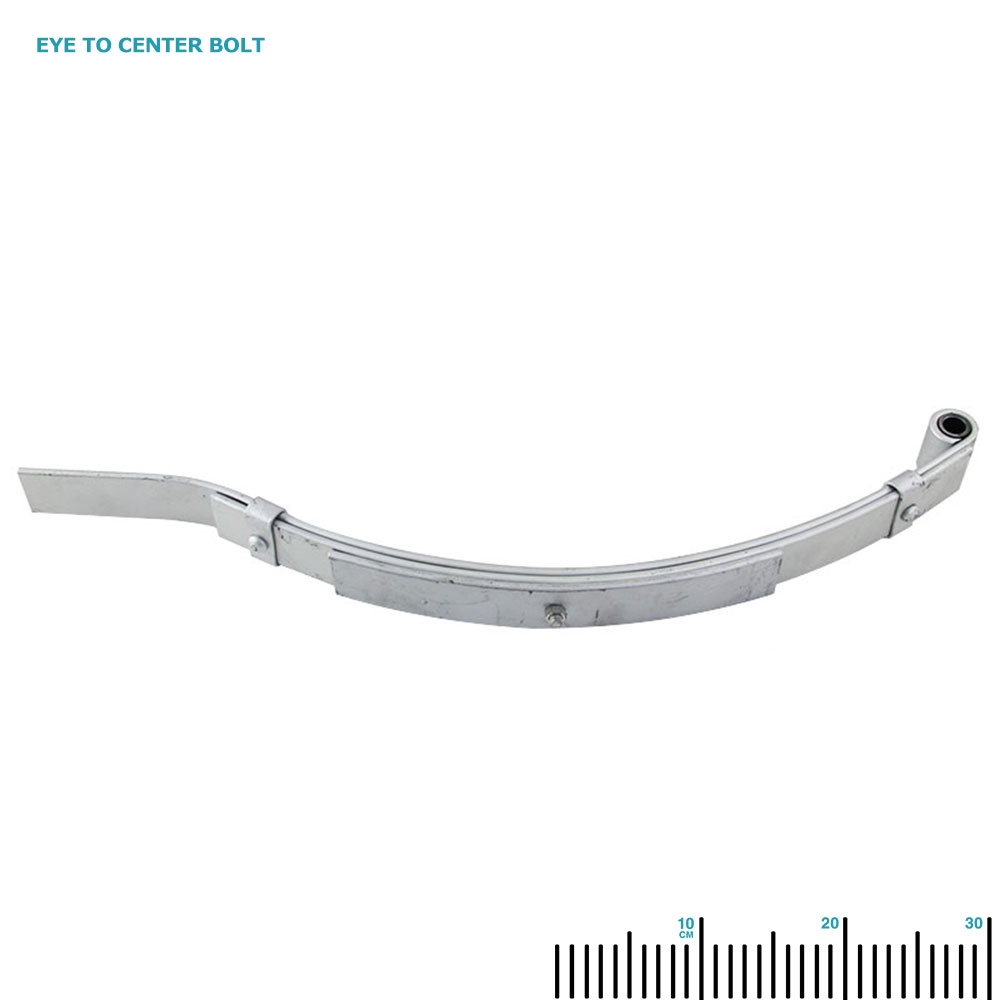

Part Number	Capacity per Pair	No. of leaves and sizes	O/A length / Eye to centre bolt	Eye Diameter
T266050	500kg	2 - 45 x 6mm	640 - 300mm	16mm
T266075	750kg	3 - 45 x 6mm	640 - 300mm	16mm
T266100	1000kg	4 - 45 x 6mm	640 - 300mm	16mm
T266150	1500kg	4 - 45 x 6mm	640 - 300mm	16mm
T266200	2000kg	5 - 45 x 8mm	640 - 300mm	16mm
